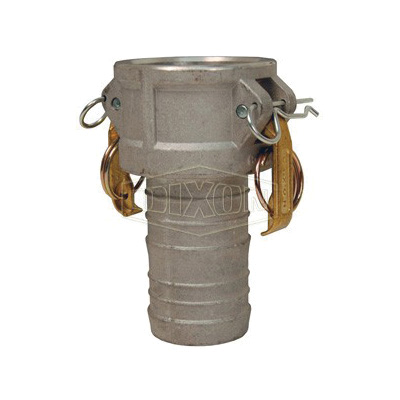

Dixon® G200-C-AL Type-C Cam and Groove Coupler, 2 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Import
CBPN:124064
MPN:G200-C-AL
Price:
$19.78Â /Â EA
DESCRIPTION
Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 2 in Nominal, Female Coupler x Hose Shank End Style, 3-15/16 in Length, 250 psi Pressure, Aluminum, 5-11/32 in H Dimensions, Import
Dixon® G200-C-AL Type-C Cam and Groove Coupler, 2 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Import
CBPN:124064
MPN:G200-C-AL
Price:
$19.78Â /Â EA
Â
DESCRIPTION
Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 2 in Nominal, Female Coupler x Hose Shank End Style, 3-15/16 in Length, 250 psi Pressure, Aluminum, 5-11/32 in H Dimensions, Import
Specifications
Brand: Dixon®
Weight:Â 1.07lbs
End Style:Â Female Coupler x Hose Shank
Length:Â 3-15/16 in
Material:Â Aluminum
Nominal Size:Â 2 in
Type:Â Type C
Fitting/Connector Type:Â Coupling
Pressure Rating:Â 250 psi
Dimensions:Â 5-11/32 in H
Manufacturer Name:Â Dixon Valve & Coupling
Application:Â Designed for use with liquids
Warranty:Â Limited
Domestic/Import:Â Import
Country of Origin:Â CN
Item Features
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Brass handle
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- http://www.youtube.com/watch?v=I4p-j-iVJF0&list=PL10BD55ADAF82DEDA&feature=share&index=11
