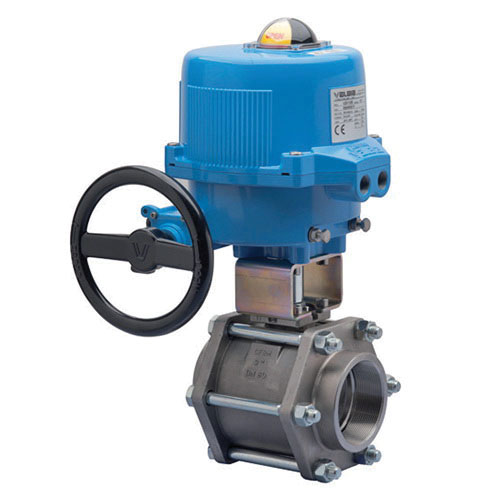

Bonomi North America RADIAMONT Ball Valve Package, 3-Piece 2-Way Bracket Mount, Series: 710085, 3 in Nominal, 12 VDC, FNPT, 250 psi Steam, -4 to 406 deg F, Full Port, Media: Steam, 3 in Orifice, Modulating Electric Actuator, 7.09 in Inlet to Outlet Length, 23.66 in Top to Inlet Center, 316 Stainless Steel Body, 304 Stainless Steel/PTFE Trim, FKM/PTFE/RTFE, 10.47 in L x 10.63 in W x 26.12 in H, Import

The M8E710190 series feature 25% carbon filled PTFE seats, a Stainless steel ball with relief hole for thermal cycling protection and pressure equalizing seats. This valve can withstand up to a 250 psi working steam pressure. The valve also meets NACE MR 0175 and MR0103. The valve is assembled with a bracket to help dissipate the heat from the actuator. The actuator housing is made from die cast aluminum with a polyester powder coating for maximum external protection from the elements either outdoors or indoors. The housing also includes captive cover bolts. Also standard actuator features include: 2 extra limit switches, dual voltage motors, dual ISO patterns, a square drive, a manual override, a dome position indicator, a torque limiter, 1/2 in conduit connections and a 75% duty cycle motor.
