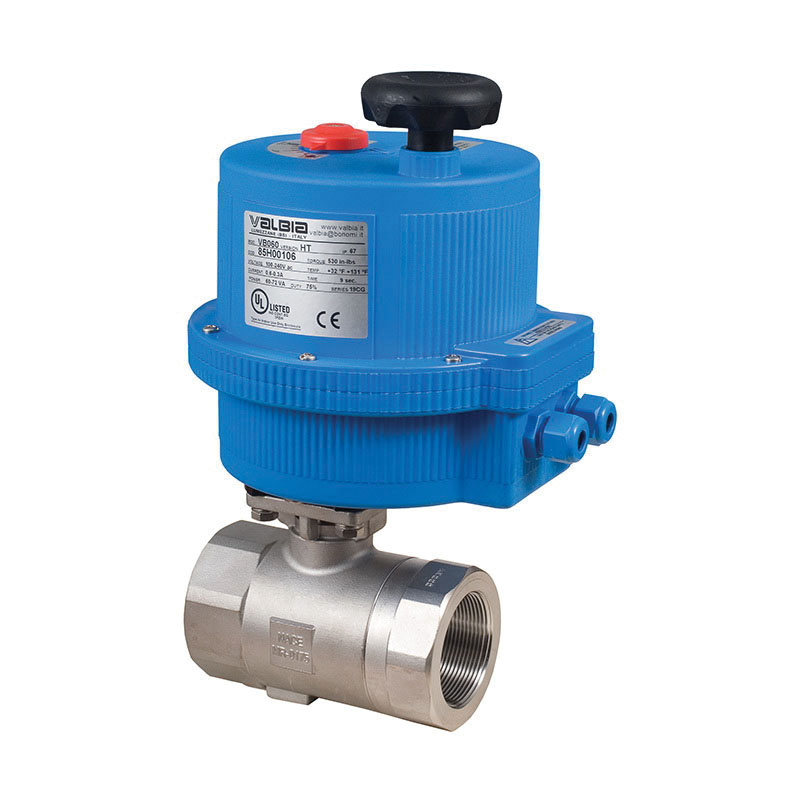

Bonomi 8E3100 Electric Actuated Ball Valve

Bonomi 8E3100-003-3/4 2-Way Direct Mount Electric Actuated Ball Valve, 3/4 in, FNPT, 316 Stainless Steel Body, 100 to 240 VAC, Import

CBPN:229278

MPN:8E3100-003-3/4

Price:
$657.82 / EA

DESCRIPTION

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 3100, 3/4 in Nominal, 100 to 240 VAC, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 0.69 in Orifice, On/Off Electric Actuator, 3.19 in Inlet to Outlet Length, 9.12 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/Delrin Trim, FKM/PTFE, 7.48 in L x 6.18 in W x 10.53 in H, Import

The Bonomi 8E3000 series electric actuated package features a 3000 psi stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and an investment cast CF8M body. The Valbia electric VB series actuator fits directly over the 3100 series square stem and ISO 5211 pad. The actuator also is standardly furnished with dual voltages, two extra limit switches, torque limiter, extended manual override, 75% duty cycle motor, in a IP67, NEMA 4, 4X techno polymer housing.

Bonomi 8E3100-003-3/4 2-Way Direct Mount Electric Actuated Ball Valve, 3/4 in, FNPT, 316 Stainless Steel Body, 100 to 240 VAC, Import

CBPN:229278

MPN:8E3100-003-3/4

Price:
$657.82 / EA

Bonomi Valve logo

DESCRIPTION

Bonomi North America Ball Valve Package, 2-Way Direct Mount, Series: 3100, 3/4 in Nominal, 100 to 240 VAC, FNPT, 3000 psi, -20 to 185 deg F, Full Port, 0.69 in Orifice, On/Off Electric Actuator, 3.19 in Inlet to Outlet Length, 9.12 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel/Delrin Trim, FKM/PTFE, 7.48 in L x 6.18 in W x 10.53 in H, Import

The Bonomi 8E3000 series electric actuated package features a 3000 psi stainless steel ball valve, with an ISO 5211 direct mount pad and square stem. The valve also features Delrin seats and an investment cast CF8M body. The Valbia electric VB series actuator fits directly over the 3100 series square stem and ISO 5211 pad. The actuator also is standardly furnished with dual voltages, two extra limit switches, torque limiter, extended manual override, 75% duty cycle motor, in a IP67, NEMA 4, 4X techno polymer housing.

Specifications

BrandBonomi North America
Weight4.3lbs
Actuator TypeOn/Off Electric
Body Material316 Stainless Steel
End StyleFNPT
Nominal Size3/4 in
Series3100
Temperature Rating-20 to 185 deg F
Type2-Way Direct Mount
Electrical Ratings100 to 240 VAC
Pressure Rating3000 psi
Dimensions7.48 in L x 6.18 in W x 10.53 in H
Orifice Size0.69 in
Port TypeFull
Softgoods MaterialFKM/PTFE
Trim Material316 Stainless Steel/Delrin
Inlet to Outlet Length3.19 in
Manufacturer NameBonomi North America
Top to Inlet Center9.12 in
Warranty1 year
Domestic/ImportImport
Country of OriginIT
Standards and ApprovalsASTM Grade CF8M Body,UL Listed

Item Features

  • Blow out proof stem, antistatic design
  • ISO 5211 mounting pad
  • Delrin ball seat
  • FKM O-ring
  • PTFE thrust washer and stem packing
  • 316 stainless steel stem
  • Valbia UL approved standard on/off plastic electric actuator
