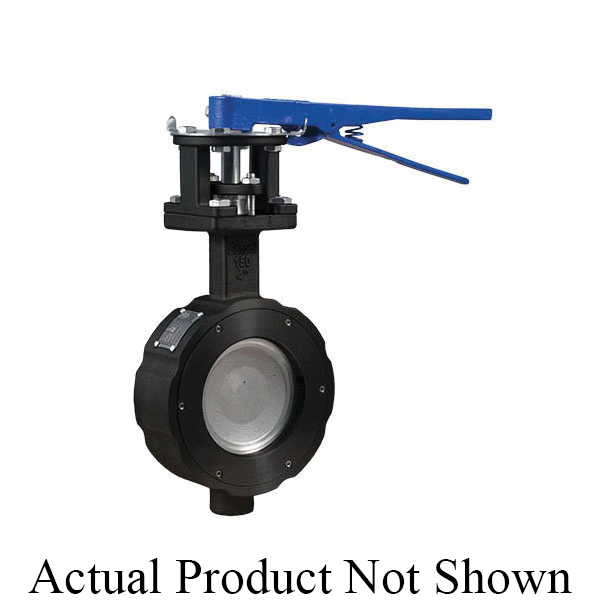

Bonomi 8300-2-1/2 High Performance Direct Mount Wafer Style Butterfly Valve, 2-1/2 in Nominal, Stainless Steel Disc, 300 lb, Carbon Steel Body, Lever Handle, Carbon-Filled PTFE Seat, Import
CBPN: 305251
MPN:8300-2-1/2
Price:
$607.99 / EA
DESCRIPTION
Bonomi North America Butterfly Valve, High Performance Direct Mount Wafer Style, Series: 8300, 2-1/2 in Nominal, 300 lb, Handle Actuator, 1.88 in Inlet to Outlet Length, Carbon Steel Body, Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/316 Stainless Steel (Pin) Stem & Pin Material, Carbon-Filled PTFE Seat, Import
Bonomi 8300-2-1/2 High Performance Direct Mount Wafer Style Butterfly Valve, 2-1/2 in Nominal, Stainless Steel Disc, 300 lb, Carbon Steel Body, Lever Handle, Carbon-Filled PTFE Seat, Import
CBPN: 305251
MPN:8300-2-1/2
Price:
$607.99 / EA
DESCRIPTION
Bonomi North America Butterfly Valve, High Performance Direct Mount Wafer Style, Series: 8300, 2-1/2 in Nominal, 300 lb, Handle Actuator, 1.88 in Inlet to Outlet Length, Carbon Steel Body, Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/316 Stainless Steel (Pin) Stem & Pin Material, Carbon-Filled PTFE Seat, Import
Specifications
Brand: Bonomi North America
Weight: 13.01 lbs
Nominal Size: 2-1/2 in
Type: High Performance Direct Mount Wafer Style
Body Material: Carbon Steel
Disc Material: Stainless Steel
Seat Material: Carbon-Filled PTFE
Actuator Type: Lever Handle
End Style: Wafer
Pressure Class: 300 lb
Inlet to Outlet Length: 1.88 in
Manufacturer Name: Bonomi North America
Series: 8300
Stem & Pin Material: 17-4PH Stainless Steel (Stem)/316 Stainless Steel (Pin)
Warranty: 1 Year
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: ANSI Specified | ASTM A216 Grade WCB Body | ASTM A351 Grade CF8M Disc | CSA Approved
Item Features
- ISO 5211 direct mounting pad/square stem
- Compact design, easy access to packing
- Replaceable seat design
- Multiple V-ring stem packing
- Reliable and consistent torques
- Carbon filled PTFE seat
- FKM O-ring
- Manually operated
