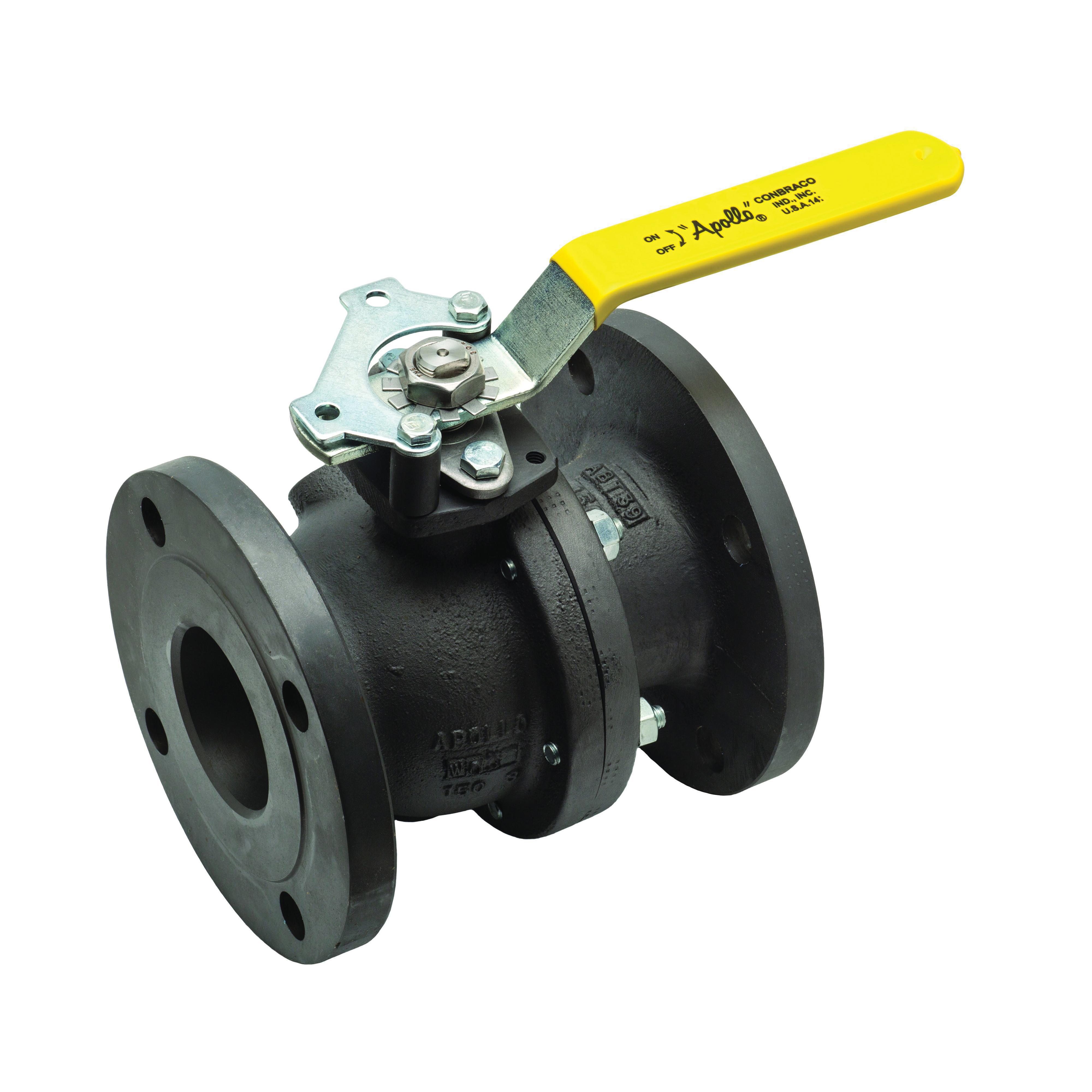

Apollo™ 88A10001 88A-100 Ball Valve, 3 in Nominal, Flanged End Style, 150 lb, Standard Port, PTFE Softgoods, Domestic
CBPN: 42461
UPC:670750909023
MPN:88A-100-01
Price:
$1245.67 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A10001, Ball Valve, Series: 88A-100, 3 in Nominal, Flanged End Style, 150 psi Pressure, 150 lb Pressure Class, Standard Port, Lever Operated Actuator, Carbon Steel Ball, 8 in Inlet to Outlet Length, 6.24 in Top to Inlet Center, RPTFE Trim, PTFE Softgoods, Domestic
Apollo™ 88A10001 88A-100 Ball Valve, 3 in Nominal, Flanged End Style, 150 lb, Standard Port, PTFE Softgoods, Domestic
CBPN: 42461
MPN:88A-100-01
UPC:670750909023
Price:
$1245.67 / EA
Prop 65:
DESCRIPTION
Apollo™ 88A10001, Ball Valve, Series: 88A-100, 3 in Nominal, Flanged End Style, 150 psi Pressure, 150 lb Pressure Class, Standard Port, Lever Operated Actuator, Carbon Steel Ball, 8 in Inlet to Outlet Length, 6.24 in Top to Inlet Center, RPTFE Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 44 lbs
Nominal Size: 3 in
End Style: ANSI 150 Flange
Pressure Class: 150 lb
Pressure Rating: 150 psi
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: Carbon Steel
Inlet to Outlet Length: 8 in
Manufacturer Name: Apollo Conbraco
Series: 88A-100
Top to Inlet Center: 6.24 in
Trim Material: RPTFE
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 WCB | ASTM A08 Type 1215 Stem | ASTM A08 Ball | ASME Class 150RF | ASME B16.33/B16.38 | NACE MR0175 (2000)/MR0103 (2003) | PROP65: Cancer and Reproductive Harm
Item Features
- 2-position locking device (valves 6 in full port, 8 in standard port and smaller)
- Chevron style adjustable stem seal
- Slot vented ball for thermal expansion
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast brass for bleed/drain port
- Vacuum service to 29 in Hg
- 302 or 304 stainless steel gland plate
- Stainless steel grounding spring
Apollo 88A-100-01 Spare Parts
CBPN:
64306
MPN:
87A02901
Check Availability
Price:
$166.38 / EA
