Apollo™ 4ALF628C2ST

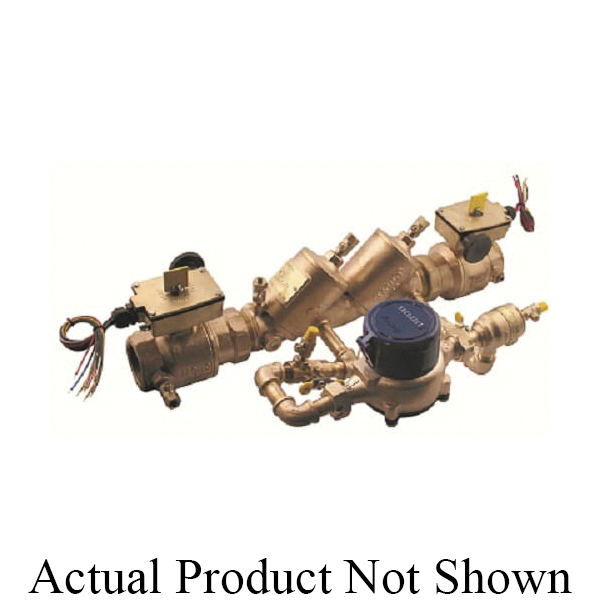

Apollo™ 4ALF628C2ST DCDA2LF4A Backflow Preventer With Slow-Close Ball Valve and Bypass Line On Right Side, 2 in Nominal, Bronze Body, Dual Check

CBPN: 246471

UPC:670750904240

MPN:4ALF628C2ST

Apollo™ 4ALF628C2ST has been discontinued by the manufacturer.
Prop 65:

DESCRIPTION

Apollo™ Backflow Preventer, Series: DCDA2LF4A, 2 in Nominal, 175 psi, 33 to 140 deg F, Dual Check Backflow, Media: Water, Bronze Body, 8 in H

The Apollo™ Model DCDA24A or DCDA2LF4A Lead Free 1-1/2 in to 2 in Double Check Detector Assembly consists of a mainline double check valve with a Type 2 bypass consisting of a single check (SCV) and meter bypassing the mainline second check to prevent backflow while accurately measuring all flows up to 2 gpm while the mainline 2nd check remains closed. The pressure drop across the assembly shall be documented by independent approval agencies. The assembly shall prevent contamination of the potable water supply due to back-siphonage or backpressure from substances that are non-health hazards. This Made in America assembly features Apollo™ UL® Listed, slow-close, full open port, gear operated ball valves with integral tamper switches and carries the five-year Apollo™ factory warranty.

Apollo™ 4ALF628C2ST DCDA2LF4A Backflow Preventer With Slow-Close Ball Valve and Bypass Line On Right Side, 2 in Nominal, Bronze Body, Dual Check

CBPN: 246471

MPN:4ALF628C2ST

UPC:670750904240

Apollo™ 4ALF628C2ST has been discontinued by the manufacturer.

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Backflow Preventer, Series: DCDA2LF4A, 2 in Nominal, 175 psi, 33 to 140 deg F, Dual Check Backflow, Media: Water, Bronze Body, 8 in H

The Apollo™ Model DCDA24A or DCDA2LF4A Lead Free 1-1/2 in to 2 in Double Check Detector Assembly consists of a mainline double check valve with a Type 2 bypass consisting of a single check (SCV) and meter bypassing the mainline second check to prevent backflow while accurately measuring all flows up to 2 gpm while the mainline 2nd check remains closed. The pressure drop across the assembly shall be documented by independent approval agencies. The assembly shall prevent contamination of the potable water supply due to back-siphonage or backpressure from substances that are non-health hazards. This Made in America assembly features Apollo™ UL® Listed, slow-close, full open port, gear operated ball valves with integral tamper switches and carries the five-year Apollo™ factory warranty.

Specifications

Brand: Apollo™
Weight: 51.3 lbs
Nominal Size: 2 in
Body Material: Bronze
Backflow Type: Dual Check
Dimensions: 8 in H
Manufacturer Name: Apollo Conbraco
Media: Water
Pressure Rating: 175 psi
Series: DCDA2LF4A
Temperature Rating: 33 to 140 deg F
Warranty: 5 years
Standards and Approvals: Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California | ASSE 1048 | UL Listed | cUL Listed | US FCCCHR | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Item Features

  • Low pressure loss documented by independent approval agencies
  • Easily removable modular check valve cartridge
  • Captured stainless steel springs
  • Top-mounted test cocks for easytesting
  • Chloramine-resistant elastomers
  • Short lay-length for small spaces
  • Pre-wired tamper (supervisory) switches
  • Lead free - The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average, complies with Federal Public Law 111-380, ANSI 3rd party approved and listed
  • Meter type - cfm
