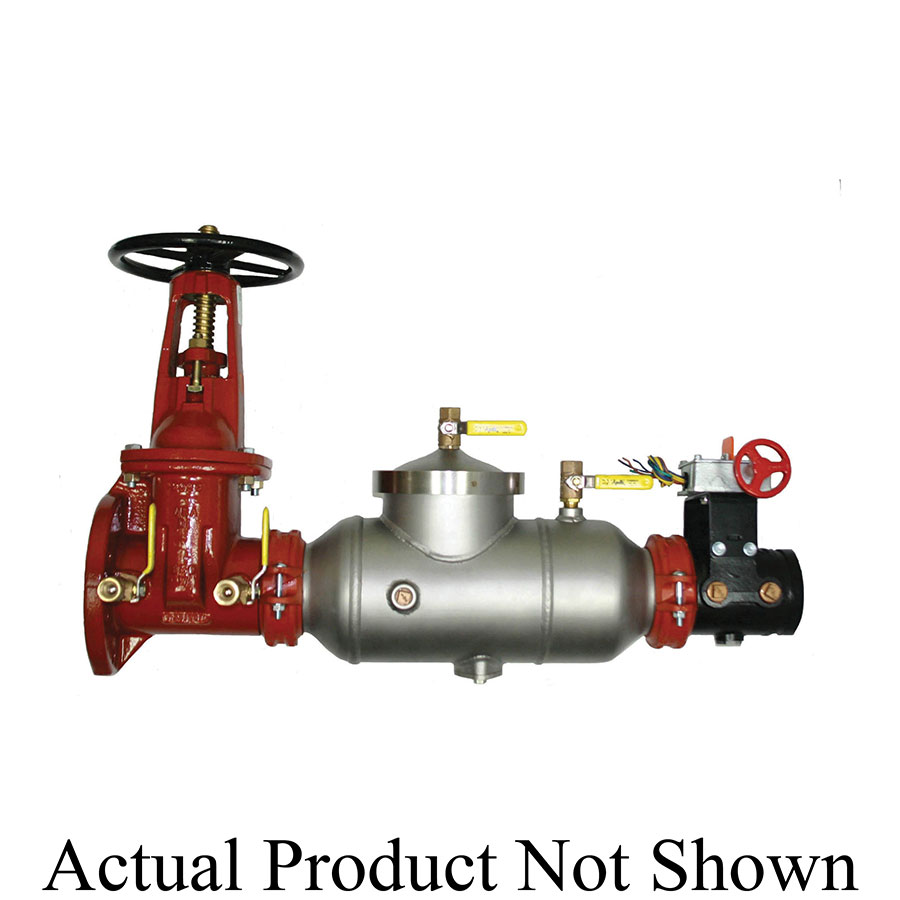

Apollo™ 4ALF10A09 DCLF4A Standard Backflow Preventer, 4 in Nominal, Monitored Butterfly Valve Groove End Style, 304 Stainless Steel Body, Dual Check, Domestic
CBPN:245715
UPC:670750549014
MPN:4ALF10A09
Price:
$2926.81 / ea
Availability Information
Prop 65:
DESCRIPTION
Apollo™ Backflow Preventer, Standard, Series: DCLF4A, 4 in Nominal, Monitored Butterfly Valve Groove, 175 psi, 33 to 140 deg F, Dual Check Backflow, Media: Water, 304 Stainless Steel Body, Domestic
The 2-1/2 in to 12 in Backflow Preventer shall be an Apollo™ Model DCLF 4A Lead Free Double Check Valve. The assembly shall be manufactured in America and carry a 5-year Apollo™ factory warranty. The TriForce™ center stem guided check valves shall feature reversible silicone rubber seat discs. The check valves shall be held in place by stainless steel snap-in retainers (2-1/2 in to 6 in) or stainless steel studs & nuts (8 in to 12 in). Access to the check valves shall be by an Apollo™ quick-connect stainless steel coupling (2-1/2 in to 6 in) or grooved couplings (8 in to 12 in). The bodies shall be domestic stainless steel in 2-1/2 in to 8 in sizes and FDA epoxy coated ductile iron in 10 in & 12 in sizes. The lead free Apollo™ domestic ball valve test cocks shall have stainless steel handles. The assembly shall prevent contamination of the potable water supply due to back-siphonage or backpressure from substances that are non-health hazards. The pressure drop across the assembly shall be documented by an independent laboratory.
Apollo™ 4ALF10A09 DCLF4A Standard Backflow Preventer, 4 in Nominal, Monitored Butterfly Valve Groove End Style, 304 Stainless Steel Body, Dual Check, Domestic
CBPN:245715
MPN:4ALF10A09
UPC:670750549014
Price:
$2926.81 / ea
Availability Information
Prop 65:
DESCRIPTION
Apollo™ Backflow Preventer, Standard, Series: DCLF4A, 4 in Nominal, Monitored Butterfly Valve Groove, 175 psi, 33 to 140 deg F, Dual Check Backflow, Media: Water, 304 Stainless Steel Body, Domestic
The 2-1/2 in to 12 in Backflow Preventer shall be an Apollo™ Model DCLF 4A Lead Free Double Check Valve. The assembly shall be manufactured in America and carry a 5-year Apollo™ factory warranty. The TriForce™ center stem guided check valves shall feature reversible silicone rubber seat discs. The check valves shall be held in place by stainless steel snap-in retainers (2-1/2 in to 6 in) or stainless steel studs & nuts (8 in to 12 in). Access to the check valves shall be by an Apollo™ quick-connect stainless steel coupling (2-1/2 in to 6 in) or grooved couplings (8 in to 12 in). The bodies shall be domestic stainless steel in 2-1/2 in to 8 in sizes and FDA epoxy coated ductile iron in 10 in & 12 in sizes. The lead free Apollo™ domestic ball valve test cocks shall have stainless steel handles. The assembly shall prevent contamination of the potable water supply due to back-siphonage or backpressure from substances that are non-health hazards. The pressure drop across the assembly shall be documented by an independent laboratory.
Specifications
Brand: Apollo™
Body Material: 304 Stainless Steel
Domestic/Import: Domestic
End Style: Monitored Butterfly Valve Groove
Nominal Size: 4 in
Pressure Rating: 175 psi
Series: DCLF4A
Temperature Rating: 33 to 140 deg F
Type: Standard
Media: Water
Backflow Type: Dual Check
Item Features
- Easy maintenance no special tools required
- Low pressure loss as documented by an independent laboratory
- Center-stem guided TriForce™ check valves
- Approved for horizontal and vertical up flow
- Chloramine-resistant elastomers
- Snap-in check retainers
- Lead free - The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average, complies with Federal Public Law 111-380, ANSI 3rd party approved and listed
