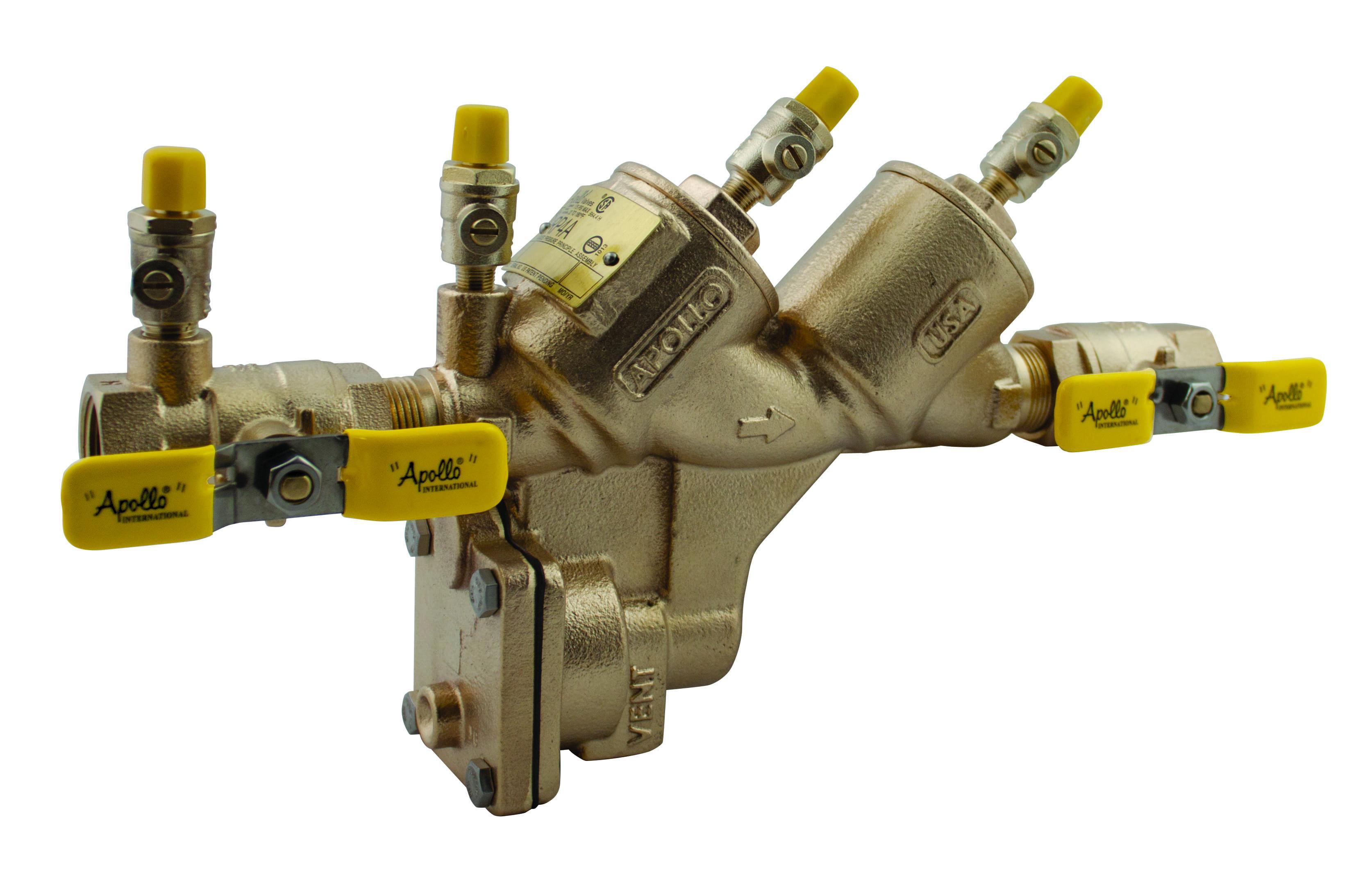

Apollo™ 4ALF204A2F 4ALF-200 LBF Standard Backflow Preventer, 3/4 in Nominal, Shut-Off Ball Valve, Bronze Body, Reduced Pressure, Domestic
CBPN:201060
UPC:670750111013
MPN:4ALF204A2F
Price:
$605.27 / EA
Prop 65:
DESCRIPTION
Apollo™, 4ALF204A2F, Backflow Preventer, Standard, Series: 4ALF-200 LBF, 3/4 in Nominal, 175 psi Pressure, 33 to 180 deg F, Shut-Off Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Bronze Body, 7-3/8 in H Dimensions, Domestic
The Apollo™ Model RP4A and RPLF4A Lead Free Reduced Pressure Backflow Preventer A Series provide maximum protection of the potable water supply due to back-siphonage or backpressure from substances that are hazardous to the potable water supply. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This Made in America assembly features ball valve shutoffs with stainless steel handles and nuts as standard and carries the five-year Apollo™ factory warranty.
Apollo™ 4ALF204A2F 4ALF-200 LBF Standard Backflow Preventer, 3/4 in Nominal, Shut-Off Ball Valve, Bronze Body, Reduced Pressure, Domestic
CBPN:201060
MPN:4ALF204A2F
UPC:670750111013
Price:
$605.27 / EA
Prop 65:
DESCRIPTION
Apollo™, 4ALF204A2F, Backflow Preventer, Standard, Series: 4ALF-200 LBF, 3/4 in Nominal, 175 psi Pressure, 33 to 180 deg F, Shut-Off Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Bronze Body, 7-3/8 in H Dimensions, Domestic
The Apollo™ Model RP4A and RPLF4A Lead Free Reduced Pressure Backflow Preventer A Series provide maximum protection of the potable water supply due to back-siphonage or backpressure from substances that are hazardous to the potable water supply. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This Made in America assembly features ball valve shutoffs with stainless steel handles and nuts as standard and carries the five-year Apollo™ factory warranty.
Specifications
Brand: Apollo™
Weight: 9.6lbs
Body Material: Bronze
Nominal Size: 3/4 in
Series: 4ALF-200 LBF
Temperature Rating: 33 to 180 deg F
Type: Standard
Pressure Rating: 175 psi
Dimensions: 7-3/8 in H
Ball Valve/Gate Valve Type: Shut-Off Ball Valve
Backflow Type: Reduced Pressure
Manufacturer Name: Apollo Conbraco
Includes: Modular Relief Valve, SAE Test Cocks
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California | ASSE 1013 | CSA B64.4 | IAPMO Certified | UNS C84400 Valve Body | PROP65: Cancer and Reproductive Harm
Item Features
- Low pressure loss documented by independent approval agencies
- Easily removable modular check valve cartridge
- Captured stainless steel springs
- Ball valve shut-off with SS handles and nuts standard
- Top mounted test cocks for easy testing
- Modular relief valve
- Chloramine-resistant elastomers
- No special tools required
- Horizontal installation
- Bronze C84400 or C89836 lead free body/caps
- Bronze C84400 or C87800 lead free BV shut-off, test cocks
- 300 series stainless steel springs
- Chloramine-resistant silicone seat discs
- Chloramine-resistant EPDM o-rings
