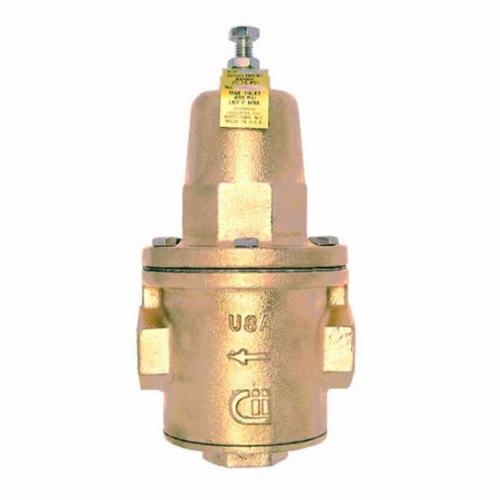

Apollo™ 36H-208-01 Direct Acting Pressure Reducing Valve, 2 in Nominal, FNPT End Style, 25 to 75 psig Pressure, Bronze Body, Domestic
CBPN:119896
UPC:670750815263
MPN:36H20801
Price:
$2252.41 / EA
Prop 65:
DESCRIPTION
Apollo™, 36H20801, Pressure Reducing Valve, Direct Acting, Series: 36H, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, Bronze Body, EPDM Seat Disc/FDA Nitrile O-Ring Softgoods, 16 in L x 16 in H Dimensions, Domestic
Apollo® PRH (36H Series) pressure reducing valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.
Apollo™ 36H-208-01 Direct Acting Pressure Reducing Valve, 2 in Nominal, FNPT End Style, 25 to 75 psig Pressure, Bronze Body, Domestic
CBPN:119896
MPN:36H20801
UPC:670750815263
Price:
$2252.41 / EA
Prop 65:
DESCRIPTION
Apollo™, 36H20801, Pressure Reducing Valve, Direct Acting, Series: 36H, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, Bronze Body, EPDM Seat Disc/FDA Nitrile O-Ring Softgoods, 16 in L x 16 in H Dimensions, Domestic
Apollo® PRH (36H Series) pressure reducing valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.
Specifications
Brand: Apollo™
Weight: 40lbs
Body Material: Bronze
End Style: FNPT
Nominal Size: 2 in
Series: 36H
Temperature Rating: 33 to 180 deg F
Type: Direct Acting
Pressure Range: 25 to 75 psi
Dimensions: 16 in L x 16 in H
Media: Water
Softgoods Material: EPDM Seat Disc/FDA Nitrile O-Ring
Manufacturer Name: Apollo Conbraco
Application: designed for commercial, industrial, and institutional applications
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI B16.24 | ASSE 1003 | CSA B356 Body/Yoke | FDA Approved | IAMPO and city of Los Angeles | NSF/ANSI 372 Lead-Free | UPC Listed | PROP65: Cancer and Reproductive Harm
Item Features
- 0- Standard
- Sealed spring cage for vault installation
- Ultra high flow capacity
- Internal thermal expansion by pass
- Local code approvals
- 50 psi standard factory setting
- Three spring ranges cover 10 to 125 psi
- Stainless steel bolts and spring
- In-line strainer option
- Maximum inlet supply pressure up to 400 psig
