WATTS® 0391009

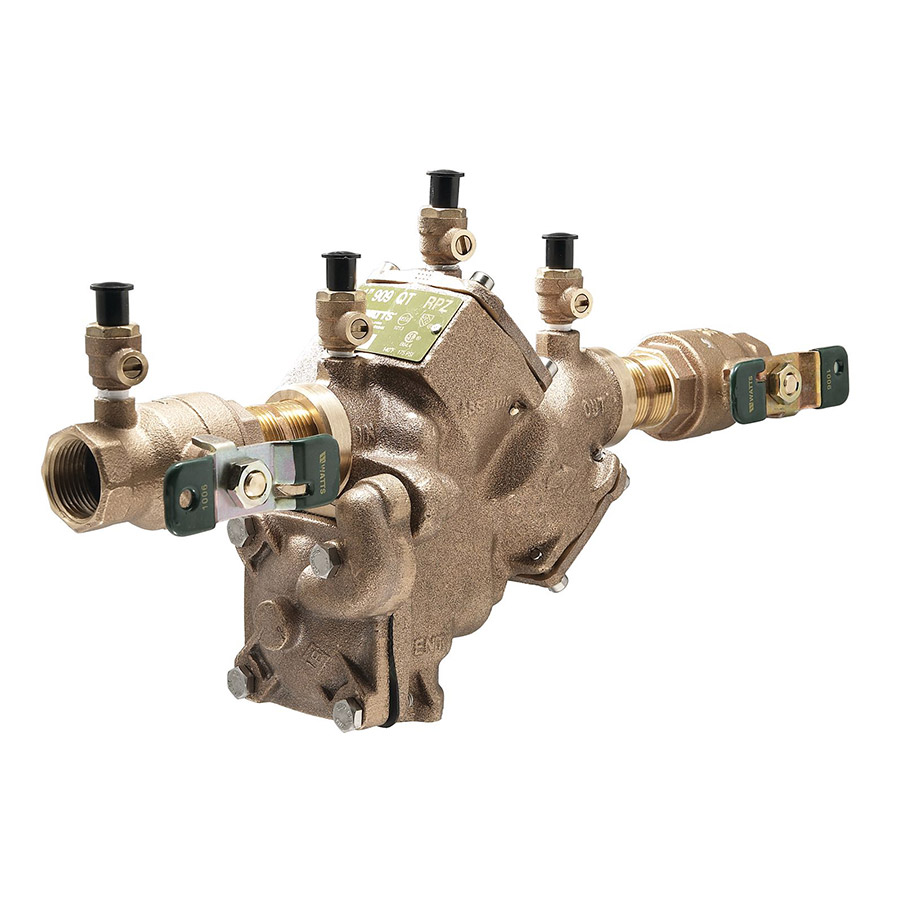

WATTS® 0391009 LF909-QT Reduced Pressure Zone Assembly, 1 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Domestic

CBPN:167093

UPC:098268051186

MPN:0391009

Price:
$2416.40 / EA
Prop 65:

DESCRIPTION

WATTS® Reduced Pressure Zone Assembly, Series: LF909-QT, 1 in Nominal, FNPT, 175 psi, 33 to 110 deg F, Quarter-Turn Ball Valve, Full Port, Cast Copper Silicon Alloy Body, 3-7/8 in W, Domestic

Series LF909 Lead Free Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon age and or backpressure. It consists of a Lead Free Cast Copper Silicon Alloy body construction, bronze ball valve shutoffs and bronze test cocks. Series LF909 features a air-in/water-out design principle for protection during emergency combined back siphon age and backpressure conditions. It is ideal for health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.

WATTS® 0391009 LF909-QT Reduced Pressure Zone Assembly, 1 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Domestic

CBPN:167093

MPN:0391009

UPC:098268051186

Price:
$2416.40 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Reduced Pressure Zone Assembly, Series: LF909-QT, 1 in Nominal, FNPT, 175 psi, 33 to 110 deg F, Quarter-Turn Ball Valve, Full Port, Cast Copper Silicon Alloy Body, 3-7/8 in W, Domestic

Series LF909 Lead Free Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon age and or backpressure. It consists of a Lead Free Cast Copper Silicon Alloy body construction, bronze ball valve shutoffs and bronze test cocks. Series LF909 features a air-in/water-out design principle for protection during emergency combined back siphon age and backpressure conditions. It is ideal for health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.

Specifications

BrandWATTS®
Weight17 lbs
Nominal Size1 in
End StyleFNPT
Ball Valve/Gate Valve TypeQuarter-Turn Ball Valve
Body MaterialCast Copper Silicon Alloy
Dimensions3-7/8 in W
Manufacturer NameWatts Water Technologies
Port TypeFull
Pressure Rating175 psi
SeriesLF909, LF909-QT
Temperature Rating33 to 110 deg F
Includes(2) Tightly Closing Shut-Off Valves, Test Cocks and Protective Strainer
ApplicationHealth Hazard
Warranty1 year Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsApproved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California | ASSE 1013 | AWWA C511-92 | CSA B64.4 | IAPMO Listed | SBCCI Listed | USC Manual Section 10 | UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency condition
  • Quarter-turn ball valves with tee handles
  • Single access cover
  • Top mounted test cock
  • No special tools are required for servicing
  • Modular compact design
  • Replaceable seats
  • Compact for easy of installation
  • Horizontal or vertical (up or down) installation on limited sizes only
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
