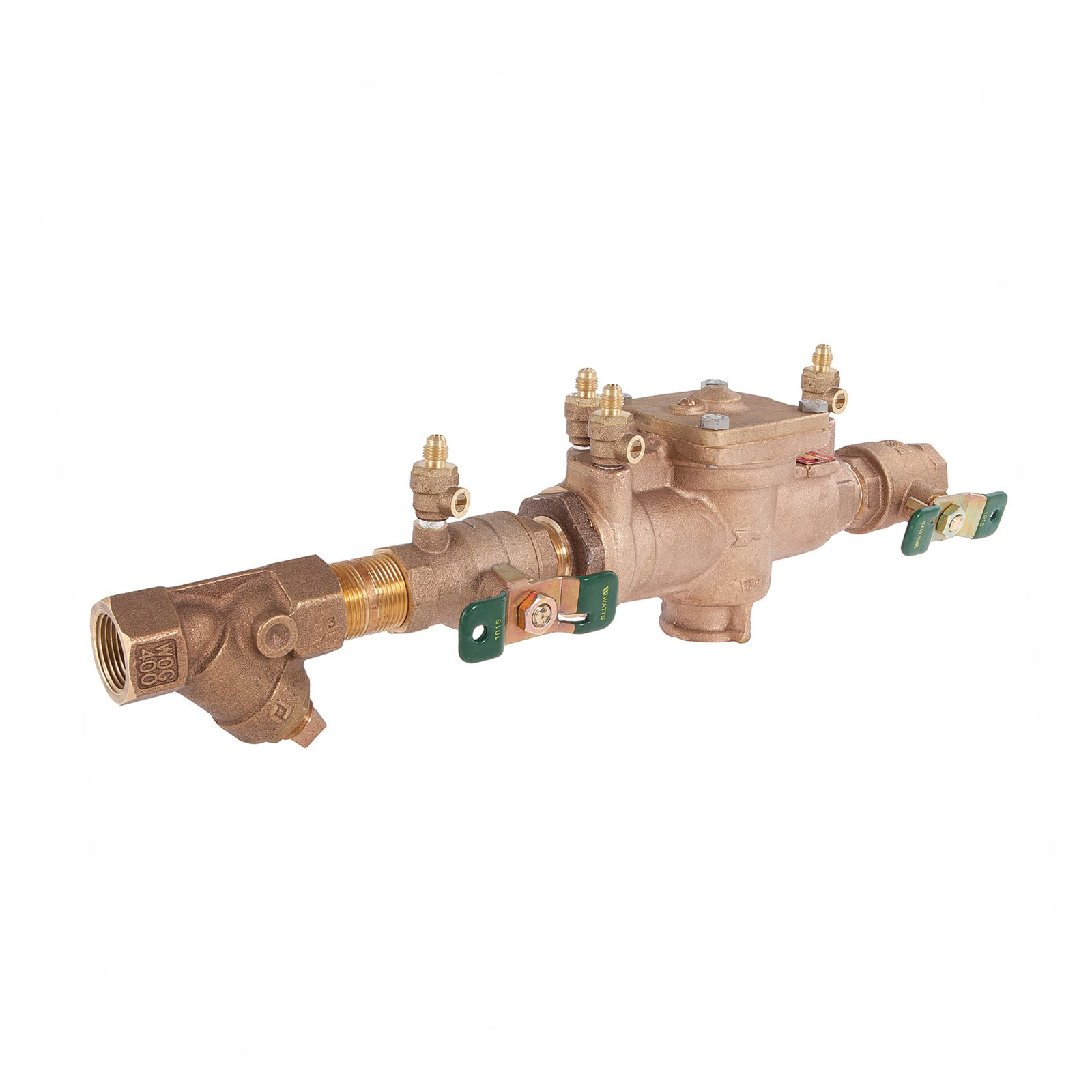

WATTS® 0063021 009M2-QT-S Reduced Pressure Zone Assembly, 1 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Bronze Body, Domestic
CBPN: 15586
UPC:098268647532
MPN:0063021
DESCRIPTION
WATTS® Reduced Pressure Zone Assembly, Series: 009M2-QT-S, 1 in Nominal, NPT, 175 psi, 33 to 180 deg F, Quarter-Turn Ball Valve, Full Port, Bronze Body, 5-1/2 in H, Domestic
Series 009 Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon age and or backpressure. It consists of bronze body construction (1/4 to 2 in, 8 to 50 mm) or FDA approved epoxy coated cast iron (2-1/2 to 3 in, 65 to 80 mm), two, in-line independent check valves, replaceable check seats with an intermediate relief valve and ball valve test cocks. Series 009 is ideal for protection of health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.
WATTS® 0063021 009M2-QT-S Reduced Pressure Zone Assembly, 1 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Bronze Body, Domestic
CBPN: 15586
MPN:0063021
UPC:098268647532
DESCRIPTION
WATTS® Reduced Pressure Zone Assembly, Series: 009M2-QT-S, 1 in Nominal, NPT, 175 psi, 33 to 180 deg F, Quarter-Turn Ball Valve, Full Port, Bronze Body, 5-1/2 in H, Domestic
Series 009 Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon age and or backpressure. It consists of bronze body construction (1/4 to 2 in, 8 to 50 mm) or FDA approved epoxy coated cast iron (2-1/2 to 3 in, 65 to 80 mm), two, in-line independent check valves, replaceable check seats with an intermediate relief valve and ball valve test cocks. Series 009 is ideal for protection of health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.
Specifications
Item Features
- Quarter-turn full port resilient seated ball valve shutoffs
- Single access cover and modular check construction for easy of maintenance
- Top entry all internals immediately accessible
- Captured spring assemblies for safety
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Bronze body construction for durability
- Large body passages provides low pressure drop
- Compact space saving design
- Top mounted screw driver slotted ball valve test cocks
Standards
Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ASSE 1013|AWWA C511-92|CSA B64.4|IAPMO 1563|UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

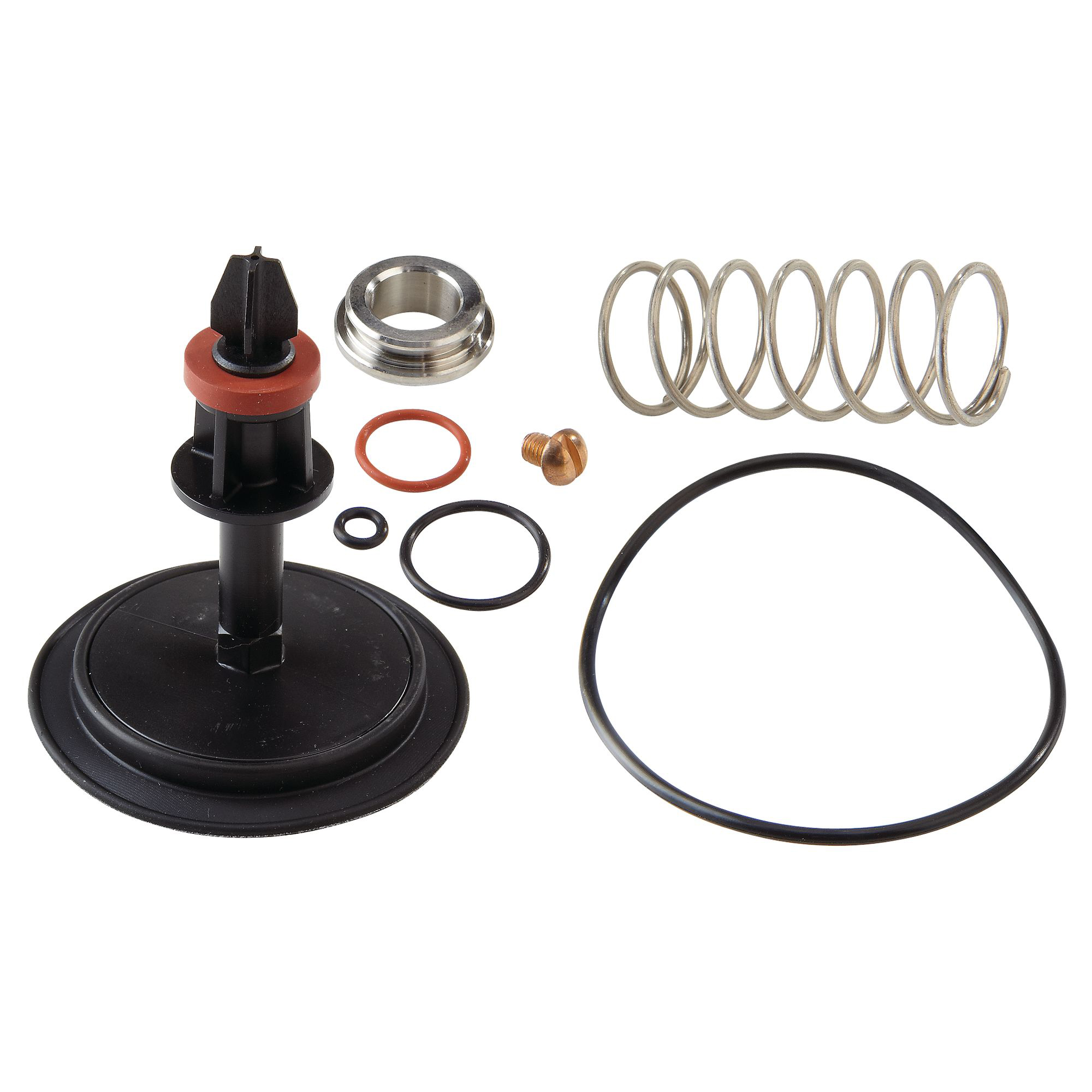

Watts 0063021 Spare Parts
CBPN:
48007
MPN:
0887785
