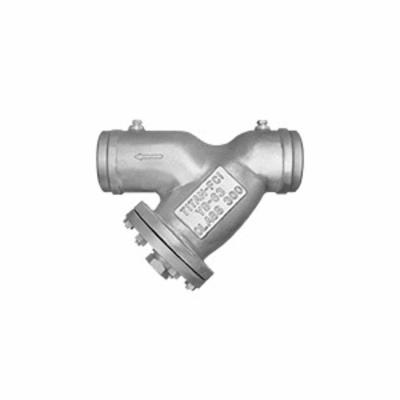

Titan® YS63S0500 YS63-SS Wye Strainer, 5 in Nominal, 16-3/8 in OAL, 300#, Butt Weld Connection
CBPN: 250793
MPN:YS63S0500
Price:
$5119.10 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS63-SS, 5 in Nominal, 16-3/8 in Overall Length, 300#, Butt Weld Connection, 2 in NPT Blow-Off, Stainless Steel Body, Epoxy Painted, CF8M Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS63S0500 YS63-SS Wye Strainer, 5 in Nominal, 16-3/8 in OAL, 300#, Butt Weld Connection
CBPN: 250793
MPN:YS63S0500
Price:
$5119.10 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS63-SS, 5 in Nominal, 16-3/8 in Overall Length, 300#, Butt Weld Connection, 2 in NPT Blow-Off, Stainless Steel Body, Epoxy Painted, CF8M Grade
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 73.5 lbs
Nominal Size: 5 in
Body Material: Stainless Steel
Connection Type: Butt Weld
Pressure Class: 300 lb
Overall Length: 16-3/8 in
Blow-Off Size: 2 in NPT
Finish: Epoxy Painted
Grade: CF8M
Manufacturer Name: Titan Flow Control
Series: YS63-SS
Application: Chemical, Food and Pharmaceutical Industries
Warranty: 1 Year
Standards and Approvals: ANSI Class 300 | ASME/ANSI B16.25 | ASTM A-351 Grade CF8M Body
Item Features
- Large straining capacity: With its large body and sizeable straining element, the YS63 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Self-cleaning capability: With a tapped NPT blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
- Epoxy painted: Carbon steel units are epoxy painted to help resist rust and corrosion
