ThermOmegaTech HCX Brass Washdown Station

ThermOmegaTech® 377-610030-150 HCX Hot/Cold Water Washdown Station With SmartFlow, 6-1/2 in Center, Domestic

CBPN:255097

MPN:377-610030-150

Price:
$1826.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Washdown Station, Hot/Cold Water, Series: HCX, 6-1/2 in Center Distance, 3/4 in MNPT Swivel x 1/2 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 21.1 in L x 8.5 in W x 19.1 in H Dimensions, Domestic

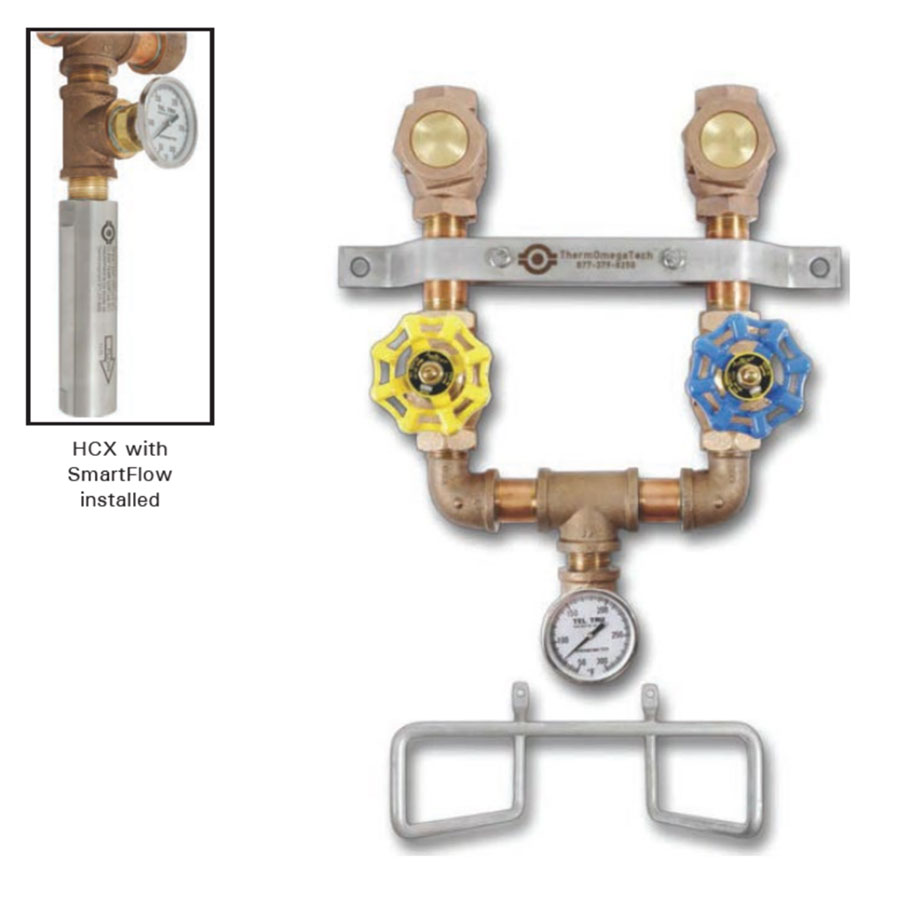

The HCX is a hot and cold water mixing Washdown Station designed to provide a high-temperature wash for production facilities that do not have an existing steam supply readily available. The HCX station uses individual globe valves to mix hot and cold water to the desired proportion with the outlet temperature clearly displayed on the integrated, easy to read temperature gauge. The HCX station is available in stainless steel or brass/bronze construction and can be ordered with the SmartFlow safety shutoff valve which will reduce flow should the outlet temperature exceed the factory set point and shut down 10 deg F above that with a minimal amount of leakage.

ThermOmegaTech® 377-610030-150 HCX Hot/Cold Water Washdown Station With SmartFlow, 6-1/2 in Center, Domestic

CBPN:255097

MPN:377-610030-150

Price:
$1826.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Washdown Station, Hot/Cold Water, Series: HCX, 6-1/2 in Center Distance, 3/4 in MNPT Swivel x 1/2 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 21.1 in L x 8.5 in W x 19.1 in H Dimensions, Domestic

The HCX is a hot and cold water mixing Washdown Station designed to provide a high-temperature wash for production facilities that do not have an existing steam supply readily available. The HCX station uses individual globe valves to mix hot and cold water to the desired proportion with the outlet temperature clearly displayed on the integrated, easy to read temperature gauge. The HCX station is available in stainless steel or brass/bronze construction and can be ordered with the SmartFlow safety shutoff valve which will reduce flow should the outlet temperature exceed the factory set point and shut down 10 deg F above that with a minimal amount of leakage.

Specifications

BrandThermOmegaTech®
SeriesHCX
TypeHot/Cold Water
Body MaterialBronze
Connection Size3/4 in
Connection TypeNPT
Domestic/ImportDomestic
Hose Size3/4 in MNPT Swivel x 1/2 in MNPT Swivel
Dimensions21.1 in L x 8.5 in W x 19.1 in H
Temperature Set Point150 F
Center Distance6-1/2 in
Valve/Cartridge TypeMixing Valve
Weight14 lbs
IncludesBronze Mixing Valve Body, B62/Bronze Globe Valve, Stainless Steel Hose Rack, Brass/Bronze Pipe Fitting, Stainless Steel Mounting Bracket and Stainless Steel/Plexi-Glass Integrated Temperature Gauge

Item Features

  • Self-operating, no external power source required
  • Simplistic and cost-effective
  • Over-temperature safety valve automatically stops flow to prevent scalding
  • Exclusive SmartFlow safety shut-off - thermostatic valve automatically stops flow should the output temperature exceed the specified set point
