ThermOmegaTech® 940-000000-050 STVM® Hose Assembly With Zinc Plated Steel Swivel Fittings, 1/2 x 3/4 in Nominal, MNPT End Style, 50 ft L, 200 psig Working, EPDM, Import
CBPN:254686
MPN:940-000000-050
Price:
$729.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® Hose Assembly, Series: STVM®, 1/2 x 3/4 in Nominal, MNPT End Style, 3/4 in ID, 1-3/16 in OD, 50 ft Length, 200 psig Working, 388 deg F, EPDM, Black, Import, Model STVM Hose Asy 3/4 x 50ft Black

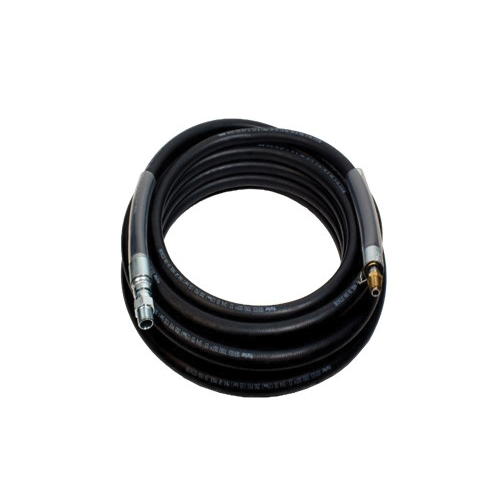

The Black Steam Washdown Hose is a high quality steam rated hose used for steam/water mixing washdown applications in industrial and chemical plants. This hose can be used in conjunction with our STVM® Washdown Station.
ThermOmegaTech® 940-000000-050 STVM® Hose Assembly With Zinc Plated Steel Swivel Fittings, 1/2 x 3/4 in Nominal, MNPT End Style, 50 ft L, 200 psig Working, EPDM, Import
CBPN:254686
MPN:940-000000-050
Price:
$729.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® Hose Assembly, Series: STVM®, 1/2 x 3/4 in Nominal, MNPT End Style, 3/4 in ID, 1-3/16 in OD, 50 ft Length, 200 psig Working, 388 deg F, EPDM, Black, Import, Model STVM Hose Asy 3/4 x 50ft Black
The Black Steam Washdown Hose is a high quality steam rated hose used for steam/water mixing washdown applications in industrial and chemical plants. This hose can be used in conjunction with our STVM® Washdown Station.
Specifications
Brand: ThermOmegaTech®
Weight: 21.5 lbs
Material: EPDM
Color: Black
End Style: MNPT
Inside Diameter: 3/4 in
Length: 50 ft
Manufacturer Name: ThermOmegaTech
Nominal Size: 1/2 x 3/4 in
Outside Diameter: 1-3/16 in
Series: STVM®
Temperature Rating: 388 deg F
Working Pressure: 200 psig
Application: Steam/Water Mixing Washdown in Industrial and Chemical Plants Applications
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov
Item Features
- Steam and water rated
- Wire braid enforcement
- Strain relief on station end
- Boston weatherhead 200 LL
- EPDM tubing and cover
