ThermOmegaTech HCX SS Washdown Station

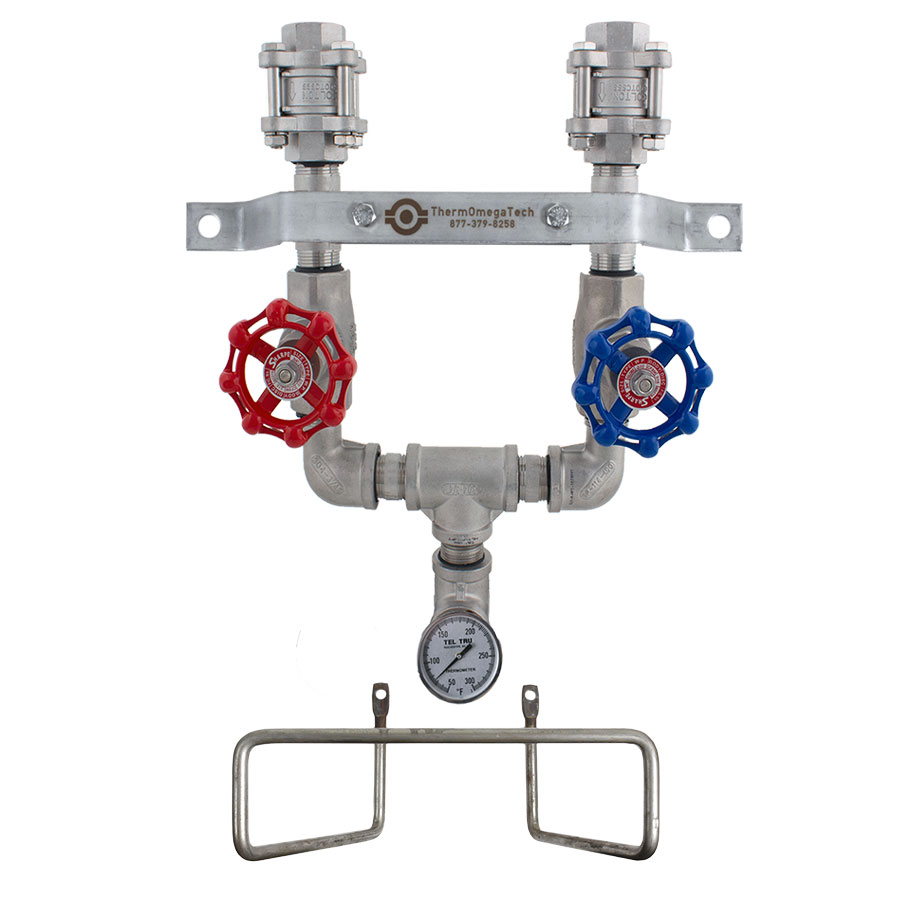

ThermOmegaTech® 377-510130-000 HCX Hot/Cold Water Washdown Station, 6-1/2 in Center, Domestic

CBPN:255096

MPN:377-510130-000

Price:
$1420.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Washdown Station, Hot/Cold Water, Series: HCX, 6-1/2 in Center Distance, 3/4 in MNPT Swivel x 1/2 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 20.1 in L x 7.5 in W x 13.3 in H Dimensions, Domestic

The HCX is a hot and cold water mixing Washdown Station designed to provide a high-temperature wash for production facilities that do not have an existing steam supply readily available. The HCX station uses individual globe valves to mix hot and cold water to the desired proportion with the outlet temperature clearly displayed on the integrated, easy to read temperature gauge. The HCX station is available in stainless steel or brass/bronze construction and can be ordered with the SmartFlow safety shutoff valve which will reduce flow should the outlet temperature exceed the factory set point and shut down 10 deg F above that with a minimal amount of leakage.

ThermOmegaTech® 377-510130-000 HCX Hot/Cold Water Washdown Station, 6-1/2 in Center, Domestic

CBPN:255096

MPN:377-510130-000

Price:
$1420.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Washdown Station, Hot/Cold Water, Series: HCX, 6-1/2 in Center Distance, 3/4 in MNPT Swivel x 1/2 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 20.1 in L x 7.5 in W x 13.3 in H Dimensions, Domestic

The HCX is a hot and cold water mixing Washdown Station designed to provide a high-temperature wash for production facilities that do not have an existing steam supply readily available. The HCX station uses individual globe valves to mix hot and cold water to the desired proportion with the outlet temperature clearly displayed on the integrated, easy to read temperature gauge. The HCX station is available in stainless steel or brass/bronze construction and can be ordered with the SmartFlow safety shutoff valve which will reduce flow should the outlet temperature exceed the factory set point and shut down 10 deg F above that with a minimal amount of leakage.

Specifications

BrandThermOmegaTech®
SeriesHCX
TypeHot/Cold Water
Body MaterialStainless
Connection Size3/4 in
Connection TypeNPT
Domestic/ImportDomestic
Hose Size3/4 in MNPT Swivel x 1/2 in MNPT Swivel
Inlet Connection3/4 FNPT
Dimensions20.1 in L x 7.5 in W x 13.3 in H
Outlet Connection3/4 FNPT
Temperature Set PointManual
Center Distance6-1/2 in
Valve/Cartridge TypeMixing Valve
Weight12 lbs
IncludesStainless Steel Mixing Valve Body, Stainless Steel Globe Valve, Stainless Steel Hose Rack, Stainless Steel Pipe Fitting, Stainless Steel Mounting Bracket and Stainless Steel/Plexi-Glass Integrated Temperature Gauge

Item Features

  • Self-operating, no external power source required
  • Simplistic and cost-effective
  • Over-temperature safety valve automatically stops flow to prevent scalding
