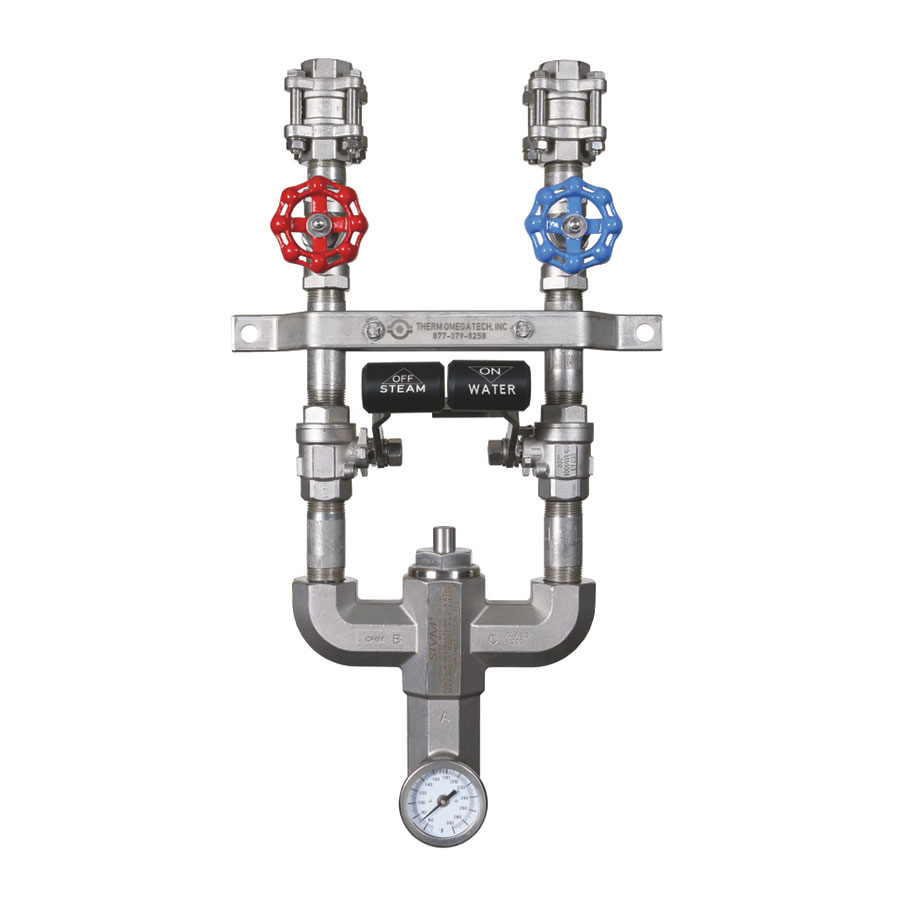

ThermOmegaTech® STVM® Washdown Station, Steam/Water, Series: TOT, 6-1/2 in Center Distance, 1/2 in MNPT Swivel x 3/4 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 24.17 in L x 10.5 in W x 20.8 in H Dimensions, Domestic, Model SS TOT Washdown Station 185F

The STVM® Steam and Water Washdown Station is designed for high temperature washdown to maximize efficiency and minimize downtime in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high-temperature washdown is required. ThermOmegaTech® STVM® Washdown Station incorporates a unique Venturi mixing technology to deliver water at the required temperature quickly, quietly and on-demand. The cartridge of the STVM® valve can be quickly and easily removed as a single assembly by simply unscrewing the valve cap. This allows easy cleaning and in-line servicing of the station. The STVM® Washdown Station has two built-in safety features - interlocking ball valves to prevent steam-only operation and an automatic shut-off when output is 15 deg F over the unit's temperature set point (either 150 deg F or 185 deg F) or when cold water flow is interrupted.
