ThermOmegaTech STVM Stainless Steel Washdown Station

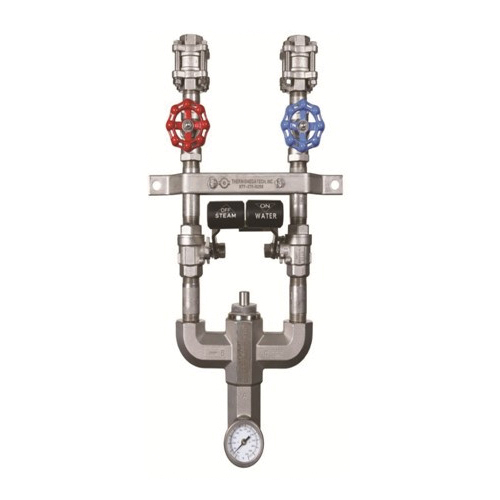

ThermOmegaTech® STVM® 377-111100-150 TOT Steam/Water Washdown Station, 6-1/2 in Center, Domestic

CBPN:255087

MPN:377-111100-150

Price:
$4153.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® STVM® Washdown Station, Steam/Water, Series: TOT, 6-1/2 in Center Distance, 1/2 in MNPT Swivel x 3/4 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 23.17 in L x 9.5 in W x 20.8 in H Dimensions, Domestic

The STVM® Steam and Water Washdown Station is designed for high temperature washdown to maximize efficiency and minimize downtime in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high-temperature washdown is required. ThermOmegaTech® STVM® Washdown Station incorporates a unique Venturi mixing technology to deliver water at the required temperature quickly, quietly and on-demand. The cartridge of the STVM® valve can be quickly and easily removed as a single assembly by simply unscrewing the valve cap. This allows easy cleaning and in-line servicing of the station. The STVM® Washdown Station has two built-in safety features - interlocking ball valves to prevent steam-only operation and an automatic shut-off when output is 15 deg F over the unit's temperature set point (either 150 deg F or 185 deg F) or when cold water flow is interrupted.

ThermOmegaTech® STVM® 377-111100-150 TOT Steam/Water Washdown Station, 6-1/2 in Center, Domestic

CBPN:255087

MPN:377-111100-150

Price:
$4153.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® STVM® Washdown Station, Steam/Water, Series: TOT, 6-1/2 in Center Distance, 1/2 in MNPT Swivel x 3/4 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 23.17 in L x 9.5 in W x 20.8 in H Dimensions, Domestic

The STVM® Steam and Water Washdown Station is designed for high temperature washdown to maximize efficiency and minimize downtime in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high-temperature washdown is required. ThermOmegaTech® STVM® Washdown Station incorporates a unique Venturi mixing technology to deliver water at the required temperature quickly, quietly and on-demand. The cartridge of the STVM® valve can be quickly and easily removed as a single assembly by simply unscrewing the valve cap. This allows easy cleaning and in-line servicing of the station. The STVM® Washdown Station has two built-in safety features - interlocking ball valves to prevent steam-only operation and an automatic shut-off when output is 15 deg F over the unit's temperature set point (either 150 deg F or 185 deg F) or when cold water flow is interrupted.

Specifications

BrandThermOmegaTech®
SeriesTOT
TypeSteam/Water
Body MaterialStainless
Connection Size3/4 in
Connection TypeNPT
Domestic/ImportDomestic
Hose Size1/2 in MNPT Swivel x 3/4 in MNPT Swivel
Dimensions23.17 in L x 9.5 in W x 20.8 in H
Temperature Set Point150 F
Center Distance6-1/2 in
Valve/Cartridge TypeMixing Valve
Weight21.5 lbs
IncludesStainless Steel Mixing Valve Cartridge, Stainless Steel Mixing Valve Body, Stainless Steel Globe Valve, Stainless Steel Check Valve, Stainless Steel/Plexi-Glass Temperature Gauge, Stainless Steel Mounting Bracket, Stainless Steel Pipe Fitting and Stainless Steel Hose Rack

Item Features

  • Self-operating, no external power source required
  • In-line serviceable mixing valve with easy to replace/clean cartridge - no special tools required
  • Resistant to the effects of mineral build-up and scaling
  • Exclusive self-actuating Thermoloid® wax blend thermal actuator
  • Interlocking ball valves prevent steam only operation
  • Unique venturi mixing design minimizes water hammer effect
  • Maximum water output - 150 deg F (150 psig)
