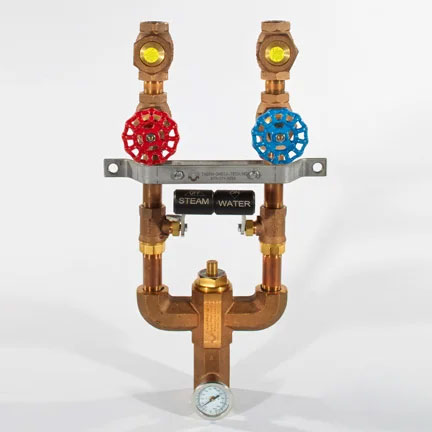

ThermOmegaTech® STVM® 377-111000-185 TOT Steam/Water Washdown Station, 6-1/2 in Center, Domestic
CBPN:254685
MPN:377-111000-185
Price:
$2595.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® STVM® Washdown Station, Steam/Water, Series: TOT, 6-1/2 in Center Distance, 1/2 in MNPT Swivel x 3/4 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 22.17 in L x 8.5 in W x 20.8 in H Dimensions, Domestic
The STVM® Steam and Water Washdown Station is designed for high temperature washdown to maximize efficiency and minimize downtime in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high-temperature washdown is required. ThermOmegaTech® STVM® Washdown Station incorporates a unique Venturi mixing technology to deliver water at the required temperature quickly, quietly and on-demand. The cartridge of the STVM® valve can be quickly and easily removed as a single assembly by simply unscrewing the valve cap. This allows easy cleaning and in-line servicing of the station. The STVM® Washdown Station has two built-in safety features - interlocking ball valves to prevent steam-only operation and an automatic shut-off when output is 15 deg F over the unit's temperature set point (either 150 deg F or 185 deg F) or when cold water flow is interrupted.
ThermOmegaTech® STVM® 377-111000-185 TOT Steam/Water Washdown Station, 6-1/2 in Center, Domestic
CBPN:254685
MPN:377-111000-185
Price:
$2595.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® STVM® Washdown Station, Steam/Water, Series: TOT, 6-1/2 in Center Distance, 1/2 in MNPT Swivel x 3/4 in MNPT Swivel Hose, 3/4 in Connection, NPT Connection, Mixing Valve, 22.17 in L x 8.5 in W x 20.8 in H Dimensions, Domestic
The STVM® Steam and Water Washdown Station is designed for high temperature washdown to maximize efficiency and minimize downtime in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high-temperature washdown is required. ThermOmegaTech® STVM® Washdown Station incorporates a unique Venturi mixing technology to deliver water at the required temperature quickly, quietly and on-demand. The cartridge of the STVM® valve can be quickly and easily removed as a single assembly by simply unscrewing the valve cap. This allows easy cleaning and in-line servicing of the station. The STVM® Washdown Station has two built-in safety features - interlocking ball valves to prevent steam-only operation and an automatic shut-off when output is 15 deg F over the unit's temperature set point (either 150 deg F or 185 deg F) or when cold water flow is interrupted.
Specifications
Brand: ThermOmegaTech®
Weight: 26lbs
Body Material: Brass
Series: TOT
Type: Steam/Water
Connection Size: 3/4 in
Connection Type: NPT
Hose Size: 1/2 in MNPT Swivel x 3/4 in MNPT Swivel
Dimensions: 22.17 in L x 8.5 in W x 20.8 in H
Temperature Set Point: 185 F
Center Distance: 6-1/2 in
Manufacturer Name: ThermOmegaTech
Valve/Cartridge Type: Mixing Valve
Includes: Brass Mixing Valve Cartridge, Bronze Mixing Valve Body, Bronze Globe Valve, Bronze Check Valve, Stainless Steel/Plexi-Glass Temperature Gauge, Stainless Steel Mounting Bracket, Brass/Bronze Pipe Fitting and Stainless Steel Hose Rack
Application: For cleaning processing machinery or chemical tanks and equipment in food processing, dairy, breweries, wineries, chemical, petrochemical and pharmaceutical facilities where a high temperature washdown is required
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov
Item Features
- Self-operating, no external power source required
- In-line serviceable mixing valve with easy to replace/clean cartridge - no special tools required
- Resistant to the effects of mineral build-up and scaling
- Exclusive self-actuating Thermoloid® wax blend thermal actuator
- Interlocking ball valves prevent steam only operation
- Unique venturi mixing design minimizes water hammer effect
- Maximum water output - 185 deg F (150 psig)
