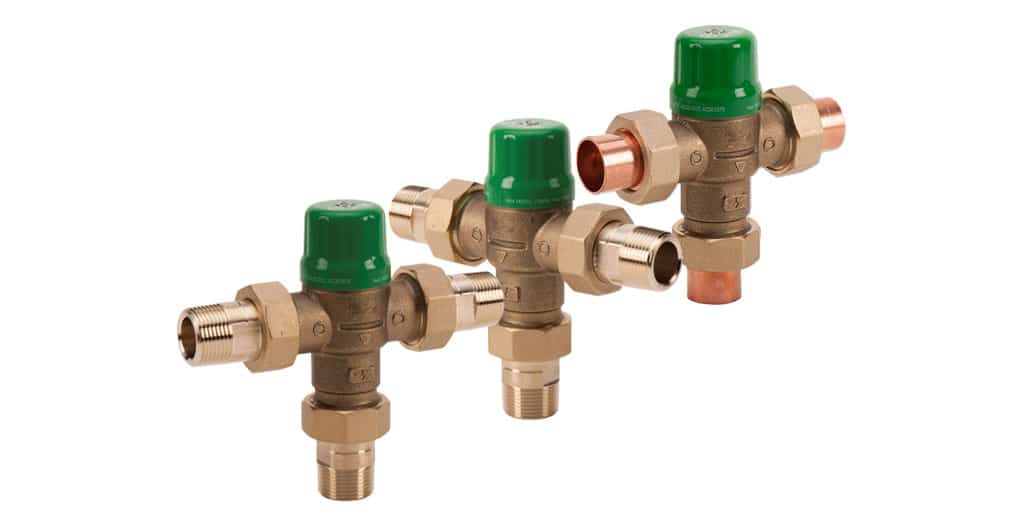

Taco® 5122-C2, Series 5120, Domestic Water Lead Free Mixing Valve, 1/2 in Nominal, C Union End Style, 200 psi Pressure, 2.12 Cv Flow, Forged Brass Body, Domestic
CBPN: 306973
MPN:5122-C2
Price:
$135.26 / EA
DESCRIPTION
Taco® 5122-C2, Mixing Valve, Domestic Water, Series: 5120, 1/2 in Nominal, C Union End Style, 200 psi Pressure, 85 to 120 deg F, 2.12 Cv Flow, Media: Water, 4.8 in Inlet to Outlet Length, Forged Brass Body, 4.8 in H x 4.8 in W Dimensions, Domestic
The 5120 Series Mixing Valve is designed to control water temperatures for both point of use and point of distribution installations wherever ASSE1070 or ASSE 1017 mixing valves are required. The valves design and advanced thermostatic element ensures a stable mixed water temperature throughout the valves adjustable range.
Taco® 5122-C2, Series 5120, Domestic Water Lead Free Mixing Valve, 1/2 in Nominal, C Union End Style, 200 psi Pressure, 2.12 Cv Flow, Forged Brass Body, Domestic
CBPN: 306973
MPN:5122-C2
Price:
$135.26 / EA
DESCRIPTION
Taco® 5122-C2, Mixing Valve, Domestic Water, Series: 5120, 1/2 in Nominal, C Union End Style, 200 psi Pressure, 85 to 120 deg F, 2.12 Cv Flow, Media: Water, 4.8 in Inlet to Outlet Length, Forged Brass Body, 4.8 in H x 4.8 in W Dimensions, Domestic
The 5120 Series Mixing Valve is designed to control water temperatures for both point of use and point of distribution installations wherever ASSE1070 or ASSE 1017 mixing valves are required. The valves design and advanced thermostatic element ensures a stable mixed water temperature throughout the valves adjustable range.
Specifications
Brand: Taco®
Weight: 2 lbs
Nominal Size: 1/2 in
End Style: C Union
Pressure Rating: 200 psi
Flow Capacity: 2.12 Cv
Body Material: Forged Brass
Dimensions: 4.8 in H x 4.8 in W
Inlet to Outlet Length: 4.8 in
Manufacturer Name: Taco
Media: Water
Series: 5120
Temperature Rating: 85 to 120 deg F
Type: Domestic Water
Includes: Temperature Strip
Application: For Point Of Source
Warranty: 1 Year
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASSE 1017 | ASSE 1070 | cUPC | NSF 61
Item Features
- Suitable for use in Potable Water
- No Routine Maintenance Required
- Outlet Temperature Strip
- +- 3 deg F Accuracy of Outlet Temperature
- Factory set to 115-120 deg F
- 120 to 180 deg F Hot Supply Temperature
- 20% Maximum Variation in Supply Pressure
- 27 deg F Minimum Temperature Differential Between Hot Supply and Mixed
- 39 to 80 deg F Cold Supply Temperature
- 85 to 120 deg F Outlet Temperature Range
- Lockable Maximum Temperature Setting
- Includes Temperature Gauge
- Outlet Temperature Strip
