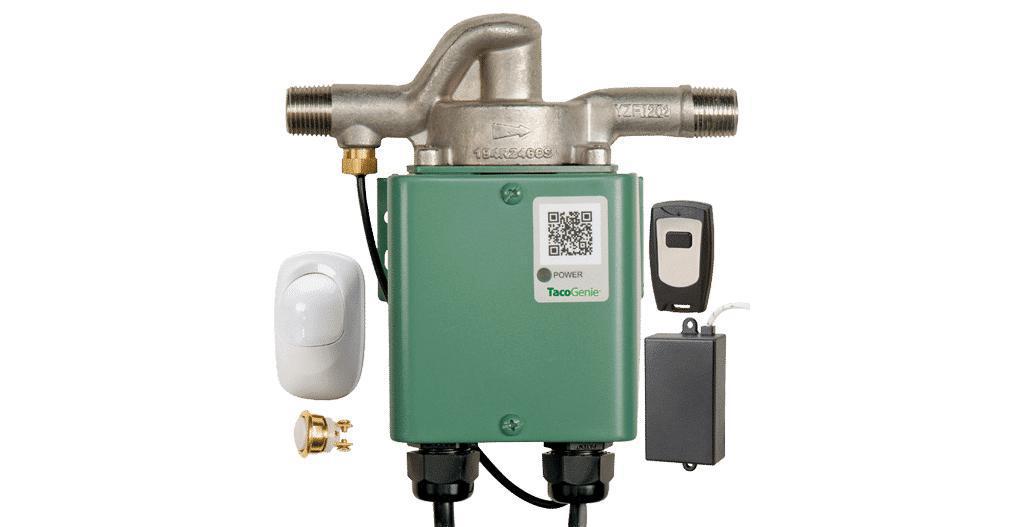

Taco® 008-CT-USK, TacoGenie® Hot Water Circulator with Under Sink Kit, Stainless Steel Casing, 3.6 gpm Flow Rate, 1/2 in MNPT Connection, 115 V, 1 Phase, Domestic
CBPN: 306817
MPN:008-CT-USK
DESCRIPTION
Taco® 008-CT-USK, TacoGenie® Hot Water Circulator Pump, Stainless Steel, Series: 00, 3.6 gpm Flow Rate, 1/2 in MNPT Connection, 15 ft Maximum Head, 1/25 hp Power, 115 Volts, 0.84 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 220 deg F, Carbon Bearing, 7 in H x 6-1/2 in W x 5-21/32 in D Dimensions, Domestic
The TacoGenie™ provides hot water at your command at the same time it saves water, energy and money. The TacoGenie™ is a small, silent pump that you attach to the hot and cold water lines in the cabinet under the most remote kitchen or bath fixture in the home. When the TacoGenie™ pump is activated, the cool water you normally let run down the drain is recirculated back to the water heater through the cold water line.
Taco® 008-CT-USK, TacoGenie® Hot Water Circulator with Under Sink Kit, Stainless Steel Casing, 3.6 gpm Flow Rate, 1/2 in MNPT Connection, 115 V, 1 Phase, Domestic
CBPN: 306817
MPN:008-CT-USK
DESCRIPTION
Taco® 008-CT-USK, TacoGenie® Hot Water Circulator Pump, Stainless Steel, Series: 00, 3.6 gpm Flow Rate, 1/2 in MNPT Connection, 15 ft Maximum Head, 1/25 hp Power, 115 Volts, 0.84 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 220 deg F, Carbon Bearing, 7 in H x 6-1/2 in W x 5-21/32 in D Dimensions, Domestic
The TacoGenie™ provides hot water at your command at the same time it saves water, energy and money. The TacoGenie™ is a small, silent pump that you attach to the hot and cold water lines in the cabinet under the most remote kitchen or bath fixture in the home. When the TacoGenie™ pump is activated, the cool water you normally let run down the drain is recirculated back to the water heater through the cold water line.
Specifications
Item Features
- TacoGenie, the pump circulates the hot water from the water heater and returns the cooled water back through the cold water line
- When the hot water arrives at the fixture, the TacoGenie's heat sensor and control board shut off the pump to prevent pumping excess hot water into the cold water line
- Note: Standard plumbing and distance requires the TacoGenie™ to be installed between the hot and cold water line at the most distant hot water location
- Stainless steel casing, steel stator housing
- 304 stainless steel cartridge
- Ceramic shaft
- EPDM O-ring
- Acetal body, plunger
- Noryl impeller, carbon bearings
- CT - TacoGenie™ threaded
- USK - undersink kit
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive - Low Power Consumption
- Unique Replaceable Cartridge - Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability - Maintenance Free
- Cast Iron or Stainless Steel, Flanged and Bronze, Sweat Connections
- 3/4 in, 1 in, 1-1/4 in, 1/2 in Flanged Connection Sizes
