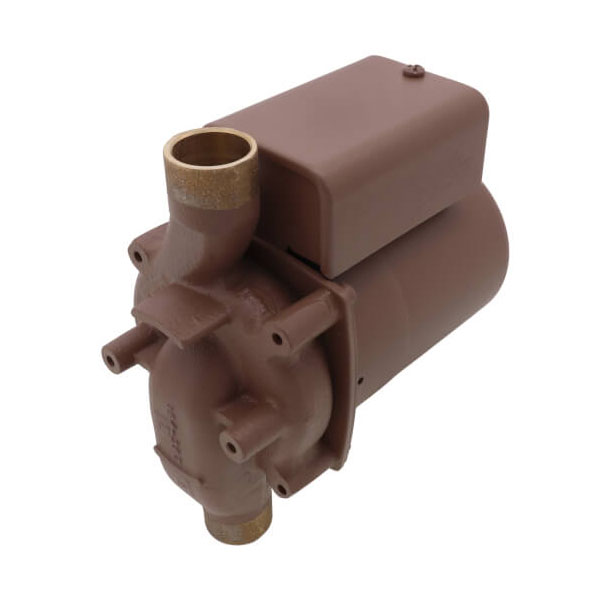

Taco® 008-BC6 Cartridge Circulator, 00 Series, Bronze Casing, 3/4 in Sweat End Connection, 11 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306815
MPN:008-BC6
Price:
$569.52 / EA
DESCRIPTION
Taco® 008-BC6, Cartridge Circulator Pump, Bronze, Series: 00, Model: 008, 11 gpm Flow Rate, 9-1/2 ft Maximum Head, 1/40 hp Power, 115 V, .52 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, 3/4 in Sweat Connection, 40 to 220 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 5-5/8 in D Dimensions, Domestic
Taco® 008-BC6 Cartridge Circulator, 00 Series, Bronze Casing, 3/4 in Sweat End Connection, 11 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306815
MPN:008-BC6
Price:
$569.52 / EA
DESCRIPTION
Taco® 008-BC6, Cartridge Circulator Pump, Bronze, Series: 00, Model: 008, 11 gpm Flow Rate, 9-1/2 ft Maximum Head, 1/40 hp Power, 115 V, .52 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, 3/4 in Sweat Connection, 40 to 220 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 5-5/8 in D Dimensions, Domestic
Specifications
Brand: Taco®
Weight: 9 lbs
Body Material: Bronze
Flow Rate: 11 gpm
Inlet Size: 3/4 in
Outlet Size: 3/4 in
Voltage Rating: 115 V
Phase: 1
Impeller Type: Non-Metallic
Temperature Rating: 40 to 220 deg F
Bearing Type: Carbon
Amperage Rating: 0.52 A
Dimensions: 6-3/8 in H x 4-3/4 in W x 5-5/8 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 9-1/2 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: Sweat
Power Rating: 1/25 hp
Series: 00
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: UL-CUS
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive - Low Power Consumption
- Unique Replaceable Cartridge - Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability - Maintenance Free
Taco 008-BC6 Spare Parts
CBPN:
307145
MPN:
007-002RP
In Stock: 13
Price:
$68.45 / EA
CBPN:
113219
MPN:
008-005RP
In Stock: 296
Price:
$27.61 / EA
CBPN:
150353
MPN:
008-045RP
In Stock: 12
Price:
$236.73 / EA
