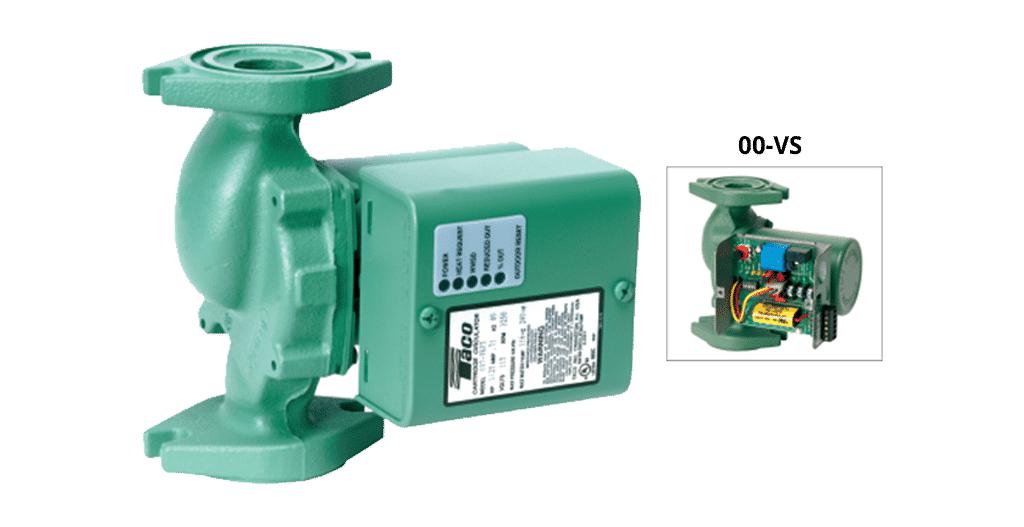

Taco® 007-VSF5 00 Cast Iron Variable Speed Setpoint Circulator, 23 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 115 V, 1 Phase , Domestic
CBPN: 306811
MPN:007-VSF5
Price:
$1707.02 / ea
DESCRIPTION
Taco® 007-VSF5, Variable Speed Setpoint Circulator, Cast Iron, Series: 00, 23 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions, Domestic
Taco® 007-VSF5 00 Cast Iron Variable Speed Setpoint Circulator, 23 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 115 V, 1 Phase , Domestic
CBPN: 306811
MPN:007-VSF5
Price:
$1707.02 / ea
DESCRIPTION
Taco® 007-VSF5, Variable Speed Setpoint Circulator, Cast Iron, Series: 00, 23 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions, Domestic
Specifications
Brand: Taco®
Weight: 9 lbs
Bearing Type: Carbon
Impeller Type: Non-Metallic
Temperature Rating: 40 to 230 deg F
Flow Rate: 23 gpm
Inlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Outlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 0.74 A
Dimensions: 6-3/8 in H x 4-3/4 in W x 6-3/8 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 10 ft
Maximum Pressure: 125 psi
Mounting Type: Flange
Power Rating: 1/25 hp
Series: 00
Type: Cast Iron
Includes: System Sensors and Return Sensor
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: UL Approved
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
