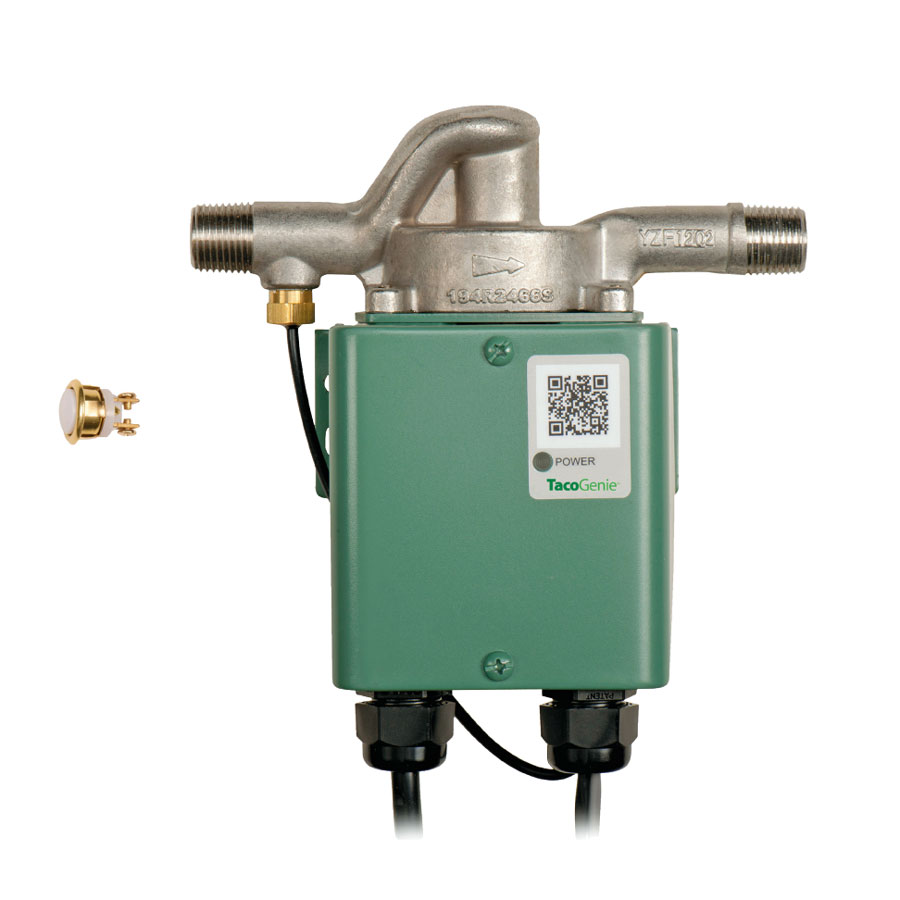

Taco® 006-CT, TacoGenie® Hot Water Circulator, Stainless Steel Casing, 2.2 gpm Flow Rate, 1/2 in MNPT Connection, 115 V, 1 Phase, Domestic
CBPN: 306797
MPN:006-CT
Price:
$649.88 / EA
DESCRIPTION
Taco® 006-CT, TacoGenie® Hot Water Circulator Pump, Stainless Steel, Series: 00, 2.2 gpm Flow Rate, 1/2 in Inlet, 6.25 ft Maximum Head, 1/40 hp Power, 115 Volts, 0.52 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Standard Mounting, Stainless Steel, 7 in H x 5-21/32 in W x 6-15/16 in D Dimensions
Taco® 006-CT, TacoGenie® Hot Water Circulator, Stainless Steel Casing, 2.2 gpm Flow Rate, 1/2 in MNPT Connection, 115 V, 1 Phase, Domestic
CBPN: 306797
MPN:006-CT
Price:
$649.88 / EA
DESCRIPTION
Taco® 006-CT, TacoGenie® Hot Water Circulator Pump, Stainless Steel, Series: 00, 2.2 gpm Flow Rate, 1/2 in Inlet, 6.25 ft Maximum Head, 1/40 hp Power, 115 Volts, 0.52 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Standard Mounting, Stainless Steel, 7 in H x 5-21/32 in W x 6-15/16 in D Dimensions
Specifications
Brand: Taco®
Weight: 7 lbs
Body Material: Stainless Steel
Flow Rate: 2.2 gpm
Inlet Size: 1/2 in MNPT
Outlet Size: 1/2 in MNPT
Voltage Rating: 115 V
Phase: 1
Impeller Type: Noryl®
Temperature Rating: 40 to 230 deg F
Bearing Type: Carbon
Amperage Rating: 0.52 A
Dimensions: 7 in H x 5-21/32 in W x 6-15/16 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 6-1/4 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: MNPT Threaded
Power Rating: 1/40 hp
Series: 00
Includes: Hardwired Starter Button, 1/2" Plumbing Adapter Tees and 1/2" Stainless Steel Flex Lines
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Country of Origin: US
Standards and Approvals: UL Listed | UPC Listed | NSF Certified
Item Features
- Standard high capacity output - Compact design
- Quiet, efficient operation
- Direct drive - Low power consumption
- Unique replaceable cartridge design - Field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
- Low-lead Bronze sweat or Stainless Steel with threaded or union connections
- Standard high capacity output - Compact design
- Quiet, efficient operation
- Direct drive - Low power consumption
- Unique replaceable cartridge design - Field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
- Low-lead Bronze sweat or Stainless Steel with threaded or union connections
