Taco® 006-BC7-5IFC Cartridge Circulator with Integral Flow Check, 00 Series, Bronze Casing, 1/2 in Sweat End Connection, 9 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306794
MPN:006-BC7-5IFC
Price:
$485.38 / EA
DESCRIPTION
Taco® 006-BC7-5IFC, Cartridge Circulator Pump with Integral Flow Check, Bronze, Series: 00, Model: 006, 9 gpm Flow Rate, 9 ft Maximum Head, 1/40 hp Power, 115 V, .52 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, 1/2 in Sweat End Connection, 40 to 220 deg F, Carbon Bearing, 6-1/2 in H x 5-1/2 in W x 7-1/4 in D Dimensions, Domestic
features special hygroscopic cellulose discs in the valve body. When dry the discs allow air to be released from
Taco® 006-BC7-5IFC Cartridge Circulator with Integral Flow Check, 00 Series, Bronze Casing, 1/2 in Sweat End Connection, 9 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306794
MPN:006-BC7-5IFC
Price:
$485.38 / EA
DESCRIPTION
Taco® 006-BC7-5IFC, Cartridge Circulator Pump with Integral Flow Check, Bronze, Series: 00, Model: 006, 9 gpm Flow Rate, 9 ft Maximum Head, 1/40 hp Power, 115 V, .52 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, 1/2 in Sweat End Connection, 40 to 220 deg F, Carbon Bearing, 6-1/2 in H x 5-1/2 in W x 7-1/4 in D Dimensions, Domestic
features special hygroscopic cellulose discs in the valve body. When dry the discs allow air to be released from
Specifications
Brand: Taco®
Weight: 6 lbs
Body Material: Bronze
Flow Rate: 9 gpm
Inlet Size: 1/2 in
Outlet Size: 1/2 in
Voltage Rating: 115 V
Phase: 1
Impeller Type: Non-Metallic
Temperature Rating: 40 to 220 deg F
Bearing Type: Carbon
Amperage Rating: 0.52 A
Dimensions: 6-1/2 in H x 5-1/2 in W x 7-1/4 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 9 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: Sweat
Power Rating: 1/40 hp
Series: 00
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Country of Origin: US
Item Features
- Unique Replaceable Cartridge Design
- No mechanical seal to replace
- Eliminates Separate In-Line Flow Check
- Optional Integral Flow Check
- Direct Drive Low Power Consumption
- Field Serviceable
- Prevents Gravity Flow/Reverse Flow
- Self-lubricating
- Unmatched Reliability Maintenance Free

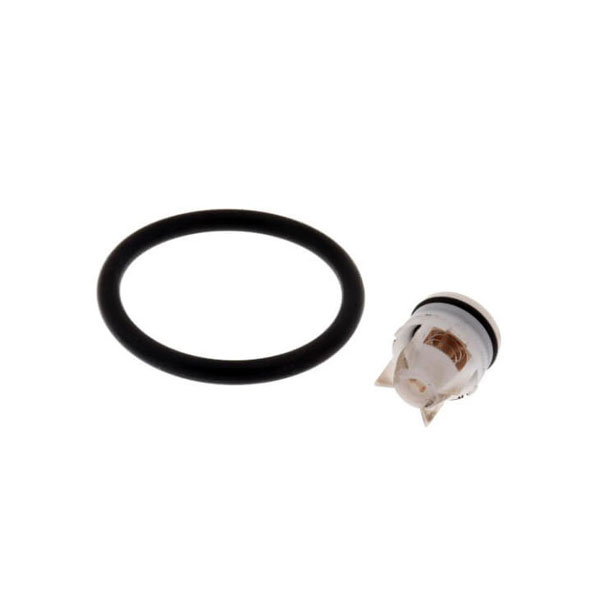

Taco 006-BC7-5IFC Spare Parts
CBPN:
307139
MPN:
005-020RP
In Stock: 286
Price:
$228.96 / EA
CBPN:
307143
MPN:
006-047RP
In Stock: 136
Price:
$27.46 / EA
CBPN:
307145
MPN:
007-002RP
In Stock: 13
Price:
$68.45 / EA
CBPN:
307146
MPN:
007-003RP
In Stock: 9
Price:
$36.48 / EA
