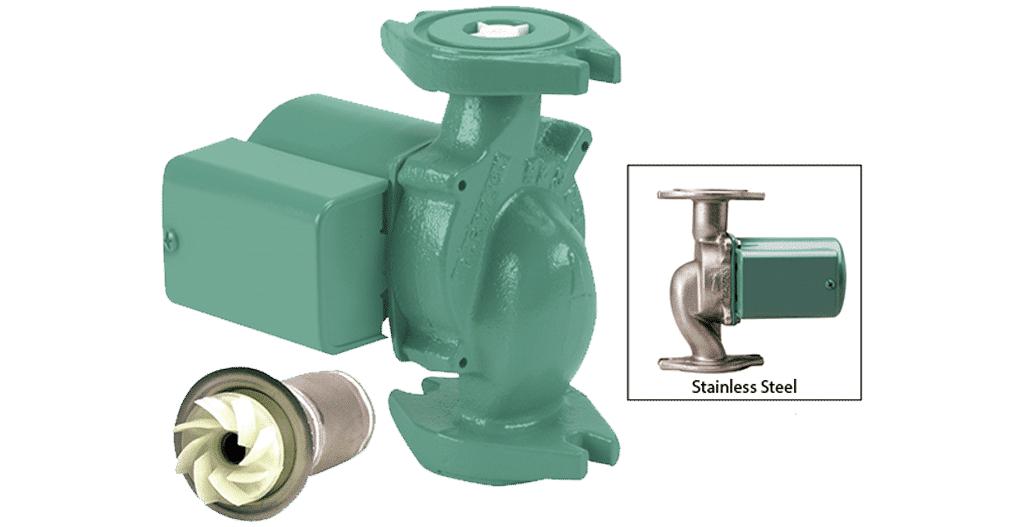

Taco® 005-F2-2IFC 00 Cast Iron Cartridge Circulator, 0 to 13.5 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2, 2 in Inlet x 3/4, 1-1/4, 1, 1-1/2, 2 in Outlet, 115 V, 1 Phase
CBPN: 306783
MPN:005-F2-2IFC
DESCRIPTION
Taco® 005-F2-2IFC, Cartridge Circulator, Cast Iron, Series: 00, 0 to 13.5 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2, 2 in Inlet, 3/4, 1-1/4, 1, 1-1/2, 2 in Outlet, 7.5 ft Maximum Head, 1/35 hp Power, 115 V, 0.52 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 5-5/8 in D Dimensions
The 005-IFC is designed to simplify piping, reduce installation costs and improve system performance when zoning with 00® circulators. By locating the IFC inside the pump, a separate in-line flow check is eliminated. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.
Taco® 005-F2-2IFC 00 Cast Iron Cartridge Circulator, 0 to 13.5 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2, 2 in Inlet x 3/4, 1-1/4, 1, 1-1/2, 2 in Outlet, 115 V, 1 Phase
CBPN: 306783
MPN:005-F2-2IFC
DESCRIPTION
Taco® 005-F2-2IFC, Cartridge Circulator, Cast Iron, Series: 00, 0 to 13.5 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2, 2 in Inlet, 3/4, 1-1/4, 1, 1-1/2, 2 in Outlet, 7.5 ft Maximum Head, 1/35 hp Power, 115 V, 0.52 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 5-5/8 in D Dimensions
The 005-IFC is designed to simplify piping, reduce installation costs and improve system performance when zoning with 00® circulators. By locating the IFC inside the pump, a separate in-line flow check is eliminated. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.
Specifications
Item Features
- Integral Flow Check Simplifies piping Prevents reverse flow and gravity flow Eliminates separate in-line flow check Reduces installed cost Improves system performance Easy to service
- Unique replaceable cartridge-field serviceable
- Unmatched reliability-maintenance free
- Quiet, efficient operation
- Self lubricating, No mechanical seal
- Wide range of applications
- Cast Iron or Stainless Steel construction
- Flanged connections
