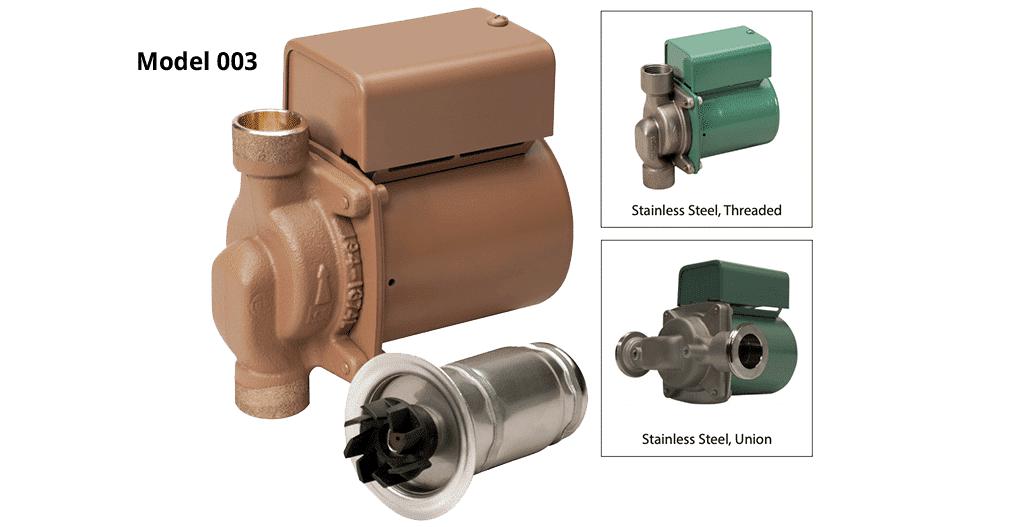

Taco® 003-ST4 00 Stainless Steel Cartridge Circulator, 7 gpm Flow Rate, 3/4 in Inlet, 115 V, 1 Phase
CBPN: 306781
MPN:003-ST4
Price:
$423.56 / ea
DESCRIPTION
Taco® 003-ST4, Cartridge Circulator, Stainless Steel, Series: 00, 7 gpm Flow Rate, 3/4 in Inlet, 4.5 ft Maximum Head, 1/40 hp Power, 115 V, 0.45 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, NPT Threaded Mounting, 220 deg F, Carbon Bearing, Stainless Steel, 4 in H x 5-5/8 in W x 3-15/16 in D Dimensions
Taco® 003-ST4 00 Stainless Steel Cartridge Circulator, 7 gpm Flow Rate, 3/4 in Inlet, 115 V, 1 Phase
CBPN: 306781
MPN:003-ST4
Price:
$423.56 / ea
DESCRIPTION
Taco® 003-ST4, Cartridge Circulator, Stainless Steel, Series: 00, 7 gpm Flow Rate, 3/4 in Inlet, 4.5 ft Maximum Head, 1/40 hp Power, 115 V, 0.45 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, NPT Threaded Mounting, 220 deg F, Carbon Bearing, Stainless Steel, 4 in H x 5-5/8 in W x 3-15/16 in D Dimensions
Specifications
Brand: Taco®
Weight: 6 lbs
Bearing Type: Carbon
Impeller Type: Non-Metallic
Temperature Rating: 220 deg F
Flow Rate: 7 gpm
Inlet Size: 3/4 in
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 0.45 A
Dimensions: 4 in H x 5-5/8 in W x 3-15/16 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Material: Stainless Steel
Maximum Head: 4.5 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: NPT Threaded
Power Rating: 1/40 hp
Series: 00
Type: Stainless Steel
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Country of Origin: US
Standards and Approvals: NSF Certified
Item Features
- Unmatched Reliability Maintenance Free
- Compact Design
- Eliminates Separate In-Line Flow Check
- Optional Integral Flow Check
- Direct Drive Low Power Consumption
- Field Serviceable
- Prevents Gravity Flow/Reverse Flow
- Self-lubricating
- No Mechanical Seal
