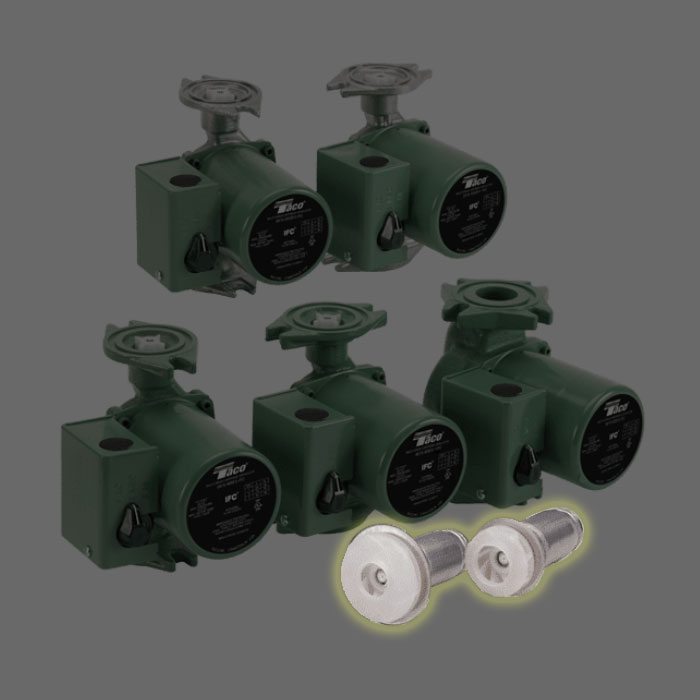

Taco® 0015-MSF3-IFC 3-Speed Cartridge Circulator with Integral Flow Check, Series 00, Cast Iron Casing, Standard Flange End Connection, 18 gpm Flow Rate, 115 V AC, 1 Phase, Domestic
CBPN: 283673
MPN:0015-MSF3-IFC
DESCRIPTION
Taco® 0015-MSF3-IFC, 3-Speed Circulator with Integral Flow Check, Series: 00, 18 gpm Flow Rate, 17 ft Maximum Head, 1/20 hp Power, 115 V, 0.54 to 0.85 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, Green, 6-1/2 in L x 6-3/8 in H Dimensions
The Taco® family of 3-speed pumps are built to the exacting standards you've come to expect from Taco®. Everything that goes into the 0015-IFC 3-Speed from the powerful, high performance motor to the durable 3-speed switch says heavy duty . With the highest starting torque in its class, this circulator delivers the performance and fine tuning capabilities sure to satisfy the most demanding hydronic system installer. Now available in stainless steel for use in domestic potable water systems.
Taco® 0015-MSF3-IFC 3-Speed Cartridge Circulator with Integral Flow Check, Series 00, Cast Iron Casing, Standard Flange End Connection, 18 gpm Flow Rate, 115 V AC, 1 Phase, Domestic
CBPN: 283673
MPN:0015-MSF3-IFC
DESCRIPTION
Taco® 0015-MSF3-IFC, 3-Speed Circulator with Integral Flow Check, Series: 00, 18 gpm Flow Rate, 17 ft Maximum Head, 1/20 hp Power, 115 V, 0.54 to 0.85 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, Green, 6-1/2 in L x 6-3/8 in H Dimensions
The Taco® family of 3-speed pumps are built to the exacting standards you've come to expect from Taco®. Everything that goes into the 0015-IFC 3-Speed from the powerful, high performance motor to the durable 3-speed switch says heavy duty . With the highest starting torque in its class, this circulator delivers the performance and fine tuning capabilities sure to satisfy the most demanding hydronic system installer. Now available in stainless steel for use in domestic potable water systems.
Specifications
Item Features
- The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today's hydronic heating systems
- Its 3 speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs
- The 0015 3 speed is a direct replacement for the Grundfos UPS 15-58 3-Speed
- The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC® ) that prevents gravity flow, reduces installation costs and improves pump performance
- The Stainless Steel 0015 should be used on open, fresh water systems and replaces Grundfos UPS 15-35FC and 15-55FC
- Acetal body and plunger
- EPDM O-ring seal, O-ring and gaskets
- Quiet, efficient operation
- Prevents gravity flow
- Removable high-flow Integral Flow Check
- Self-lubricating and No mechanical seal
- Improves pump performance
- Unique, replaceable cartridge is field serviceable
- Heavy-Duty construction for longer life
- Wide range of applications
- 3-Speed Switch
- 3 speed performance for system flexibility
- Standard flange orientation
- Cast Iron or Stainless Steel, flanged construction
- Drop-in replacement for most commonly used residential circulators
Taco 0015-MSF3-IFC Accessories
CBPN:
61213
MPN:
110-251F
CBPN:
25047
MPN:
110-252F
CBPN:
306834
MPN:
110-253F
CBPN:
306835
MPN:
110-254F
CBPN:
307060
MPN:
SF-050S
CBPN:
307062
MPN:
SFL-050T
CBPN:
307063
MPN:
SFL-075S
CBPN:
307064
MPN:
SFL-075T
CBPN:
307065
MPN:
SFL-100S
CBPN:
307066
MPN:
SFL-100T
CBPN:
307067
MPN:
SFL-125S
CBPN:
307068
MPN:
SFL-125T
CBPN:
307069
MPN:
SFL-150S
CBPN:
307070
MPN:
SFL-150T
Taco 0015-MSF3-IFC Spare Parts
CBPN:
307122
MPN:
0010-025RP
CBPN:
307134
MPN:
0015-002RP
CBPN:
35845
MPN:
007-007RP
