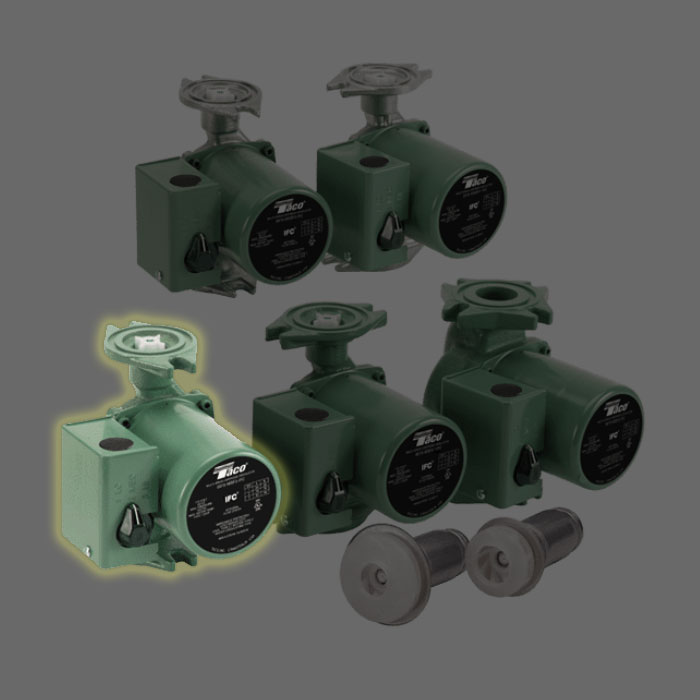

Taco® 0015-MSF3-1IFC 3-Speed Cartridge Circulator with Integral Flow Check, Series 00, Cast Iron Casing, Rotated Standard Flange End Connection, 18 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306760
MPN:0015-MSF3-1IFC
Price:
$163.70 / EA
DESCRIPTION
Taco® 0015-MSF3-1IFC, 3-Speed Circulator with Integral Flow Check, Cast Iron, Series: 00, 18 gpm Flow Rate, 17 ft Maximum Head, 1/20 hp Power, 115 V, 0.54 to 0.85 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Rotated Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, Green, 6-3/8 in H x 6 in W x 6 in L x 5-3/8 in D Dimensions
Taco® 0015-MSF3-1IFC 3-Speed Cartridge Circulator with Integral Flow Check, Series 00, Cast Iron Casing, Rotated Standard Flange End Connection, 18 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306760
MPN:0015-MSF3-1IFC
Price:
$163.70 / EA
DESCRIPTION
Taco® 0015-MSF3-1IFC, 3-Speed Circulator with Integral Flow Check, Cast Iron, Series: 00, 18 gpm Flow Rate, 17 ft Maximum Head, 1/20 hp Power, 115 V, 0.54 to 0.85 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Rotated Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, Green, 6-3/8 in H x 6 in W x 6 in L x 5-3/8 in D Dimensions
Specifications
Brand: Taco®
Weight: 8 lbs
Body Material: Cast Iron
Flow Rate: 18 gpm
Inlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Outlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Voltage Rating: 115 V
Phase: 1
Impeller Type: Non-Metallic
Temperature Rating: 40 to 230 deg F
Bearing Type: Carbon
Amperage Rating: 0.54 to 0.85 A
Dimensions: 6-3/8 in H x 6 in W x 6 in L x 5-3/8 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 17 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: Flange
Power Rating: 1/20 hp
Series: 00
Includes: Integral flow check
Application: For Heating
Warranty: 3 Years
Country of Origin: US
Standards and Approvals: NSF Certified
Item Features
- Reduces installation costs
- Quiet, efficient operation
- Prevents gravity flow
- Removable high-flow Integral Flow Check
- Highest performance & starting torque in class
- 3-Speed Switch
- Wide range of applications
- Drop-in replacement for most commonly used residential circulators
- Heavy duty construction for longer life
- Self-lubricating and No mechanical seal
- Fine tune to system requirements
- Improves pump performance
- Rotated flange orientation
- Unique, replaceable cartridge is field serviceable
