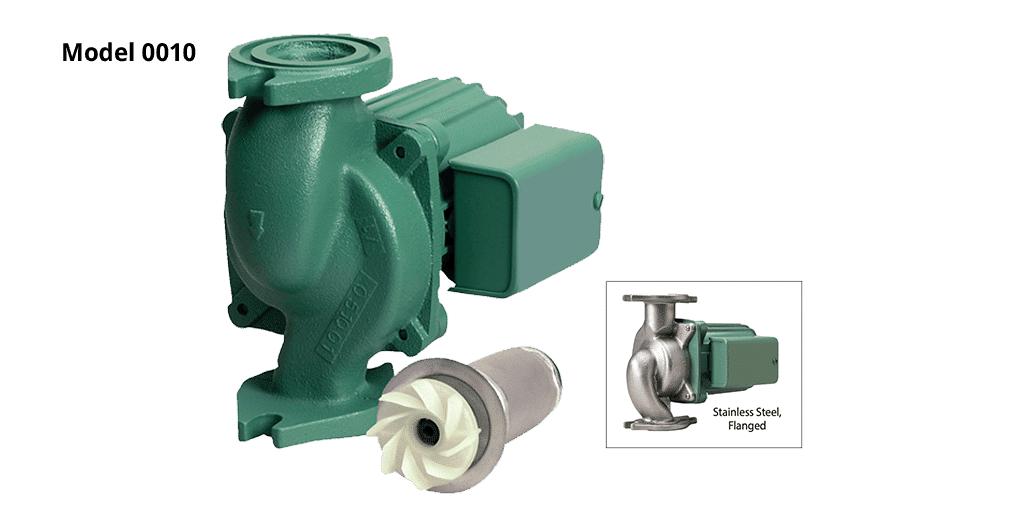

Taco® 0010-SF3 00 Stainless Steel Cartridge Circulator, 32 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 230 V, 1 Phase , Domestic
CBPN: 124067
MPN:0010-SF3
DESCRIPTION
Taco® 0010-SF3, Cartridge Circulator, Stainless Steel, Series: 00, 32 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 10 ft Maximum Head, 1/8 hp Power, 230 V, 1.2 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 7-1/4 in W x 7-1/4 in D Dimensions, Domestic
The Taco 0010 is designed for a wide range of large residential or light commercial water circulating applications. Typical uses include hydronic heating, radiant heating, primary-secondary loops, indirect water heaters, chilled water cooling, and potable hot water systems. The Stainless Steel 0010 is designed for all open-loop, fresh water systems. The unique replace- able cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs.
Taco® 0010-SF3 00 Stainless Steel Cartridge Circulator, 32 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 230 V, 1 Phase , Domestic
CBPN: 124067
MPN:0010-SF3
DESCRIPTION
Taco® 0010-SF3, Cartridge Circulator, Stainless Steel, Series: 00, 32 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 10 ft Maximum Head, 1/8 hp Power, 230 V, 1.2 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 7-1/4 in W x 7-1/4 in D Dimensions, Domestic
The Taco 0010 is designed for a wide range of large residential or light commercial water circulating applications. Typical uses include hydronic heating, radiant heating, primary-secondary loops, indirect water heaters, chilled water cooling, and potable hot water systems. The Stainless Steel 0010 is designed for all open-loop, fresh water systems. The unique replace- able cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs.
Specifications
Item Features
- Cast Iron or Stainless Steel construction
- Cast Iron or Stainless Steel construction
- Direct drive - Low power consumption
- Features
- No mechanical seal
- Quiet, efficient operation
- Self Lubricating
- Standard high capacity output - Compact design
- Standard high capacity output -Compact design
- Unique Replaceable Cartridge design(Field serviceable)
- Unmatched reliability - Maintenance free
