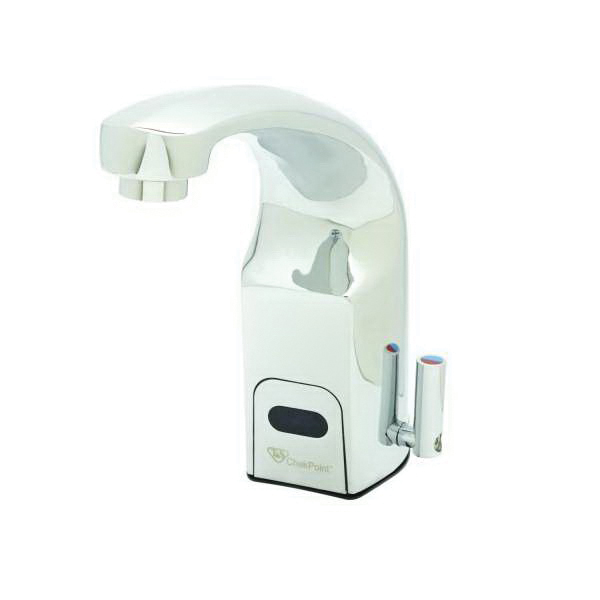

T & S ChekPoint™ EC-3132 Electronic Sensor Faucet, Commercial, 2.2 gpm Flow Rate, Integral Spout, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Polished Chrome
CBPN: 233545
UPC:671262778329
MPN:EC-3132
Price:
$928.40 / EA
Prop 65:
DESCRIPTION
T & S ChekPoint™ Electronic Sensor Faucet, 2.2 gpm Flow Rate, Integral Spout, 5-1/2 in Spout Reach, 6-5/8 in Spout Height, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Side Spray(Y/N): No, 1 Faucet Holes, Spray Pattern: Vandal-Resistant Aerator, 1-1/2 in Maximum Deck Thickness, Deck Mounting, AC/DC Control Module, 2-1/2 in Dia x 7-11/16 in H Dimensions, Brass, Polished Chrome, Commercial Commercial/Residential
T & S ChekPoint™ EC-3132 Electronic Sensor Faucet, Commercial, 2.2 gpm Flow Rate, Integral Spout, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Polished Chrome
CBPN: 233545
MPN:EC-3132
UPC:671262778329
Price:
$928.40 / EA
Prop 65:
DESCRIPTION
T & S ChekPoint™ Electronic Sensor Faucet, 2.2 gpm Flow Rate, Integral Spout, 5-1/2 in Spout Reach, 6-5/8 in Spout Height, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Side Spray(Y/N): No, 1 Faucet Holes, Spray Pattern: Vandal-Resistant Aerator, 1-1/2 in Maximum Deck Thickness, Deck Mounting, AC/DC Control Module, 2-1/2 in Dia x 7-11/16 in H Dimensions, Brass, Polished Chrome, Commercial Commercial/Residential
Specifications
Brand: T & S
Weight: 6.5 lbs
Flow Rate: 2.2 gpm
Spout Type: Integral
Outlet Hose Connection Size: 3/8 in Compression x 1/2 in NPSM
Finish/Color: Polished Chrome
Side Spray(Y/N): No
Commercial/Residential: Commercial
Dimensions: 2-1/2 in Dia x 7-11/16 in H
Manufacturer Name: T & S Brass
Material: Brass
Maximum Deck Thickness: 1-1/2 in
Mounting Type: Deck
Number of Faucet Holes: 1
Spout Height: 6-5/8 in
Spout Reach: 5-1/2 in
Spray Pattern: Vandal-Resistant Aerator
Valve/Cartridge Type: AC/DC Control Module
Warranty: 3 Years Limited
Standards and Approvals: ASME A112.18.1 | CSA B125.1 | ANSI/ICC A117.1 (ADA) | ANSI A117.1 (ADA) | Commonwealth of Massachusetts | Taiwan/TAA | NSF/ANSI 61 Section-9 | NSF/ANSI 372 | UL 1951 | ADA Compliant | cULus Listed | cCSAus Listed | Low Lead Compliant | WaterSense® Certified | US Green Building Council Member | PROP65: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.
Item Features
- Single hole deck mount faucet with polished chrome plated brass body and integral spout
- B-0199-08 series 8, 2.2 gpm vandal resistant aerator
- Above deck electronic control module with internal flow control switches for adjusting auto time out and shut off delay settings
- Above deck temperature mixing handle
- Anti-rotation pin
- 19 in flexible stainless steel supply hoses with filter washers
- Check valve adapter with 3/8 in compression connection
- Low battery LED indicator light
- Above deck electronics
- Side manual mixing valve
- Cast spout
