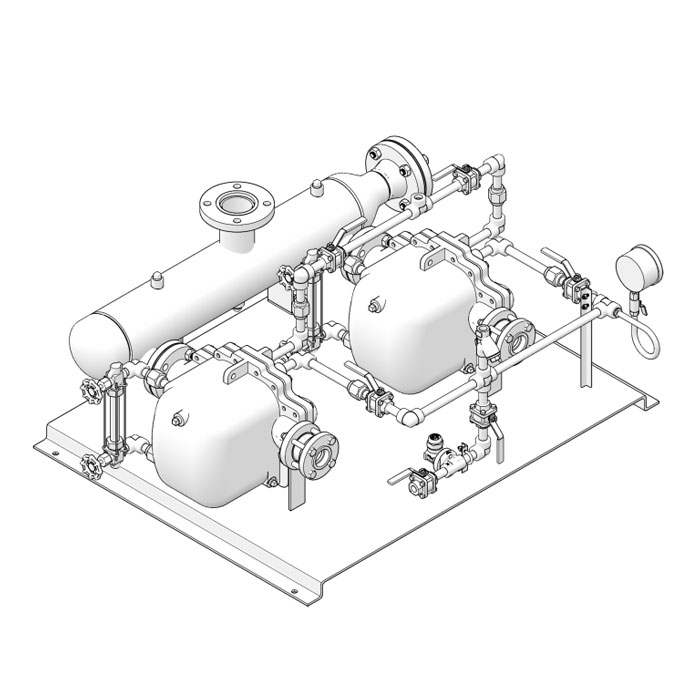

Spirax Sarco ES002224 APT14HC Duplex Pump Package With Assembled Air Vent and Exhaust Pipe, Ductile Iron Body, 2 in Inlet x 1-1/2 in Outlet, ANSI 150 Flange, Model DPT4HC
CBPN: 300390
MPN:ES002224
DESCRIPTION
Spirax Sarco Pump Package, Duplex, Series: APT14HC, 2 in Inlet, 1-1/2 in Outlet, 200 psig Maximum, Ductile Iron Body, Enamel Coated
The compact low profile modular pump/trap system consists of the versatile APT10, APT14, APT14HC and APT14SHC automatic pumping trap pre-piped and mounted on a steel base. The simplex or duplex modules include a condensate reservoir sized to accommodate the pump cycles. The module requires only service field connections for complete installation and fast startup.
Spirax Sarco ES002224 APT14HC Duplex Pump Package With Assembled Air Vent and Exhaust Pipe, Ductile Iron Body, 2 in Inlet x 1-1/2 in Outlet, ANSI 150 Flange, Model DPT4HC
CBPN: 300390
MPN:ES002224
DESCRIPTION
Spirax Sarco Pump Package, Duplex, Series: APT14HC, 2 in Inlet, 1-1/2 in Outlet, 200 psig Maximum, Ductile Iron Body, Enamel Coated
The compact low profile modular pump/trap system consists of the versatile APT10, APT14, APT14HC and APT14SHC automatic pumping trap pre-piped and mounted on a steel base. The simplex or duplex modules include a condensate reservoir sized to accommodate the pump cycles. The module requires only service field connections for complete installation and fast startup.
Specifications
Item Features
- Spirax Sarco non-electric APT14HC automatic pump trap
- Motive steam drip station with Spirax Sarco UTD 52L trap and isolation valves and air vent
- Hydro tested and coated with SSI industrial enamel
- Completely assembled modular pumping system on platform steel base with all connections protected for shipping
- Furnish and install where shown on plans, Spirax Sarco Inc model SPT4HC/DPT4HC pressure powered pump/trap system
- The system shall be a complete pre-piped factory package requiring only service connections for a fully functional system
- Electricity shall not be required for system operation
- The pump/trap shall be constructed of ductile iron with an allowable working pressure of no less than 200 psig
- The pump/trap shall be a unified system with stainless steel mechanism and no external glands or seals
- Individual pump and trap systems will not be acceptable
- The package shall be sized to meet (or exceed) the actual required condensate system load
- The package shall include a structural steel platform skid and painted with one coat enamel
- 3000 fittings with threaded pipe connections included wherever possible
