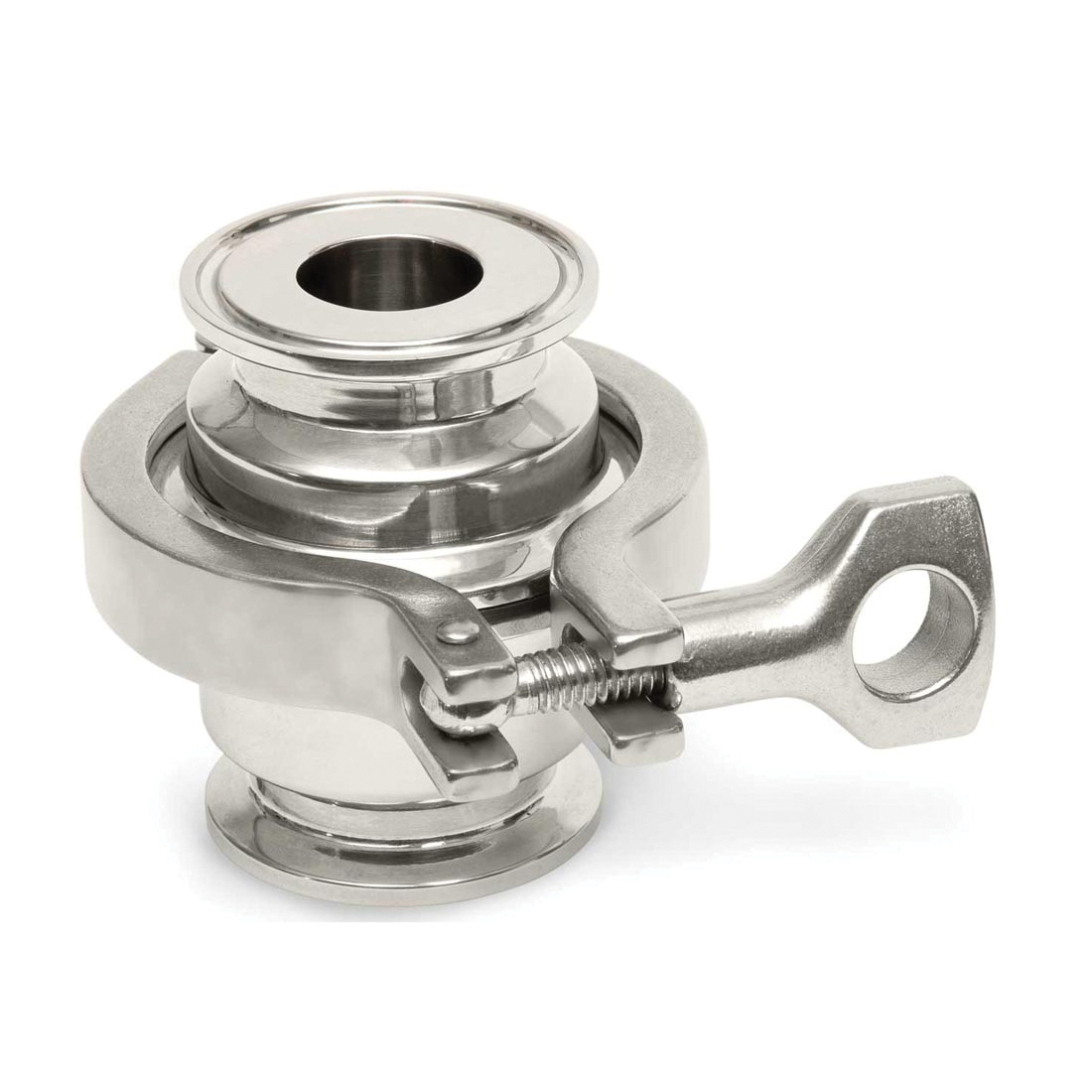

Spirax Sarco 76441F CVS10M Maintainable Sanitary Check Valve, 1/2 in Nominal, Tri-Clamp End Style, ASME BPE 25 RA, 105 to 150 psi CWP Pressure, 0.16 to 0.66 psig Cracking
CBPN:271820
MPN:76441F
Price:
$664.30 / EA
DESCRIPTION
Spirax Sarco Sanitary Check Valve, Maintainable, Series: CVS10M, 1/2 in Nominal, Tri-Clamp End Style, 105 to 150 psi CWP Pressure, 0.16 to 0.66 psig Cracking, Media: Steam, 316L Stainless Steel Body, Mounting Position: Horizontal/Vertical, 316L Stainless Steel Trim, EPDM Softgoods, 100 to 400 deg F, 2-1/2 in H Dimensions, 25 Ra Electro-Polished
The CVS10M maintainable Sanitary Check Valve is a non-slam spring assisted check valve designed to prevent flow reversal in industries with strict cleanliness codes. To accommodate various piping arrangements, the CVS10M check valve is available for both vertical installation and horizontal installation when self draining is not required. The CVS10M Check Valve, with a 316L stainless steel body and seat, is fastened with a quick release clamp and elastomeric gasket body seal to permit fast and easy access to the internals for maintenance. The disc and seat are lapped to provide excellent shutoff.
Spirax Sarco 76441F CVS10M Maintainable Sanitary Check Valve, 1/2 in Nominal, Tri-Clamp End Style, ASME BPE 25 RA, 105 to 150 psi CWP Pressure, 0.16 to 0.66 psig Cracking
CBPN:271820
MPN:76441F
Price:
$664.30 / EA
DESCRIPTION
Spirax Sarco Sanitary Check Valve, Maintainable, Series: CVS10M, 1/2 in Nominal, Tri-Clamp End Style, 105 to 150 psi CWP Pressure, 0.16 to 0.66 psig Cracking, Media: Steam, 316L Stainless Steel Body, Mounting Position: Horizontal/Vertical, 316L Stainless Steel Trim, EPDM Softgoods, 100 to 400 deg F, 2-1/2 in H Dimensions, 25 Ra Electro-Polished
The CVS10M maintainable Sanitary Check Valve is a non-slam spring assisted check valve designed to prevent flow reversal in industries with strict cleanliness codes. To accommodate various piping arrangements, the CVS10M check valve is available for both vertical installation and horizontal installation when self draining is not required. The CVS10M Check Valve, with a 316L stainless steel body and seat, is fastened with a quick release clamp and elastomeric gasket body seal to permit fast and easy access to the internals for maintenance. The disc and seat are lapped to provide excellent shutoff.
Specifications
Brand: Spirax Sarco
Weight: 1.4lbs
Body Material: 316L Stainless Steel
End Style: Tri-Clamp
Nominal Size: 1/2 in
Series: CVS10M
Temperature Rating: 100 to 400 deg F
Type: Maintainable
Finish: 25 Ra Electro-Polished
Pressure Rating: 105 to 150 psi CWP
Dimensions: 2-1/2 in H
Media: Steam
Softgoods Material: EPDM
Trim Material: 316L Stainless Steel
Cracking Pressure: 0.16 to 0.66 psig
Manufacturer Name: Spirax-Sarco Inc
Mounting Position: Horizontal/Vertical
Application: Pharmaceutical Industry Applications
Standards and Approvals: 3A Standard 58-01 | ANSI Class 108 | ASME BPE | ASTM A351 Grade CF3M | FDA Approved | MSS SP-61 | US Pharmacopeia Class VI Certification | USDA Compliant

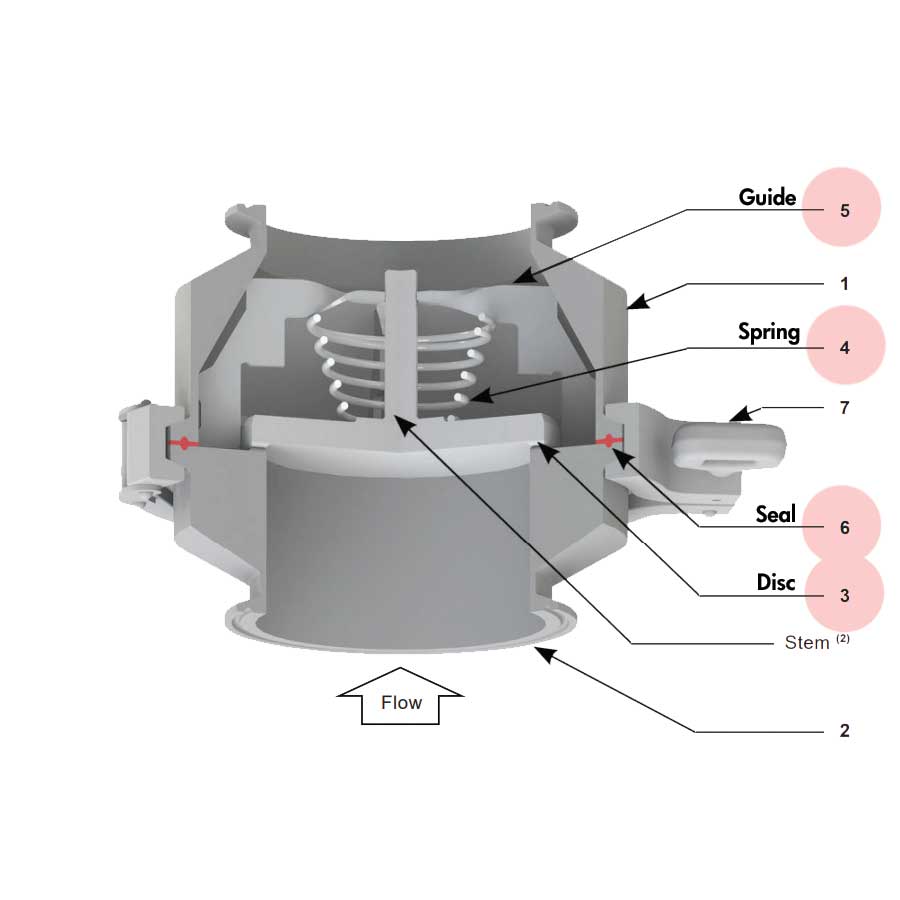

Item Features
- Spring assisted silent closing
- 316L stainless steel body and seat
- 316 disc, spring and guide assembly
- Edge-guided disc
- EPDM standard gasket body seal
- CIP (clean-in-place)
