Spirax Sarco 74092, FTB-200 Float and Thermostatic Steam Trap, 1-1/2 in, FNPT, 450 deg F, 200 psi, Cast Iron
CBPN: 105512
MPN:74092
Price:
$2645.37 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, Series: FTB Series, 1-1/2 in Nominal, FNPT, 10.8 in Length, 200 psi, Cast Iron, 450 deg F, 9.1 in H x 5.8 in W
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature. Noncondensible gases are released by a separate internal balanced pressure thermostatic air vent.
Spirax Sarco 74092, FTB-200 Float and Thermostatic Steam Trap, 1-1/2 in, FNPT, 450 deg F, 200 psi, Cast Iron
CBPN: 105512
MPN:74092
Price:
$2645.37 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, Series: FTB Series, 1-1/2 in Nominal, FNPT, 10.8 in Length, 200 psi, Cast Iron, 450 deg F, 9.1 in H x 5.8 in W
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature. Noncondensible gases are released by a separate internal balanced pressure thermostatic air vent.
Specifications
Brand: Spirax Sarco
Weight: 23 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Max Operating Pressure: 200 psig
Max Allowable Pressure: 200 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 200 psig
Material: Cast Iron
Dimensions: 9.1 in H x 5.8 in W
Length: 10.8 in
Manufacturer Name: Spirax-Sarco Inc
Series: FTB Series
Application: All process heat exchange equipment, particularly when controlled by modulating temperature control valves, unit heaters and air heating coils
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 200 psig Maximum allowable pressure
- 450 deg F at 0 to 200 psig Maximum allowable temperature
- 450 deg F at 200 psig Maximum operating temperature
- Parallel piping configuration
- Stainless steel internals

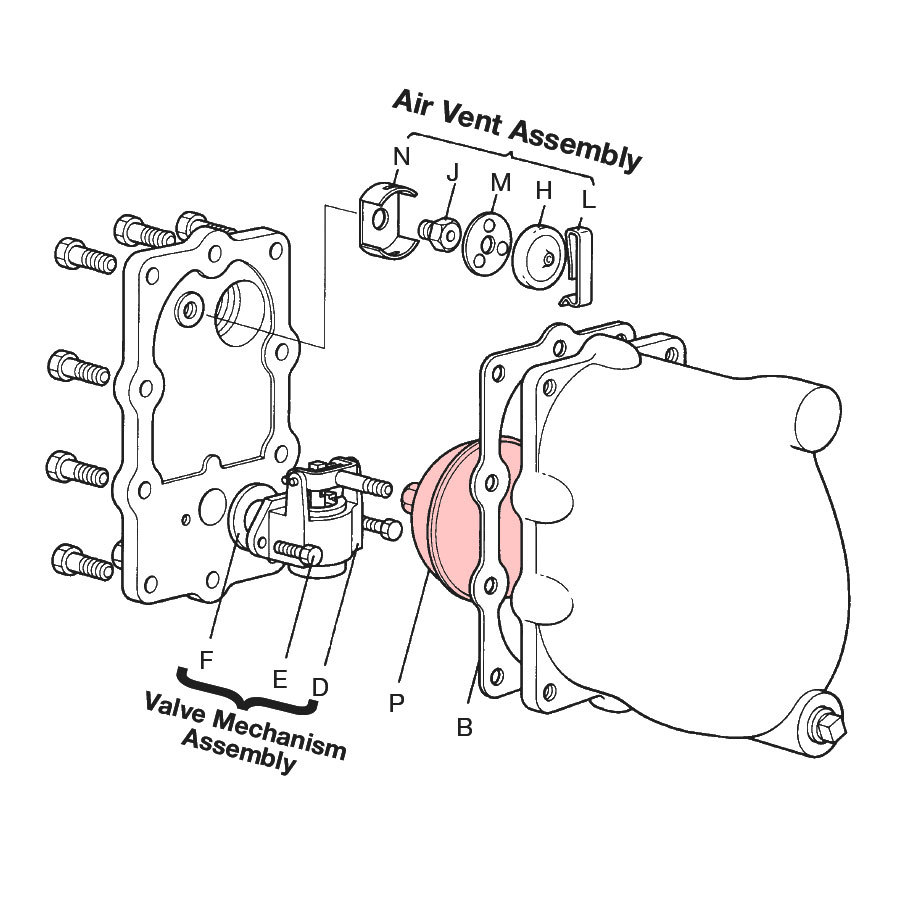

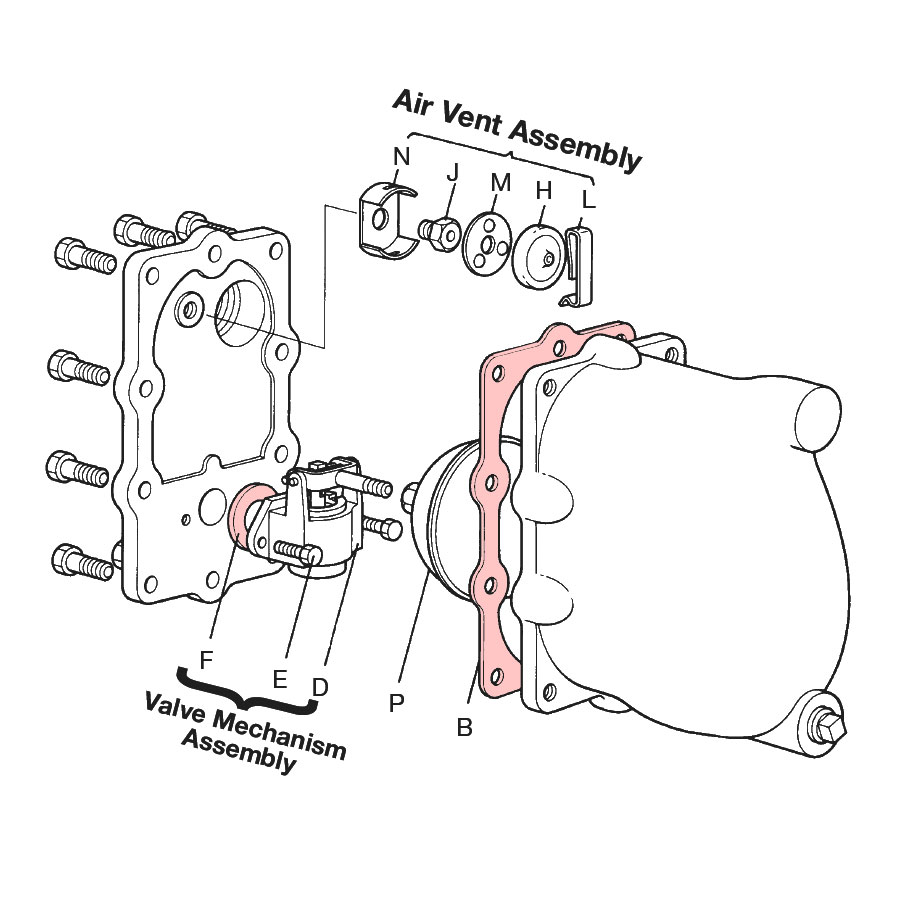

Spirax Sarco 74092 Spare Parts
CBPN:
116346
MPN:
74122
Check Availability
Price:
$169.00 / EA
CBPN:
116347
MPN:
74123
In Stock: 1
Price:
$387.00 / EA
CBPN:
20454
MPN:
58179
In Stock: 9
Price:
$2125.00 / EA
CBPN:
7686
MPN:
62652
In Stock: 147
Price:
$329.00 / EA
CBPN:
419577
MPN:
76773
Check Availability
Price:
$434.98 / EA
