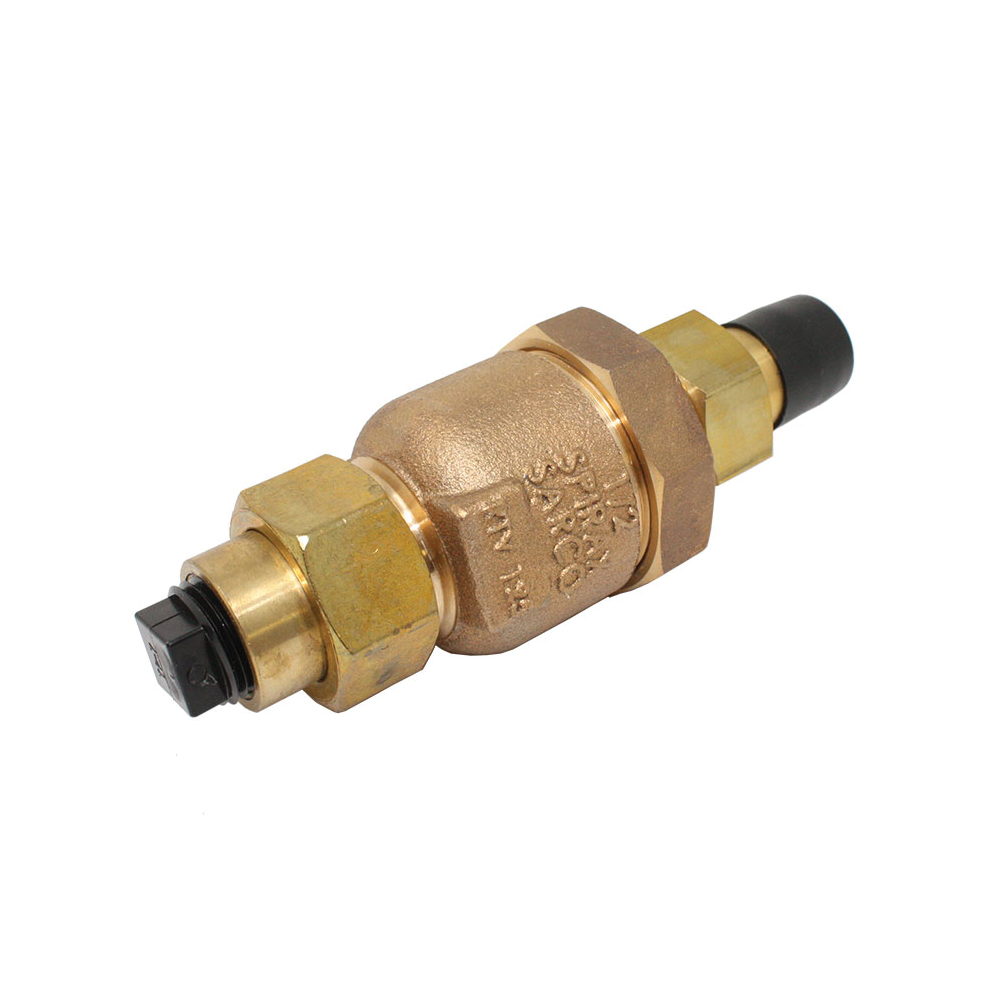

Spirax Sarco 72942 RTV-125 Vertical Pattern Balanced Pressure Thermostatic Steam Trap, 1/2 in Nominal, MNPT x FNPT End Style, 353 deg F, 125 psi Pressure, Forged Brass
CBPN: 7511
MPN:72942
Price:
$235.69 / EA
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure Vertical Pattern, 1/2 in Nominal, MNPT x FNPT, 2 in Length, 125 psi, Forged Brass, Red, 353 deg F, 5.1 in H
The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 23 deg F (13 deg C) below saturated steam temperature.
Spirax Sarco 72942 RTV-125 Vertical Pattern Balanced Pressure Thermostatic Steam Trap, 1/2 in Nominal, MNPT x FNPT End Style, 353 deg F, 125 psi Pressure, Forged Brass
CBPN: 7511
MPN:72942
Price:
$235.69 / EA
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure Vertical Pattern, 1/2 in Nominal, MNPT x FNPT, 2 in Length, 125 psi, Forged Brass, Red, 353 deg F, 5.1 in H
The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 23 deg F (13 deg C) below saturated steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 1 lbs
Nominal Size: 1/2 in
End Style: MNPT x FNPT
Max Operating Pressure: 125 psig
Max Allowable Pressure: 125 psig/up to 353 deg F
Max Allowable Temperature: 353 deg F/up to 125 psig
Material: Brass
Dimensions: 5.1 in H
Finish: Red
Length: 2 in
Manufacturer Name: Spirax-Sarco Inc
Type: Balanced Pressure Vertical Pattern
Application: Vapor or vacuum two-pipe heating systems, Radiators, Convectors, Fin tube, Hospital blanket warmers, Sterilizers and stills, Laundry and kitchen equipment and Small process equipment
Standards and Approvals: ASTM B124 Alloy C3770 | TV-125 ASTM B62 Body
Item Features
- 353 deg F at 0 to 125 deg C Maximum allowable temperature
- 125 psig at 353 deg C Maximum allowable pressure
- Saturated steam temperature
- Vertical piping configuration
- Stainless steel internals
