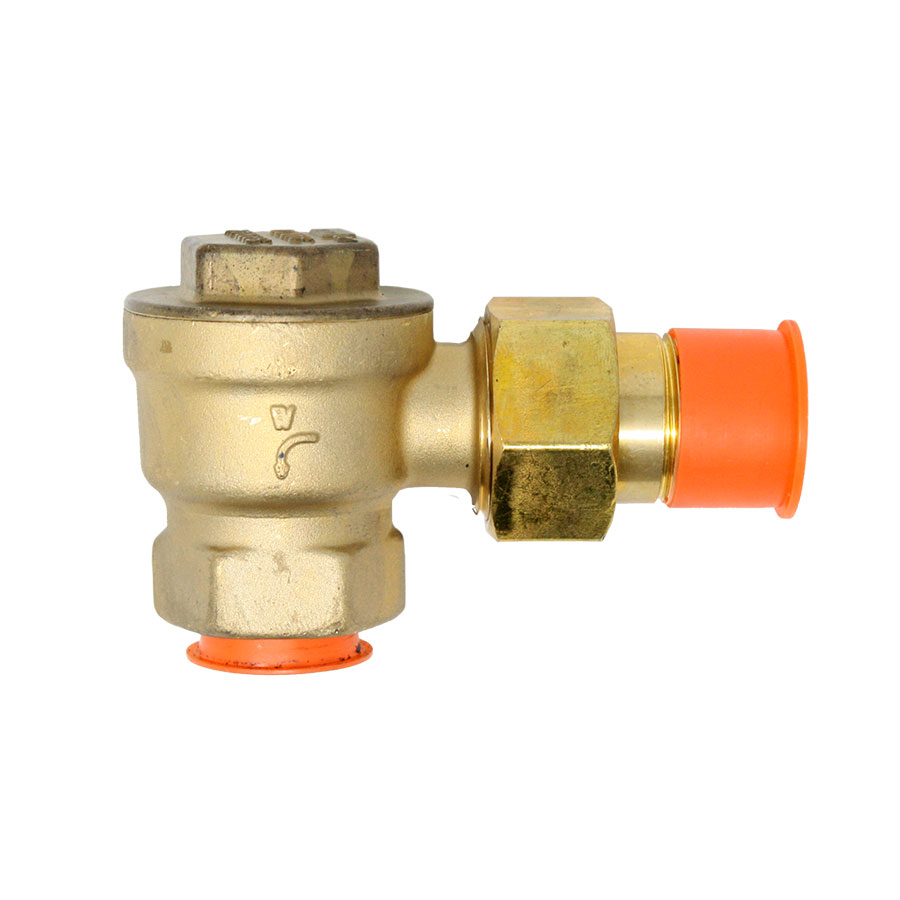

Spirax Sarco 70565, RTA-125 Balanced Pressure Angle Pattern Thermostatic Steam Trap, 3/4 in, MNPT x FNPT, 353 deg F, 125 psi, Forged Brass
CBPN: 7507
MPN:70565
Price:
$180.18 / EA
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure Angle Pattern, 3/4 in Nominal, MNPT, 125 psi, Forged Brass, Red, 353 deg F
The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 23 deg F (13 deg C) below saturated steam temperature.
Spirax Sarco 70565, RTA-125 Balanced Pressure Angle Pattern Thermostatic Steam Trap, 3/4 in, MNPT x FNPT, 353 deg F, 125 psi, Forged Brass
CBPN: 7507
MPN:70565
Price:
$180.18 / EA
DESCRIPTION
Spirax Sarco Thermostatic Steam Trap, Balanced Pressure Angle Pattern, 3/4 in Nominal, MNPT, 125 psi, Forged Brass, Red, 353 deg F
The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 23 deg F (13 deg C) below saturated steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 1.3 lbs
Nominal Size: 3/4 in
End Style: MNPT x FNPT
Max Operating Pressure: 125 psig
Max Allowable Pressure: 125 psig/up to 353 deg F
Max Allowable Temperature: 353 deg F/up to 125 psig
Material: Brass
Finish: Red
Manufacturer Name: Spirax-Sarco Inc
Series: RTA-125
Type: Balanced Pressure Angle Pattern
Application: Vapor or vacuum two-pipe heating systems, Radiators, Convectors, Fin tube, Hospital blanket warmers, Sterilizers and stills, Laundry and kitchen equipment and Small process equipment
Standards and Approvals: ASTM B124 Alloy C3770 | TV-125 ASTM B62 Body
Item Features
- Vapor or vacuum two-pipe heating systems, radiators, convectors, fin tube, hospital blanket warmers, sterilizers and stills, laundry and kitchen equipment, and small process equipment
- Brass body with stainless steel internals
- Saturated steam temperature
- 0.196 in orifice size
- 125 psig at 353 deg C Maximum allowable pressure
- 353 deg F at 0 to 125 deg C Maximum allowable temperature
- 25 in Hg Vacuum minimum operating pressure
- Angle configuration
Resources

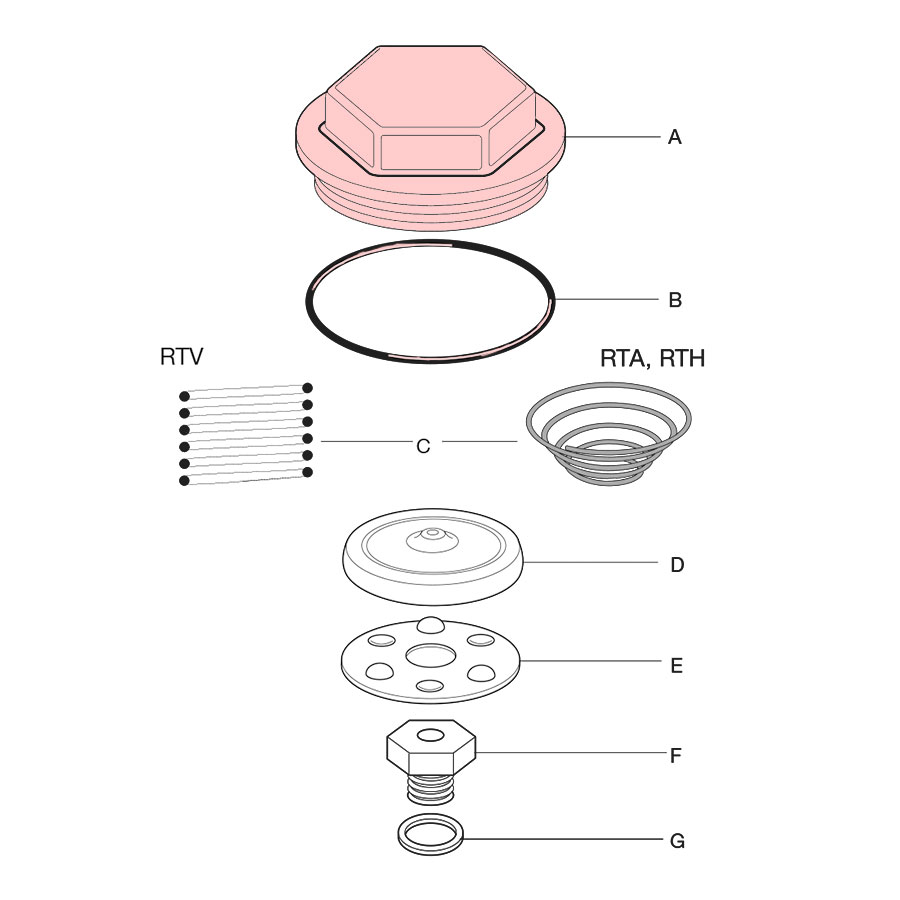

Spirax Sarco 70565 Spare Parts
CBPN:
68383
MPN:
70539
Check Availability
Price:
$58.94 / EA
CBPN:
41677
MPN:
70541
In Stock: 28
Price:
$142.00 / EA
CBPN:
106025
MPN:
70540
Check Availability
Price:
$148.00 / EA
CBPN:
215186
MPN:
72944
Check Availability
Price:
$148.00 / EA
