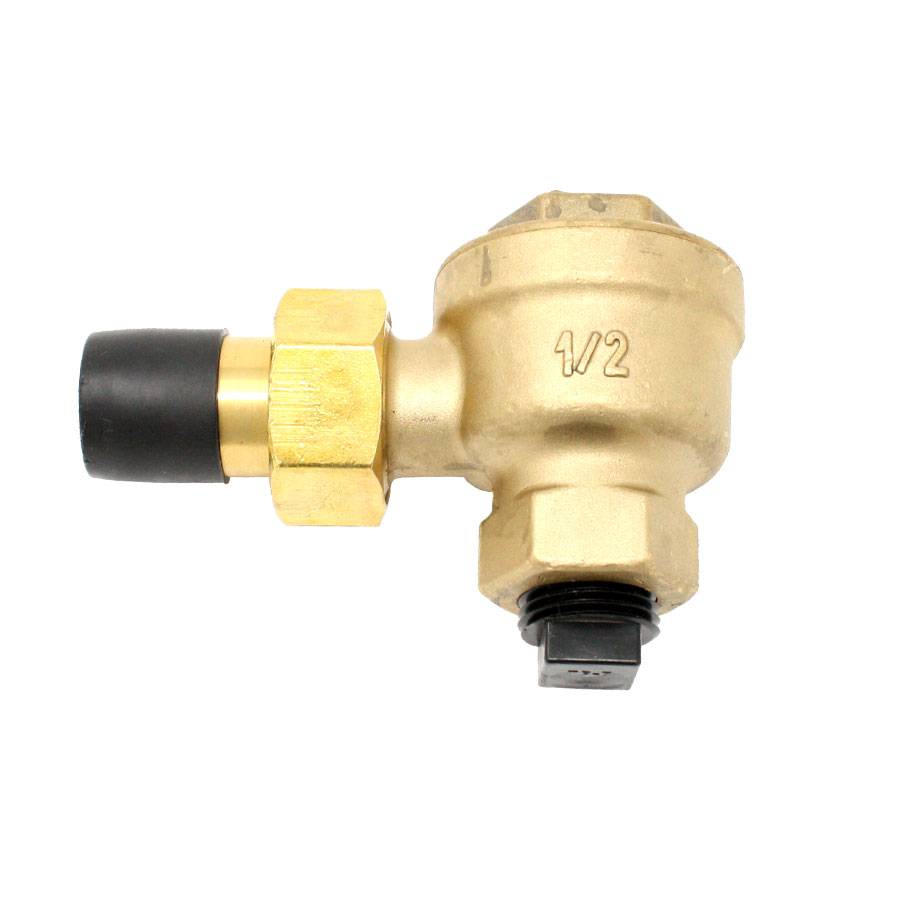

Spirax Sarco 70564, RTA-125 Angle Pattern Balanced Pressure Thermostatic Steam Trap, 1/2 in Nominal, MNPT x FNPT End Style, 353 deg F, 125 psi Pressure, Forged Brass
CBPN: 7506
MPN:70564
Price:
$126.49 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Angle Pattern, 1/2 in Nominal, MNPT, 125 psi, Forged Brass, Red, 353 deg F
The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 23 degF (13 degC) below saturated steam temperature.
Spirax Sarco 70564, RTA-125 Angle Pattern Balanced Pressure Thermostatic Steam Trap, 1/2 in Nominal, MNPT x FNPT End Style, 353 deg F, 125 psi Pressure, Forged Brass
CBPN: 7506
MPN:70564
Price:
$126.49 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Angle Pattern, 1/2 in Nominal, MNPT, 125 psi, Forged Brass, Red, 353 deg F
The balanced pressure steam trap contains a welded stainless steel element which is self-adjusting over the entire operating pressure range and approximately 23 degF (13 degC) below saturated steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 1 lbs
Nominal Size: 1/2 in
End Style: MNPT x FNPT
Max Operating Pressure: 125 psig
Max Allowable Pressure: 125 psig/up to 353 deg F
Max Allowable Temperature: 353 deg F/up to 125 psig
Material: Brass
Color: Red
Finish: Red
Manufacturer Name: Spirax-Sarco Inc
Series: RTA-125
Type: Angle Pattern
Application: Vapor or vacuum 2-pipe heating systems, Radiators, Convectors, Fintube, Hospital blanket warmers, Sterilizers and stills, Laundry and kitchen equipment and Small process equipment
Standards and Approvals: ASTM B124 Alloy C3770 | TV-125 ASTM B62 Body
Item Features
- Saturated steam operating temperature
- Maximum allowable pressure: 125 psig at up to 353 deg F
- Maximum allowable temperature: 353 deg F at 0 to 125 psig
- Stainless steel internals
- Horizontal installation
- Adjust automatically to varying steam pressures
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
