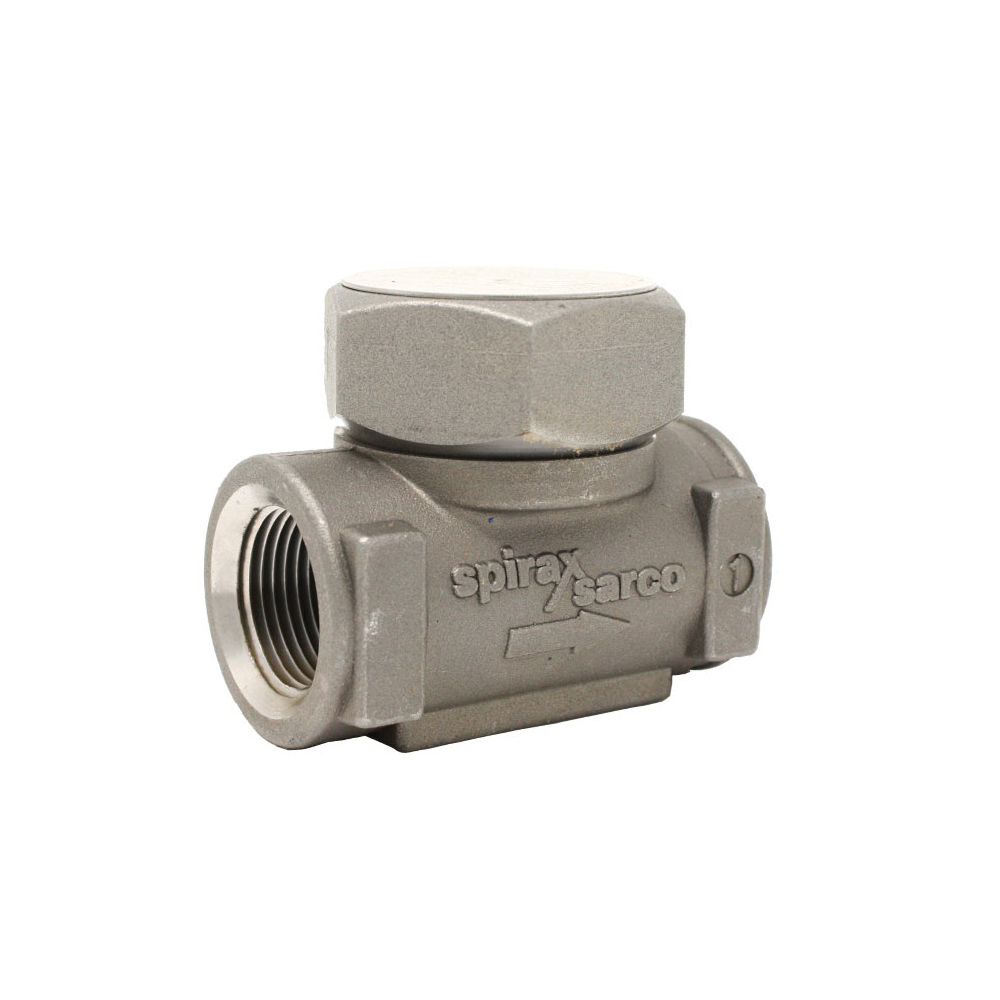

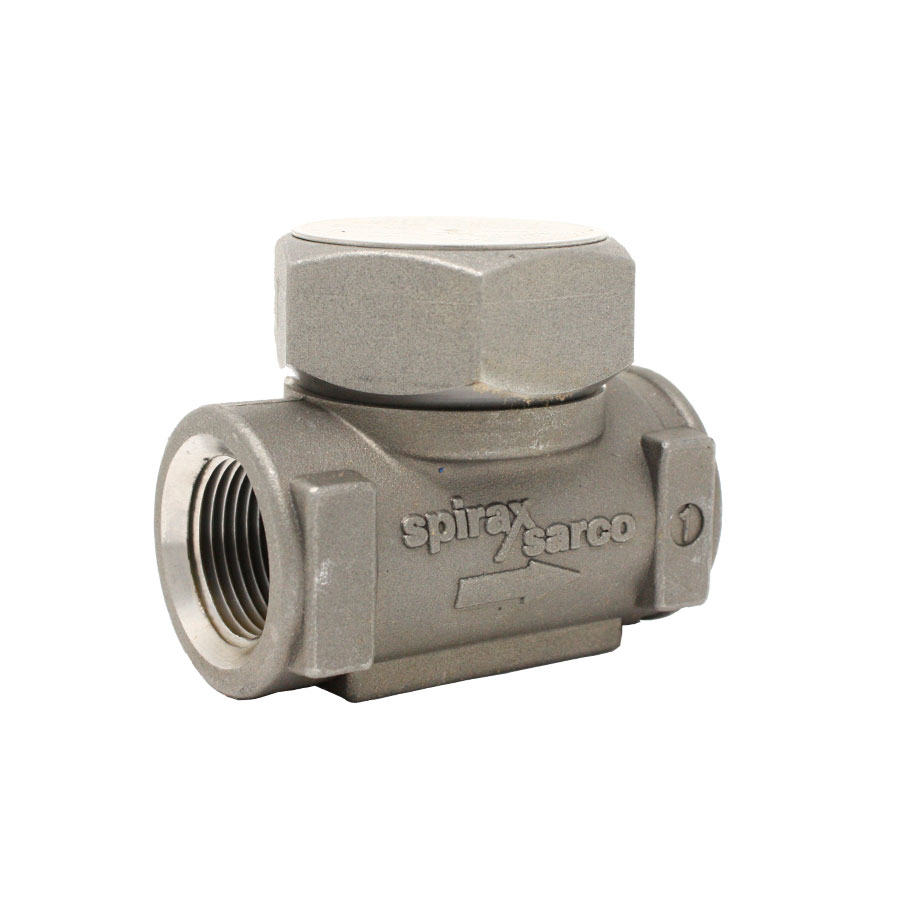

Spirax Sarco 70009, TDC Thermodynamic Steam Trap, 3/4 in, NPT, 800 deg F, 600 psi, Stainless Steel
CBPN: 33794
MPN:70009
Price:
$548.73 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, 3/4 in Nominal, NPT, 2.8 in Length, 600 psi, Stainless Steel, 800 deg F, 2.4 in H x 2.1 in W
The Thermo-Dynamic® steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by water hammer or superheat.
Spirax Sarco 70009, TDC Thermodynamic Steam Trap, 3/4 in, NPT, 800 deg F, 600 psi, Stainless Steel
CBPN: 33794
MPN:70009
Price:
$548.73 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Steam Trap, 3/4 in Nominal, NPT, 2.8 in Length, 600 psi, Stainless Steel, 800 deg F, 2.4 in H x 2.1 in W
The Thermo-Dynamic® steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by water hammer or superheat.
Specifications
Brand: Spirax Sarco
Weight: 1.8 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 600 psig
Max Allowable Pressure: 600 psig/up to 800 deg F
Max Allowable Temperature: 800 deg F/up to 600 psig
Dimensions: 2.4 in H x 2.1 in W
Length: 2.8 in
Manufacturer Name: Spirax-Sarco Inc
Series: TDC
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A743 Grade CA40F Body
Item Features
- Minimum pressure for satisfactory operation is 3.5 psig
- Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
- 600 psig at 800 deg F Maximum allowable pressure
- 800 deg F at 0 to 600 psig Maximum allowable temperature
- Inline horizontal piping configuration
