Spirax Sarco 67902, SRV6 Direct Operated Pressure Regulator, 1-1/2 in, Sanitary Clamp, 7 to 75 psi, 116 psi
CBPN: 20550
MPN:67902
Spirax Sarco 67902 has been discontinued by the manufacturer.
DESCRIPTION
Spirax Sarco Pressure Regulator, Direct Operated, 1-1/2 in Nominal, Sanitary Clamp, 7 to 75 psi, 116 psi Maximum, 347 deg F, 316L Stainless Steel, 13.3 in H

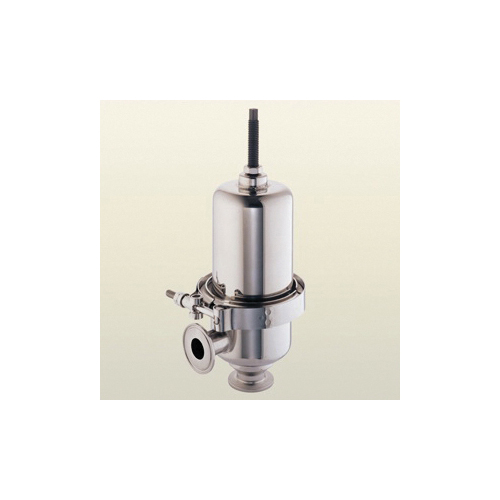

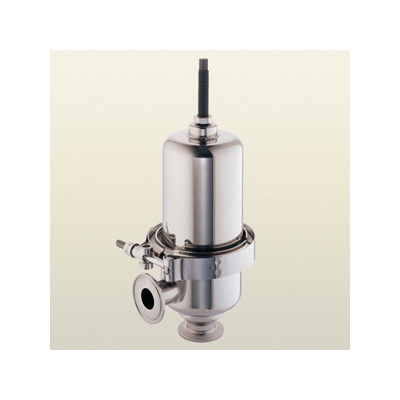

The Spirax Sarco® SRV6 is an angle pattern, sanitary pressure regulator with polished 316/316L stainless steel construction for use on clean steam, process liquids and gases.
To see a diagram and listing of available replacement parts for the Spirax Sarco 67902 regulator, visit our Spirax Sarco 67902 Sanitary Pressure Regulator Spare Parts page.
Spirax Sarco 67902, SRV6 Direct Operated Pressure Regulator, 1-1/2 in, Sanitary Clamp, 7 to 75 psi, 116 psi
CBPN: 20550
MPN:67902
Spirax Sarco 67902 has been discontinued by the manufacturer.
DESCRIPTION
Spirax Sarco Pressure Regulator, Direct Operated, 1-1/2 in Nominal, Sanitary Clamp, 7 to 75 psi, 116 psi Maximum, 347 deg F, 316L Stainless Steel, 13.3 in H
The Spirax Sarco® SRV6 is an angle pattern, sanitary pressure regulator with polished 316/316L stainless steel construction for use on clean steam, process liquids and gases.
To see a diagram and listing of available replacement parts for the Spirax Sarco 67902 regulator, visit our Spirax Sarco 67902 Sanitary Pressure Regulator Spare Parts page.
Specifications
Brand: Spirax Sarco
Weight: 8.2 lbs
Nominal Size: 1-1/2 in
End Style: Sanitary Clamp
Pressure Range: 7 to 75 psi
Maximum Pressure: 116 psi
Dimensions: 13.3 in H
Manufacturer Name: Spirax-Sarco Inc
Material: 316L Stainless Steel
Series: SRV6
Temperature Rating: 347 deg F
Type: Direct Operated
Application: Clean steam, Gas and liquid supplies to bioreactors, Centrifuges, Freeze dryers (lyophilizers), Sterilizers, Autoclaves, Process tanks, Production suites, Humidifiers and Culinary equipment
Standards and Approvals: AISI 316L Body | ANSI Class III Shutoff
Item Features
- All wetted parts mechanically polished to 20 micro inch RA then electro polished
- 7 to 75 psi downstream control range
- The SRV6 should not be used for line isolation, If line isolation is required, a suitable shut-off valve should be installed upstream of the SRV6
- PTFE ring used for guiding pressure equalizing holes
- Open inlet stop valve slowly to avoid damage
- 232 psig Maximum allowable pressure
