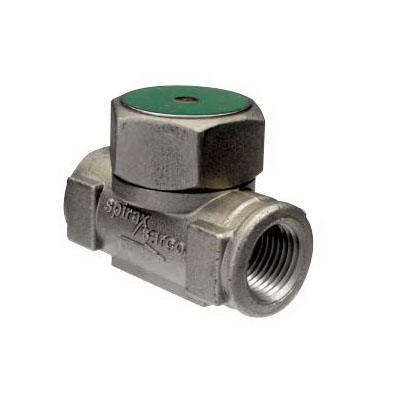

Spirax Sarco 67404C, TDA52 Thermodynamic Drain Trap, 1/2 in Nominal, NPT End Style, 800 deg F, 50 to 250 psi Pressure, Stainless Steel
CBPN: 25726
MPN:67404C
Price:
$510.51 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Drain Trap, 1/2 in Nominal, NPT, 2-1/2 in Length, 50 to 250 psi, Stainless Steel, 800 deg F, 1.9 in H x 1.4 in W
The Thermo-Dynamic® type liquid drain trap cycles periodically, discharging liquid as quickly as it accumulates, so as to prevent harmful back-up.
Spirax Sarco 67404C, TDA52 Thermodynamic Drain Trap, 1/2 in Nominal, NPT End Style, 800 deg F, 50 to 250 psi Pressure, Stainless Steel
CBPN: 25726
MPN:67404C
Price:
$510.51 / EA
DESCRIPTION
Spirax Sarco Thermodynamic Drain Trap, 1/2 in Nominal, NPT, 2-1/2 in Length, 50 to 250 psi, Stainless Steel, 800 deg F, 1.9 in H x 1.4 in W
The Thermo-Dynamic® type liquid drain trap cycles periodically, discharging liquid as quickly as it accumulates, so as to prevent harmful back-up.
Specifications
Brand: Spirax Sarco
Weight: 1.3 lbs
Nominal Size: 1/2 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 250 psig
Max Allowable Pressure: 600 psig/up to 800 deg F
Max Allowable Temperature: 800 deg F/up to 600 psig
Dimensions: 1.9 in H x 1.4 in W
Length: 2-1/2 in
Manufacturer Name: Spirax-Sarco Inc
Series: TDA52
Application: Receiver and air line drainage, gas line drainage
Domestic/Import: Domestic
Country of Origin: US
Item Features
- In-line piping configuration
- 2800 lb/hr load at maximum operating pressure
- Maximum allowable pressure: 600 psig at 0 to 800 deg F
- Maximum allowable temperature: 800 deg F at 0 to 600 psig
