Spirax Sarco SRV6 Regulator

Spirax Sarco 66870, SRV6 Direct Operated Pressure Regulator, 1 in, Sanitary Clamp, 7 to 75 psi, 116 psi

CBPN:20685

MPN:66870

Price:
$8443.89 / EA

DESCRIPTION

Spirax Sarco Pressure Regulator, Direct Operated, 1 in Nominal, Sanitary Clamp, 7 to 75 psi, 116 psi Maximum, 347 deg F, 316L Stainless Steel, 12 in H

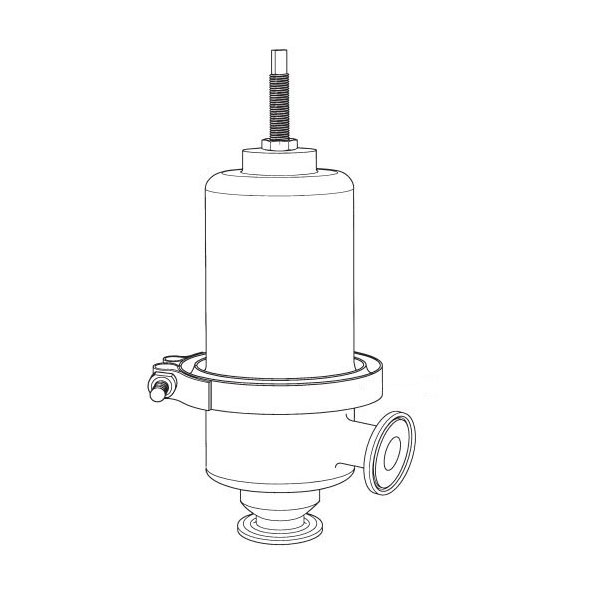

The Spirax Sarco® SRV6 is an angle pattern, sanitary pressure regulator with polished 316/316L stainless steel construction for use on clean steam, process liquids and gases.

To see a diagram and listing of available replacement parts for the Spirax Sarco 66870 regulator, visit our Spirax Sarco 66870 Sanitary Pressure Regulator Spare Parts page.

Spirax Sarco 66870, SRV6 Direct Operated Pressure Regulator, 1 in, Sanitary Clamp, 7 to 75 psi, 116 psi

CBPN:20685

MPN:66870

Price:
$8443.89 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Pressure Regulator, Direct Operated, 1 in Nominal, Sanitary Clamp, 7 to 75 psi, 116 psi Maximum, 347 deg F, 316L Stainless Steel, 12 in H

The Spirax Sarco® SRV6 is an angle pattern, sanitary pressure regulator with polished 316/316L stainless steel construction for use on clean steam, process liquids and gases.

To see a diagram and listing of available replacement parts for the Spirax Sarco 66870 regulator, visit our Spirax Sarco 66870 Sanitary Pressure Regulator Spare Parts page.

Specifications

BrandSpirax Sarco
Weight6.5lbs
End StyleSanitary Clamp
Material316L Stainless Steel
Nominal Size1 in
SeriesSRV6
Temperature Rating347 deg F
TypeDirect Operated
Maximum Pressure116 psi
Pressure Range7 to 75 psi
Dimensions12 in H
Manufacturer NameSpirax-Sarco Inc
ApplicationClean steam, Gas and liquid supplies to bioreactors, Centrifuges, Freeze dryers (lyophilizers), Sterilizers, Autoclaves, Process tanks, Production suites, Humidifiers and Culinary equipment
Standards and ApprovalsAISI 316L Body,ANSI Class III Shutoff

Item Features

  • All wetted parts mechanically polished to 20 micro inch RA then electro polished
  • 7 to 75 psi downstream control range
  • The SRV6 should not be used for line isolation, If line isolation is required, a suitable shut-off valve should be installed upstream of the SRV6
  • PTFE ring used for guiding pressure equalizing holes
  • Open inlet stop valve slowly to avoid damage
  • 232 psig Maximum allowable pressure
