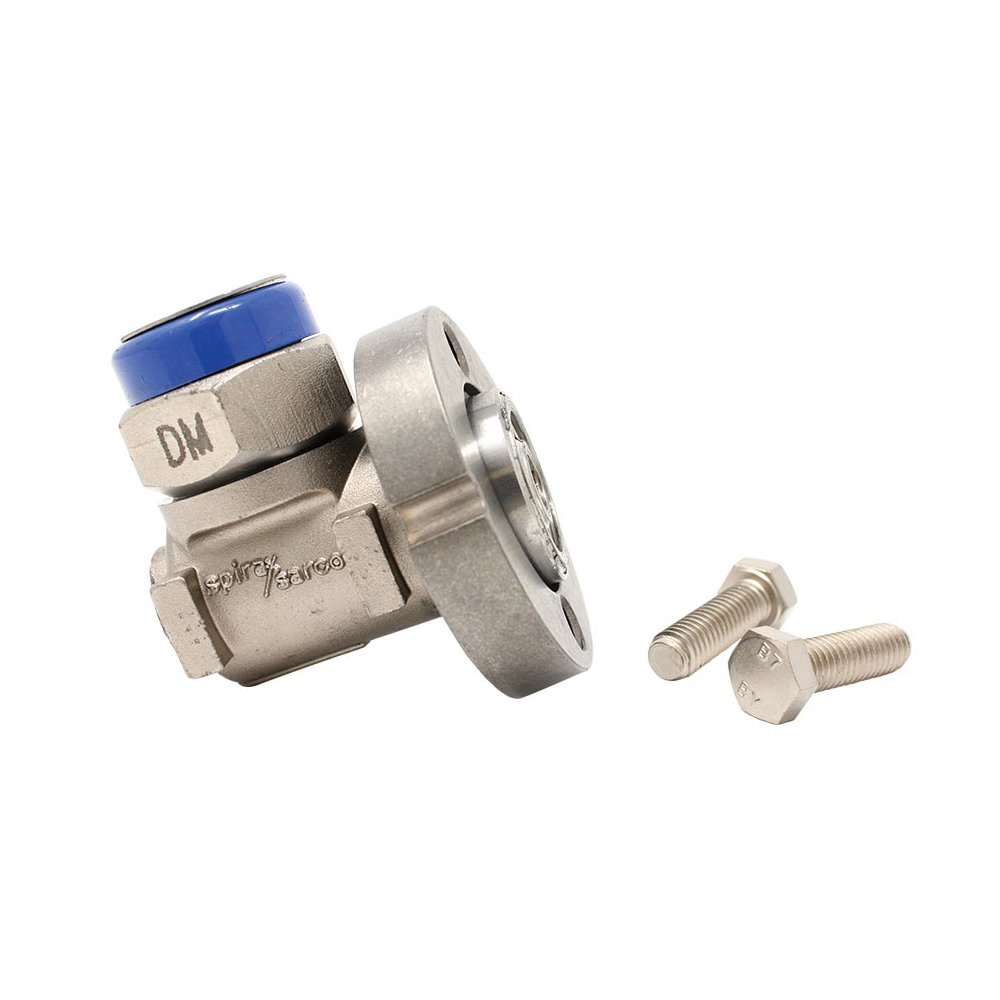

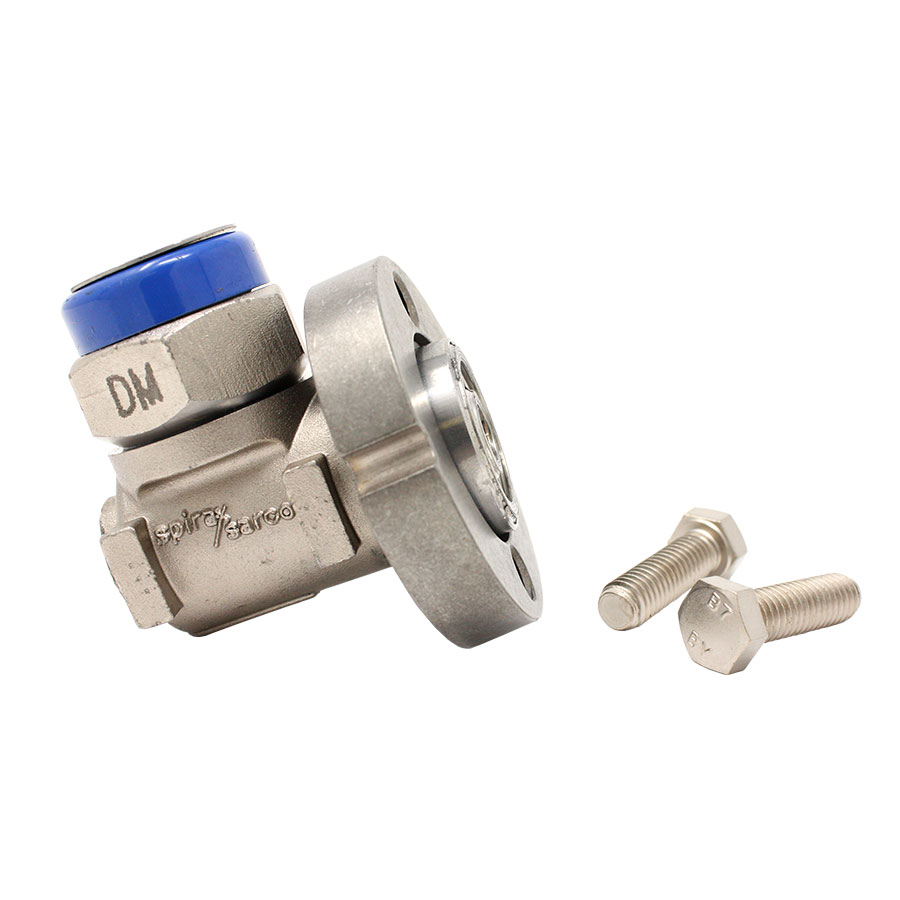

Spirax Sarco UTD52L Steam Trap

Spirax Sarco 66173C, UTD52L Universal Low Capacity Thermo-Dynamic Steam Trap, 750 deg F, 600 psig, Stainless Steel

CBPN:7597

MPN:66173C

Price:
$414.96 / EA

DESCRIPTION

Spirax Sarco Thermo-Dynamic Steam Trap, Universal Low Capacity, 600 psig, Stainless Steel, Cool Blue, 750 deg F

Steam trap shall be supplied with a pipeline connector which, once installed, remains in the line permanently. Trap shall be attached to the connector by two bolts to enable simple and rapid installation and replacement. The connection is designed to allow installation on pipework that is vertical, horizontal, or any angle in between. Operation shall be on/off discharge with tight shut off and no bleed or "controlled" leak, with back pressures up to 80% of inlet pressure. When specified, the connector shall be provided with integral "Y" pattern strainer with or without integral blowdown valve, standard or left hand pattern. The trap itself shall be Thermo-Dynamic® disc type of stainless steel construction and integral seat design with hardened disc and seating surface. Cap to have integral ceramic insulator with stainless steel cover.

Spirax Sarco 66173C, UTD52L Universal Low Capacity Thermo-Dynamic Steam Trap, 750 deg F, 600 psig, Stainless Steel

CBPN:7597

MPN:66173C

Price:
$414.96 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Thermo-Dynamic Steam Trap, Universal Low Capacity, 600 psig, Stainless Steel, Cool Blue, 750 deg F

Steam trap shall be supplied with a pipeline connector which, once installed, remains in the line permanently. Trap shall be attached to the connector by two bolts to enable simple and rapid installation and replacement. The connection is designed to allow installation on pipework that is vertical, horizontal, or any angle in between. Operation shall be on/off discharge with tight shut off and no bleed or "controlled" leak, with back pressures up to 80% of inlet pressure. When specified, the connector shall be provided with integral "Y" pattern strainer with or without integral blowdown valve, standard or left hand pattern. The trap itself shall be Thermo-Dynamic® disc type of stainless steel construction and integral seat design with hardened disc and seating surface. Cap to have integral ceramic insulator with stainless steel cover.

Specifications

BrandSpirax Sarco
Weight2.8 lbs
End StyleUniversal Connector
MaterialStainless Steel
Max Operating Pressure450 psig
Max Allowable Pressure450 psig/up to 750 deg F
Max Allowable Temperature750 deg F/up to 450 psig
ColorCool Blue
Manufacturer NameSpirax-Sarco Inc
SeriesUTD52L
TypeUniversal Low Capacity
ApplicationSteam main drainage and Steam tracing and constant pressure/constant load applications
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A743 Grade CA40F Body

Item Features

  • Maximum back pressure should not exceed 80% of the upstream pressure
  • Maximum allowable pressure: 600 psig at 750 deg F
  • Maximum allowable temperature: 750 deg F at 600 psig
  • Designed for a maximum cold hydraulic test pressure of 1080 psig
  • Horizontal or vertical installation
  • Note:  Requires universal pipeline connector for installation
