Spirax Sarco 62395, 25MT Direct Acting Temperature Regulator, 1/2 in, FNPT End Style, 250 psig, Cast Iron Body, Domestic
CBPN: 49480
MPN:62395
Price:
$192.92 / EA
DESCRIPTION
Spirax Sarco Temperature Regulator, Direct Acting, Series: 25MT, 1/2 in Nominal, NPT End Style, 250 psig Pressure, 450 deg F Operating, Media: Steam, Cast Iron Body, Stainless Steel Softgoods, 8.06 in H Dimensions

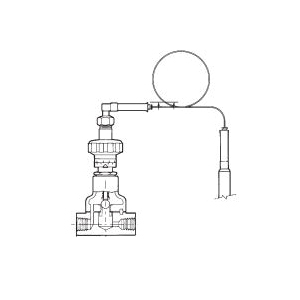

The 25 MT is a self-actuated temperature control valve with a calibrated dial for accurate temperature setting. A variety of solid-fill sensing bulbs are available (see TI-1-1123-US). The standard capillary tubing length is 8 feet, with an optional standard length of 15 feet.
Spirax Sarco 62395, 25MT Direct Acting Temperature Regulator, 1/2 in, FNPT End Style, 250 psig, Cast Iron Body, Domestic
CBPN: 49480
MPN:62395
Price:
$192.92 / EA
DESCRIPTION
Spirax Sarco Temperature Regulator, Direct Acting, Series: 25MT, 1/2 in Nominal, NPT End Style, 250 psig Pressure, 450 deg F Operating, Media: Steam, Cast Iron Body, Stainless Steel Softgoods, 8.06 in H Dimensions
The 25 MT is a self-actuated temperature control valve with a calibrated dial for accurate temperature setting. A variety of solid-fill sensing bulbs are available (see TI-1-1123-US). The standard capillary tubing length is 8 feet, with an optional standard length of 15 feet.
Specifications
Brand: Spirax Sarco
Weight: 1.4 lbs
Nominal Size: 1/2 in
End Style: FNPT
Temperature Rating: 450 deg F Operating
Pressure Rating: 250 psig
Body Material: Cast Iron
Dimensions: 8.06 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Steam
Series: 25MT
Softgoods Material: Stainless Steel
Type: Direct Acting
Application: Small storage steam water heaters, instantaneous heat exchangers and converters, air handling coils, tank heating coils, steam jacketed vessels, steam chests, molds and platens.
Standards and Approvals: ASTM A 126 Class B Body
Item Features
- Horizontal installation
- The temperature of the sensing bulb must not exceed 350 deg F
- Maximum allowable pressure: 250 psig/0 to 450 deg F
- Maximum allowable temperature: 450 deg F/0 to 250 psig
