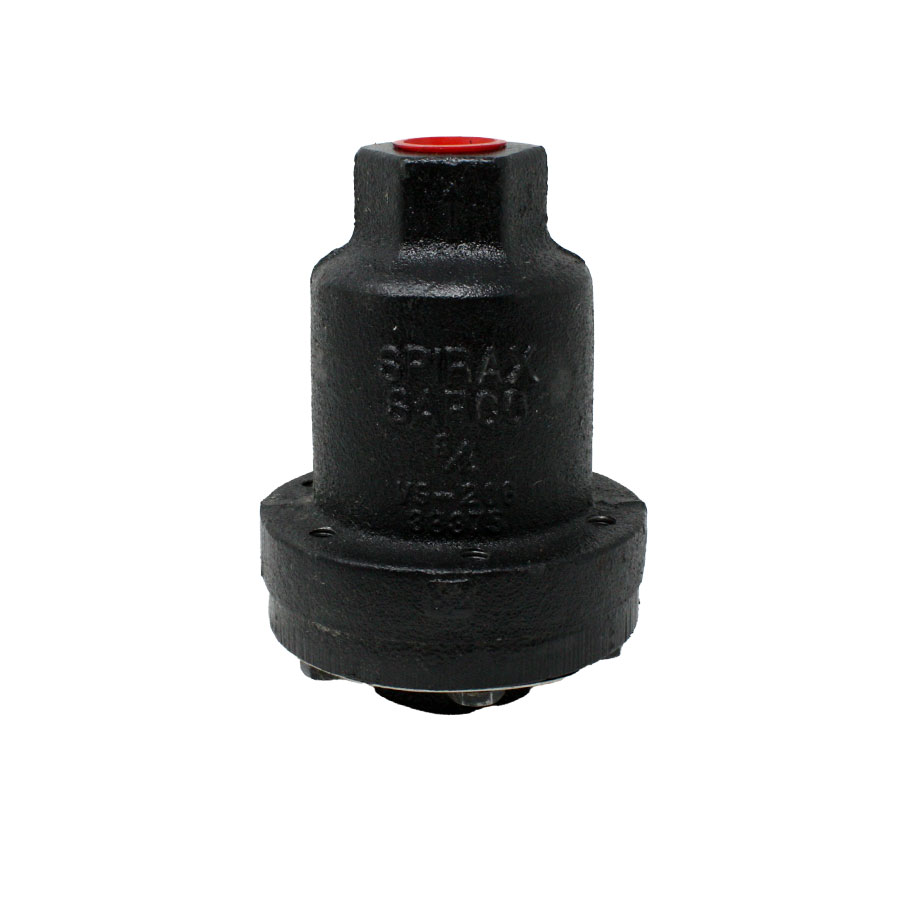

Spirax Sarco 62094, VS 206 Balanced Pressure Thermostatic Air Vent, 3/4 in FNPT Connection, 250 psig, Cast Iron
CBPN: 14041
MPN:62094
Price:
$565.11 / EA
DESCRIPTION
Spirax Sarco Thermostatic Air Vent, Balanced Pressure, 3/4 in NPT, 250 psig, Cast Iron, 5-1/2 in H
The VS204 and VS206 air vents are designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation.
Spirax Sarco 62094, VS 206 Balanced Pressure Thermostatic Air Vent, 3/4 in FNPT Connection, 250 psig, Cast Iron
CBPN: 14041
MPN:62094
Price:
$565.11 / EA
DESCRIPTION
Spirax Sarco Thermostatic Air Vent, Balanced Pressure, 3/4 in NPT, 250 psig, Cast Iron, 5-1/2 in H
The VS204 and VS206 air vents are designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation.
Specifications
Brand: Spirax Sarco
Weight: 5 lbs
Connection Type: FNPT
Pressure Rating: 250 psig
Material: Cast Iron
Dimensions: 5-1/2 in H
Manufacturer Name: Spirax-Sarco Inc
Series: VS 206
Type: Balanced Pressure
Application: For installation at end of all steam mains and headers, On all steam equipment such as air coils, Heat exchangers, Autoclaves, Sterilizers, Platen presses, Rotating cylinders, Jacketed kettles, Laundry equipment and Reboilers
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Body
Item Features
- Maximum allowable pressure: 250 psig up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- Stainless steel internals
