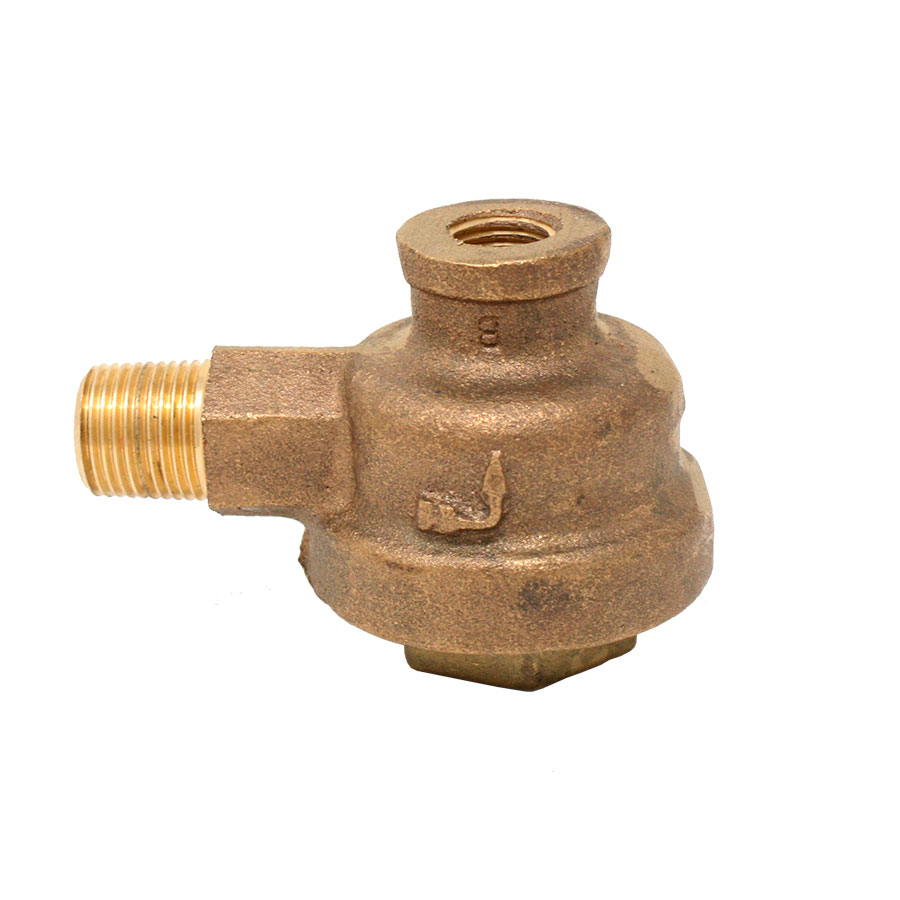

Spirax Sarco 61292 T202 Steam Air Vent, NPT Connection, 125 psig Pressure, Brass
CBPN:7484
MPN:61292
Price:
$244.79 / EA
DESCRIPTION
Spirax Sarco Steam Air Vent, NPT, 125 psig, Brass, 2.1 in L x 2.9 in H
The T202 air vent is designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation.
Spirax Sarco 61292 T202 Steam Air Vent, NPT Connection, 125 psig Pressure, Brass
CBPN:7484
MPN:61292
Price:
$244.79 / EA
DESCRIPTION
Spirax Sarco Steam Air Vent, NPT, 125 psig, Brass, 2.1 in L x 2.9 in H
The T202 air vent is designed for use on steam systems to remove air and other non-condensable gases, which may impair heat transfer during start-up and normal operation.
Specifications
Brand: Spirax Sarco
Weight: 0.8 lbs
Connection Type: NPT
Pressure Rating: 125 psig
Material: Brass
Dimensions: 2.1 in L x 2.9 in H
Manufacturer Name: Spirax-Sarco Inc
Application: For installation at end of all steam mains and headers, On all steam equipment such as air coils, Heat exchangers, Autoclaves, Sterilizers, Platen presses, Rotating cylinders, Jacketed kettles, Laundry equipment and Reboilers
Country of Origin: US
Standards and Approvals: ASTM B62 Body
Item Features
- Maximum allowable pressure: 125 psig
- Maximum allowable temperature: 353 deg F at 0 to 125 psig
- Stainless steel internals
