Spirax Sarco DCV10 Oulet Check Valve Internals

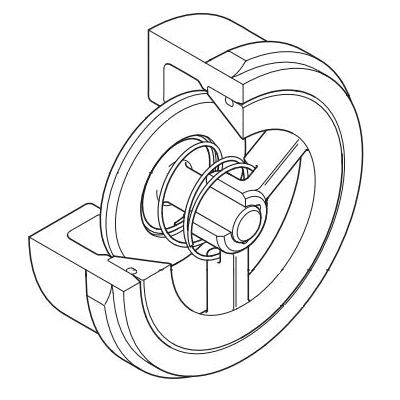

Spirax Sarco 6018200, DCV10 Disc Check Valve, 1-1/2 in, Flanged, Austenitic Stainless Steel Body, FEPM Softgoods

CBPN:127247

MPN:6018200

Price:
$945.49 / EA

DESCRIPTION

Spirax Sarco Check Valve, Disc, 1-1/2 in Nominal, Flanged, 718 psig, 14 to 392 deg F, 1.9 in Inlet to Outlet Length, Austenitic Stainless Steel Body, FEPM Softgoods

The DCV10 disc check valve has been designed specifically for use with Spirax Sarco's APT14HC and APT14SHC automatic pump-traps. The check valve ensures the correct flow of condensate and other suitable fluids through these condensate pumps and also prevents reverse flow.

Spirax Sarco 6018200, DCV10 Disc Check Valve, 1-1/2 in, Flanged, Austenitic Stainless Steel Body, FEPM Softgoods

CBPN:127247

MPN:6018200

Price:
$945.49 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Check Valve, Disc, 1-1/2 in Nominal, Flanged, 718 psig, 14 to 392 deg F, 1.9 in Inlet to Outlet Length, Austenitic Stainless Steel Body, FEPM Softgoods

The DCV10 disc check valve has been designed specifically for use with Spirax Sarco's APT14HC and APT14SHC automatic pump-traps. The check valve ensures the correct flow of condensate and other suitable fluids through these condensate pumps and also prevents reverse flow.

Specifications

BrandSpirax Sarco
Weight1.8lbs
Body MaterialAustenitic Stainless Steel
End StyleFlanged
Nominal Size1-1/2 in
Temperature Rating14 to 392 deg F
TypeDisc
Pressure Rating718 psig
Softgoods MaterialFEPM
Inlet to Outlet Length1.9 in
Manufacturer NameSpirax-Sarco Inc
Standards and ApprovalsA351 CF8,BS EN 14341:2006,EN 10204,EN 12266-1:2003 Rate F,European Pressure Equipment Directive 97/23/EC

Item Features

  • Effective minimal maintenance free solutions
  • Preventing reverse flow in pipelines
  • Compact design
  • Used on APT14HC and APT14SHC automatic pump traps
  • Austenitic stainless steel disc
  • 30 Cv flow coefficient
  • Class 300 body design condition
  • Maximum allowable pressure: 719 psig at 32 deg F
  • Maximum allowable temperature: 392 deg F at 500 psig
  • Maximum cold hydraulic test pressure: 1079 psig
  • FEPM O-ring
  • ANSI 300 flanged connection
