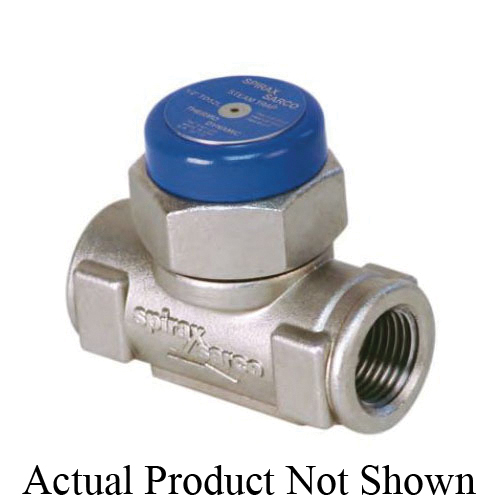

Spirax Sarco 59314C Steam Trap

Spirax Sarco Thermo-Dynamic® 59314C, TD52L Steam Trap, 3/4 in, NPT, 800 deg F, 600 psi, Stainless Steel

CBPN:7476

MPN:59314C

Price:
$576.94 / EA

DESCRIPTION

Spirax Sarco Thermo-Dynamic® Steam Trap, 3/4 in Nominal, NPT, 2.8 in Length, 600 psi, Stainless Steel, Electroless Nickel Plated, 800 deg F, 1.8 in W

The Thermo-Dynamic® steam trap cycles periodically to discharge condensate very near to steam temperature, it is unaffected by water hammer or superheat.

Spirax Sarco Thermo-Dynamic® 59314C, TD52L Steam Trap, 3/4 in, NPT, 800 deg F, 600 psi, Stainless Steel

CBPN:7476

MPN:59314C

Price:
$576.94 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Thermo-Dynamic® Steam Trap, 3/4 in Nominal, NPT, 2.8 in Length, 600 psi, Stainless Steel, Electroless Nickel Plated, 800 deg F, 1.8 in W

The Thermo-Dynamic® steam trap cycles periodically to discharge condensate very near to steam temperature, it is unaffected by water hammer or superheat.

Specifications

BrandSpirax Sarco
Weight1.4 lbs
Nominal Size3/4 in
End StyleFNPT
MaterialStainless Steel
Max Operating Pressure600 psig
Max Allowable Pressure600 psig/up to 800 deg F
Max Allowable Temperature800 deg F/up to 600 psig
Dimensions1.8 in W
FinishElectroless Nickel Plated
Length2.8 in
Manufacturer NameSpirax-Sarco Inc
SeriesTD52L
ApplicationFor Steam main drainage and tracer lines, process equipment, laundry and kitchen equipment, superheated steam applications, outdoor installations subject to freezing
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A743 Grade CA40F Body

Item Features

  • Caution: only perform maintenance after trap has been isolated
  • Minimum pressure for satisfactory operation is 3.5 psi
  • Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
  • 600 psig at 800 deg F Maximum allowable pressure
  • 800 deg F at 0 to 600 psig Maximum allowable temperature
  • Inline horizontal piping configuration
