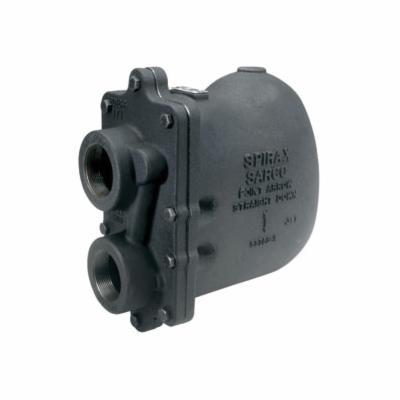

Spirax Sarco 58480, FT-150 Float and Thermostatic Steam Trap, 1 in, FNPT, 450 deg F, 150 psi, Cast Iron
CBPN: 7524
MPN:58480
Price:
$1308.58 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 1 in Nominal, FNPT, 8-1/2 in Length, 150 psi, Cast Iron, 450 deg F, 6.9 in H x 3.9 in W
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature, while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent.
Spirax Sarco 58480, FT-150 Float and Thermostatic Steam Trap, 1 in, FNPT, 450 deg F, 150 psi, Cast Iron
CBPN: 7524
MPN:58480
Price:
$1308.58 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, 1 in Nominal, FNPT, 8-1/2 in Length, 150 psi, Cast Iron, 450 deg F, 6.9 in H x 3.9 in W
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature, while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent.
Specifications
Brand: Spirax Sarco
Weight: 15 lbs
Nominal Size: 1 in
End Style: FNPT
Max Operating Pressure: 150 psig
Max Allowable Pressure: 200 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 200 psig
Material: Cast Iron
Dimensions: 6.9 in H x 3.9 in W
Length: 8-1/2 in
Manufacturer Name: Spirax-Sarco Inc
Series: FT150
Application: All process equipment, particularly when controlled by modulating temperature control valves, also for unit heaters, air heating coils, heat exchangers and steam main drip stations
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 200 psig at 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 200 psig Maximum allowable temperature
- Parallel piping configuration
- Stainless steel internals
Spirax Sarco 58480 Spare Parts
CBPN:
20749
MPN:
80087
Check Availability
Price:
$985.00 / EA
CBPN:
20750
MPN:
55481
In Stock: 11
Price:
$140.00 / EA
CBPN:
7683
MPN:
55447
In Stock: 32
Price:
$271.00 / EA
CBPN:
7686
MPN:
62652
In Stock: 140
Price:
$314.00 / EA
