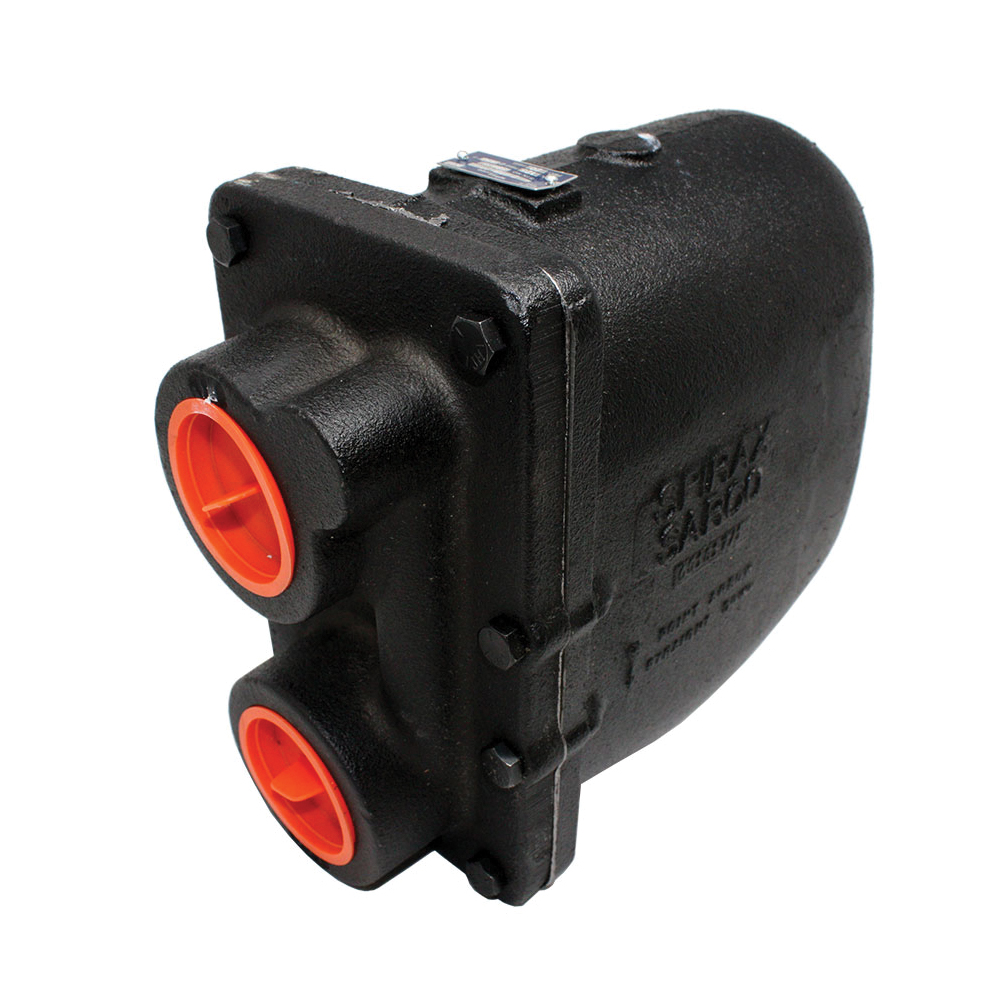

Spirax Sarco 58476, FTB-20 Super Capacity Float and Thermostatic Steam Trap, 2 in, FNPT, 450 deg F, 20 psi, Cast Iron
CBPN: 7318
MPN:58476
Price:
$2431.52 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, Super Capacity, Series: FTB Series, 2 in Nominal, FNPT, 12.2 in Length, 20 psi, Cast Iron, 450 deg F, 10.7 in H
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature. Noncondensible gases are released by a separate internal balanced pressure thermostatic air vent.
Spirax Sarco 58476, FTB-20 Super Capacity Float and Thermostatic Steam Trap, 2 in, FNPT, 450 deg F, 20 psi, Cast Iron
CBPN: 7318
MPN:58476
Price:
$2431.52 / EA
DESCRIPTION
Spirax Sarco Float and Thermostatic Steam Trap, Super Capacity, Series: FTB Series, 2 in Nominal, FNPT, 12.2 in Length, 20 psi, Cast Iron, 450 deg F, 10.7 in H
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature. Noncondensible gases are released by a separate internal balanced pressure thermostatic air vent.
Specifications
Brand: Spirax Sarco
Weight: 38 lbs
Nominal Size: 2 in
End Style: FNPT
Max Operating Pressure: 20 psig
Max Allowable Pressure: 125 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/up to 125 psig
Material: Cast Iron
Dimensions: 10.7 in H
Length: 12.2 in
Manufacturer Name: Spirax-Sarco Inc
Series: FTB Series
Type: Super Capacity
Application: All process heat exchange equipment, Particularly when controlled by modulating temperature control valves, Unit heaters and Air heating coils
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Stainless steel internals
- Maximum allowable pressure: 125 psig at up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 125 psig
Spirax Sarco 58476 Spare Parts
CBPN:
7447
MPN:
58159
In Stock: 12
Price:
$373.00 / EA
CBPN:
9908
MPN:
55479
In Stock: 17
Price:
$230.00 / EA
CBPN:
14995
MPN:
58152
In Stock: 3
Price:
$1668.00 / EA
CBPN:
7686
MPN:
62652
In Stock: 147
Price:
$329.00 / EA
CBPN:
419758
MPN:
76770
Check Availability
Price:
$463.19 / EA
