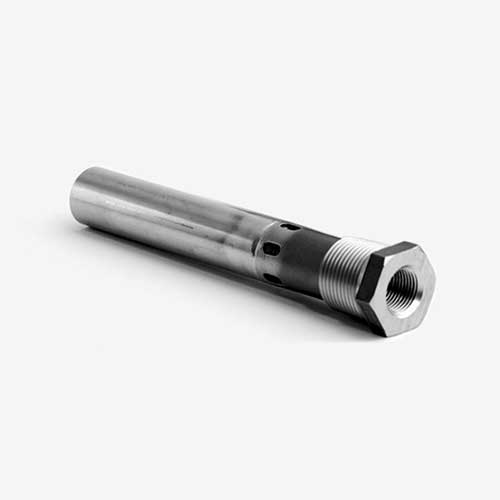

Spirax Sarco 4014390 IN15 Steam Injector, 1/2 in Nominal, NPT Connection, 250 psig Pressure, 190 deg F, 316L Austenitic Stainless Steel Body
CBPN:36500
MPN:4014390
Price:
$1033.76 / EA
DESCRIPTION
Spirax Sarco Steam Injector, 1/2 in Nominal, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body, 1.81 Valve Cv, 8.2 in L
Spirax Sarco steam injectors use steam to raise the temperature of water or other liquids. They work by using a jet of steam to draw in the liquid through radial ports, mix it, and distribute the heated liquid throughout the tank vessel. The circulation induced by the injector ensures thorough mixing and avoids temperature stratification. Three sizes of injectors are available to suit a wide range of applications.
Spirax Sarco 4014390 IN15 Steam Injector, 1/2 in Nominal, NPT Connection, 250 psig Pressure, 190 deg F, 316L Austenitic Stainless Steel Body
CBPN:36500
MPN:4014390
Price:
$1033.76 / EA
DESCRIPTION
Spirax Sarco Steam Injector, 1/2 in Nominal, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body, 1.81 Valve Cv, 8.2 in L
Spirax Sarco steam injectors use steam to raise the temperature of water or other liquids. They work by using a jet of steam to draw in the liquid through radial ports, mix it, and distribute the heated liquid throughout the tank vessel. The circulation induced by the injector ensures thorough mixing and avoids temperature stratification. Three sizes of injectors are available to suit a wide range of applications.
Specifications
Brand: Spirax Sarco
Weight: 1lbs
Body Material: 316L Austenitic Stainless Steel
Nominal Size: 1/2 in
Temperature Rating: 190 deg F
Connection Type: NPT
Pressure Rating: 250 psig
Dimensions: 8.2 in L
Valve Type: BX6
Controller Type: 128
Manufacturer Name: Spirax-Sarco Inc
Number of Injectors: 1
Valve Cv: 1.81
Country of Origin: US
Item Features
- 350 psig (PN25) body design rating
- Maximum saturated steam pressure: 250 psig at 400 deg F
- Ideal for boiler feedtank heating of water and other fluids
- Heats, mixes and circulates no moving parts
- Compact design minimizes noise and vibration
