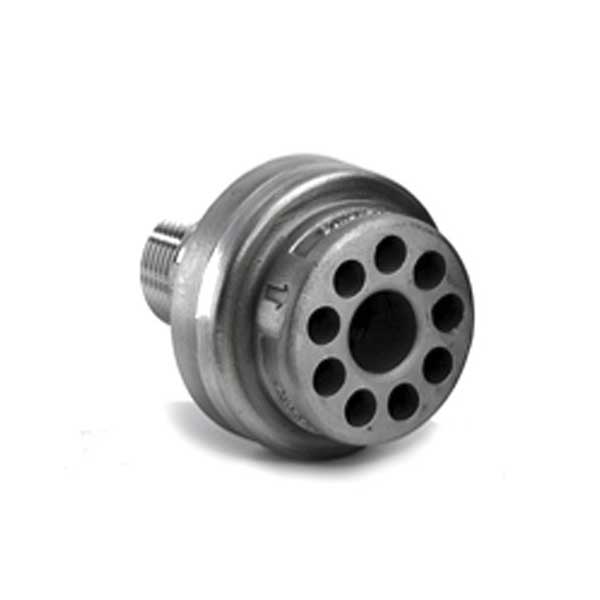

Spirax Sarco 4014097, IN25M Steam Injector, 1 in, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body
CBPN:44037
MPN:4014097
Price:
$1198.47 / EA
DESCRIPTION
Spirax Sarco Steam Injector, Series: IN25M, 1 in Nominal, NPT Connection, 250 psig Pressure, 190 deg F, 316L Austenitic Stainless Steel Body, 3.4 in L Dimensions
Spirax Sarco steam injectors use steam to raise the temperature of water or other liquids. They work by using a jet of steam to draw in the liquid through radial ports, mix it, and distribute the heated liquid throughout the tank vessel. The circulation induced by the injector ensures thorough mixing and avoids temperature stratification. Three sizes of injectors are available to suit a wide range of applications.
Spirax Sarco 4014097, IN25M Steam Injector, 1 in, NPT, 250 psig, 190 deg F, 316L Austenitic Stainless Steel Body
CBPN:44037
MPN:4014097
Price:
$1198.47 / EA
DESCRIPTION
Spirax Sarco Steam Injector, Series: IN25M, 1 in Nominal, NPT Connection, 250 psig Pressure, 190 deg F, 316L Austenitic Stainless Steel Body, 3.4 in L Dimensions
Spirax Sarco steam injectors use steam to raise the temperature of water or other liquids. They work by using a jet of steam to draw in the liquid through radial ports, mix it, and distribute the heated liquid throughout the tank vessel. The circulation induced by the injector ensures thorough mixing and avoids temperature stratification. Three sizes of injectors are available to suit a wide range of applications.
Specifications
Brand: Spirax Sarco
Weight: 3.5lbs
Body Material: 316L Austenitic Stainless Steel
Nominal Size: 1 in
Series: IN25M
Temperature Rating: 190 deg F
Connection Type: MNPT
Pressure Rating: 250 psig
Dimensions: 3.4 in L
Valve Type: SB
Controller Type: 121
Manufacturer Name: Spirax-Sarco Inc
Number of Injectors: 1
Valve Cv: 10.7
Domestic/Import: Domestic
Country of Origin: US
Item Features
- 350 psig (PN25) body design rating
- Maximum saturated steam pressure: 250 psig at 400 deg F
- Ideal for boiler feedtank heating of water and other fluids
- Heats, mixes and circulates no moving parts
- Compact design : minimizes noise and vibration
